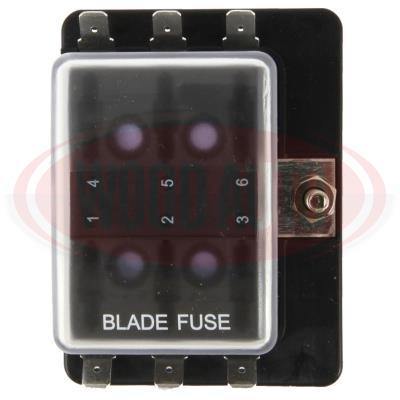

6 Way Led Blade Fuse Box Holder 12V / 24V Standard Ato Circuit Wood Auto Fuh1731L

6 Way Led Blade Fuse Box Holder 12V / 24V Standard Ato Circuit Wood Auto Fuh1731L

FUH1731L

• Max Rating 100A
• LED Standard Blade Fuse Box, 6-way
• Blade terminal connections: 6 x 6.3mm

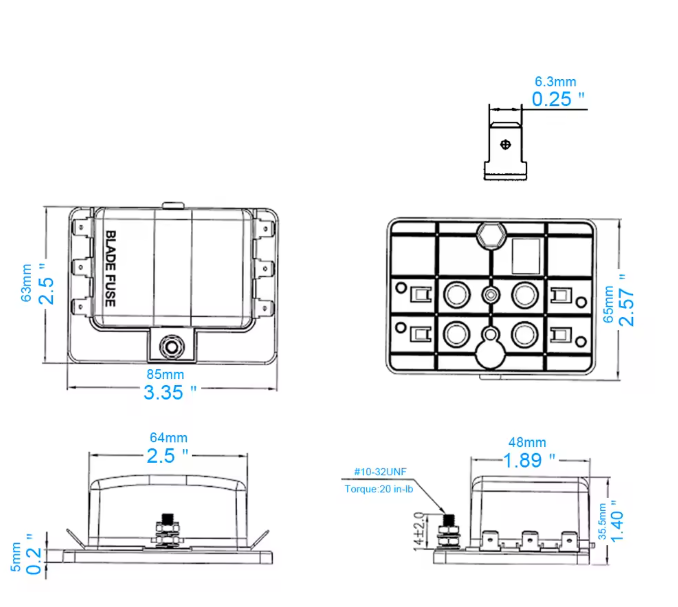

• H:35 x W:65 x D:85mm
• simply connect 1 main power cable to the stud at the front of the fuse box
• A Red LED indicator glows when the fuse has blown
• Voltage(Max.): 32VDC

• Input Terminial Rating: #10-32 threaded studs(100A max.)

• Output Terminial Rating: 30A max.per circuit

• Connection Pad Option Available: Input wire size:#4-6AWG

• Output wire size:#12-16 AWG

• Fuse Specifications: For Blade Fuses Used Only

• Torque Rating: 20 in-lb(2.25Nm)max

• Mounting Torque Rating: 8 in-lb(0.9Nm)max

• Temperature Rating: -20 degrees to 85 degrees )
