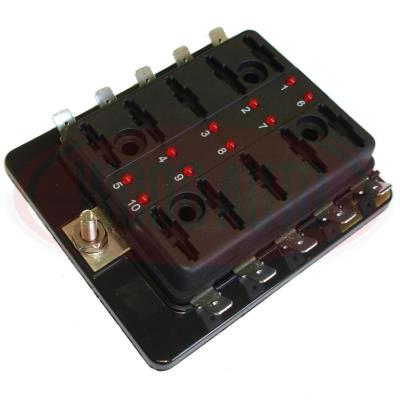

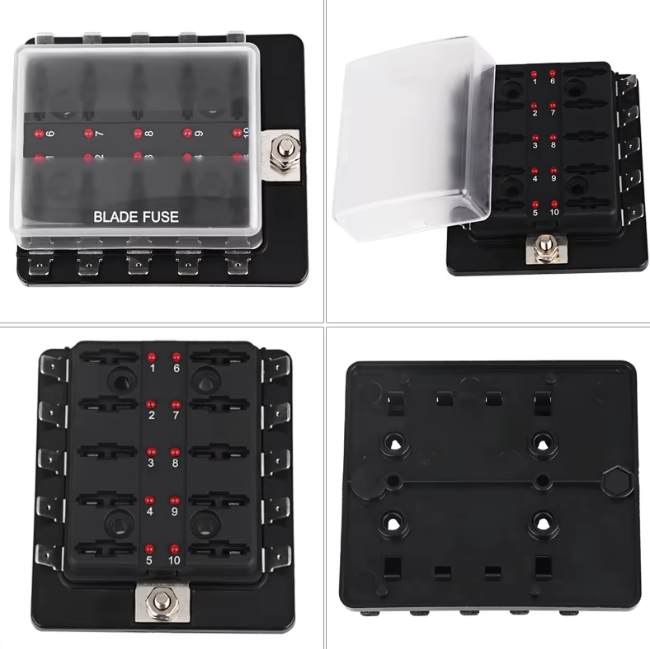

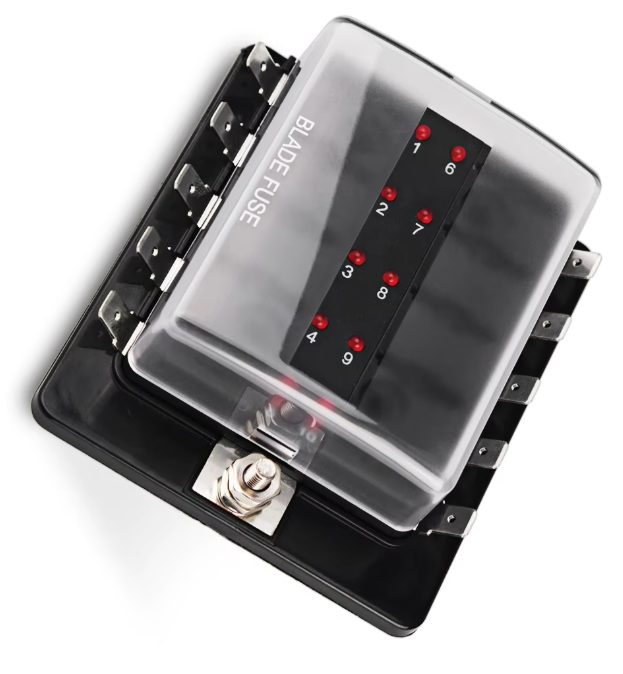

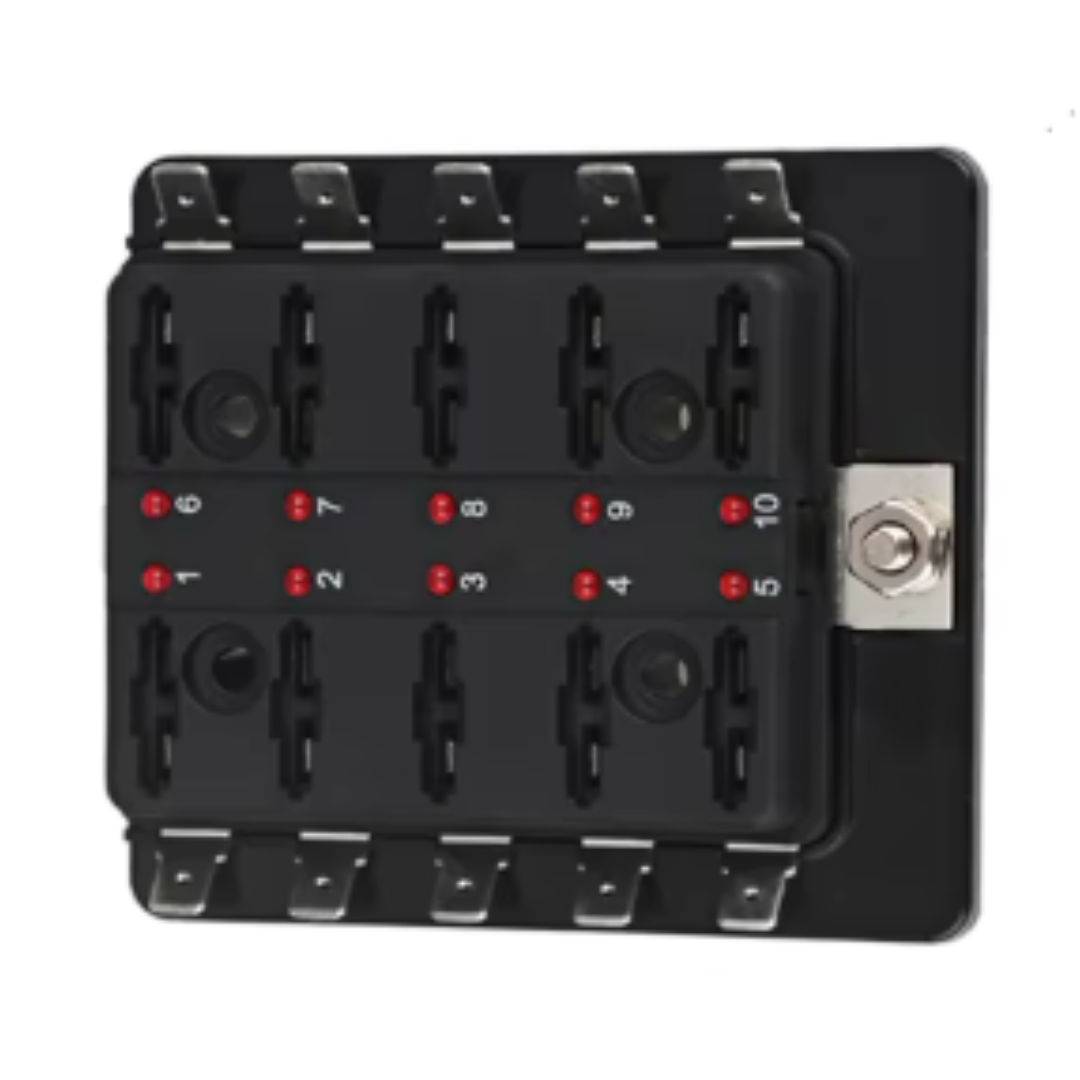

10 Way Led Blade Fuse Holder
- Max Rating 100A
- LED Standard Blade Fuse Box, 10-way
- Blade terminal connections: 10 x 6.3mm

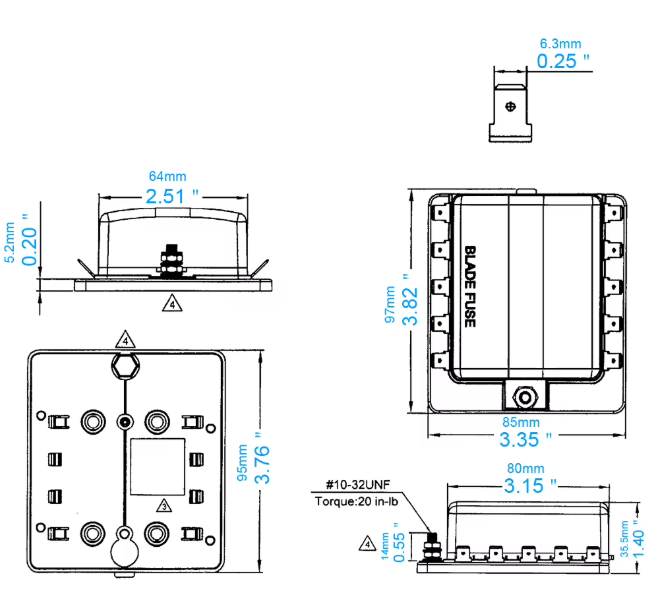

- H:35 x W:95 x D:85mm

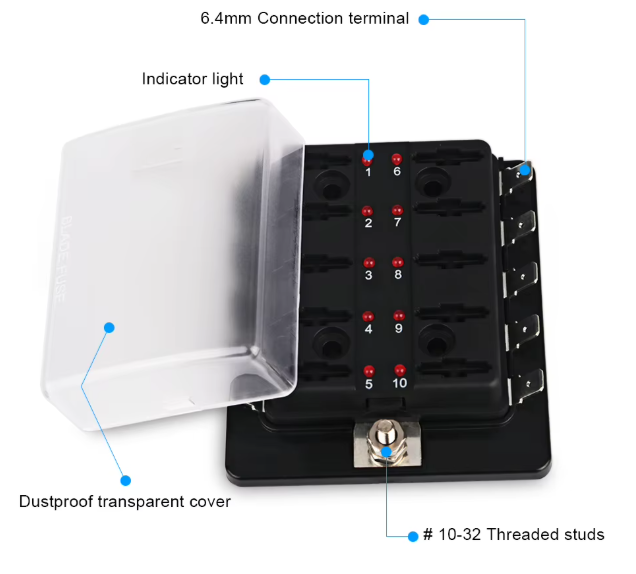

- simply connect 1 main power cable to the stud at the front of the fuse box

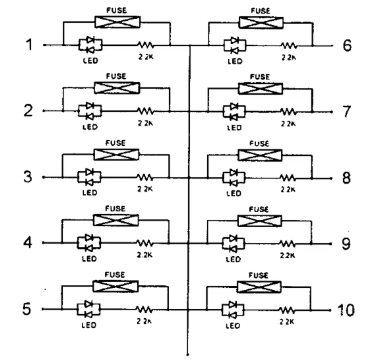

- A Red LED indicator glows when the fuse has blown
- Voltage(Max.): 32VDC
- Input Terminial Rating: #10-32 threaded studs(100A max.)
- Output Terminial Rating: 30A max.per circuit
- Connection Pad Option Available: Input wire size:#4-6AWG
- Output wire size:#12-16 AWG
- Fuse Specifications: For Blade Fuses Used Only
- Torque Rating: 20 in-lb(2.25Nm)max
- Mounting Torque Rating: 8 in-lb(0.9Nm)max
- Temperature Rating: -20 degrees to 85 degrees )
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
