Lucas Alternator Acr Large Repair Kit 15,16,17,18 Mob Lra100

Lucas Alternator Acr Large Repair Kit 15,16,17,18 Mob Lra100

Vendor:Mobiletron UK

Availability: Low stock: 2 left

Product Type:ACR Kit

Product Indentifier:788863058900

Regular price

£22.60 £18.83 ex VAT

Regular price £20.51 Sale price £18.83 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

REPAIR KIT REPLACES LUCAS TYPE ALTERNATORS LRA100 15 16 17 18 ACR ETC

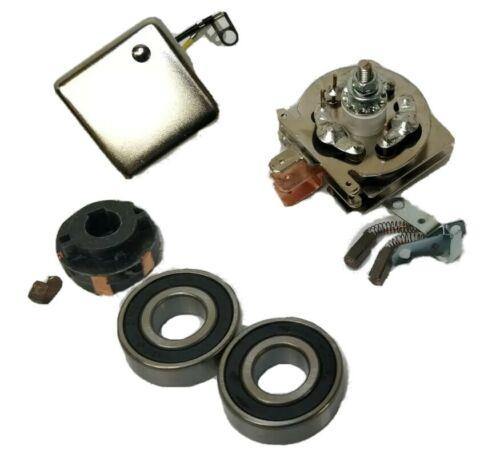

KIT CONTAINS:

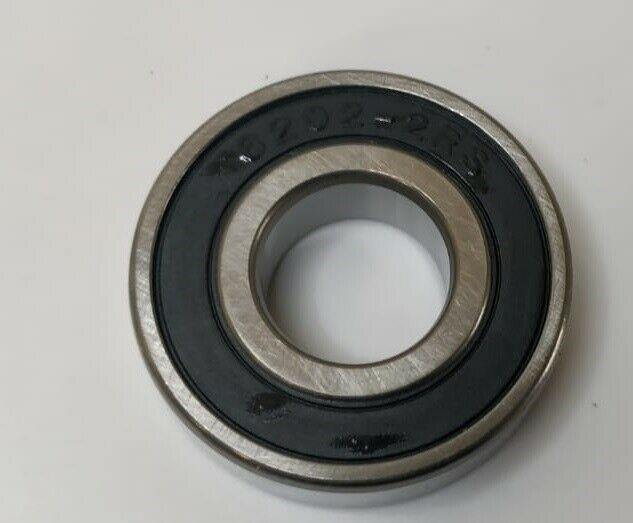

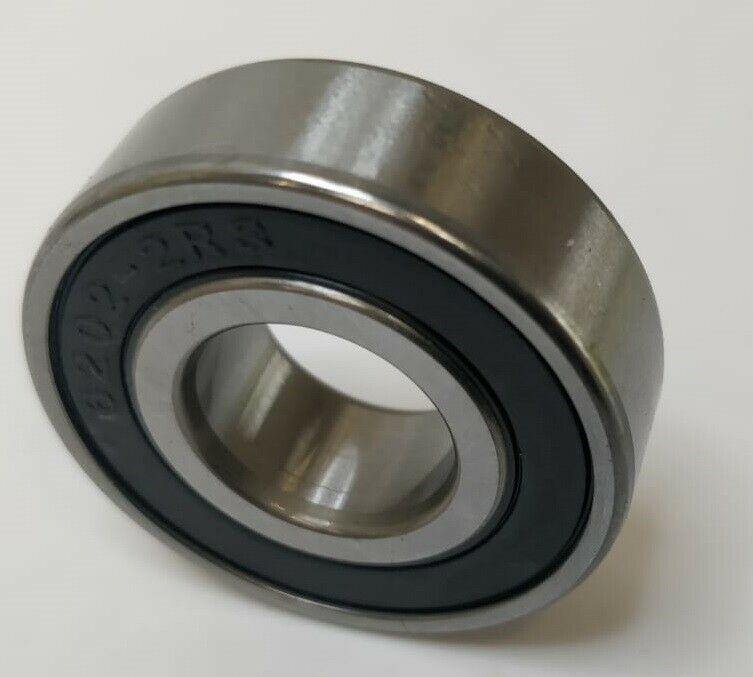

2 x BEARING = 6202 2rs (Wood Auto)

Physical specifications

  • A OD 35.00
  • B ID 15.00
  • C Height 1 11.00

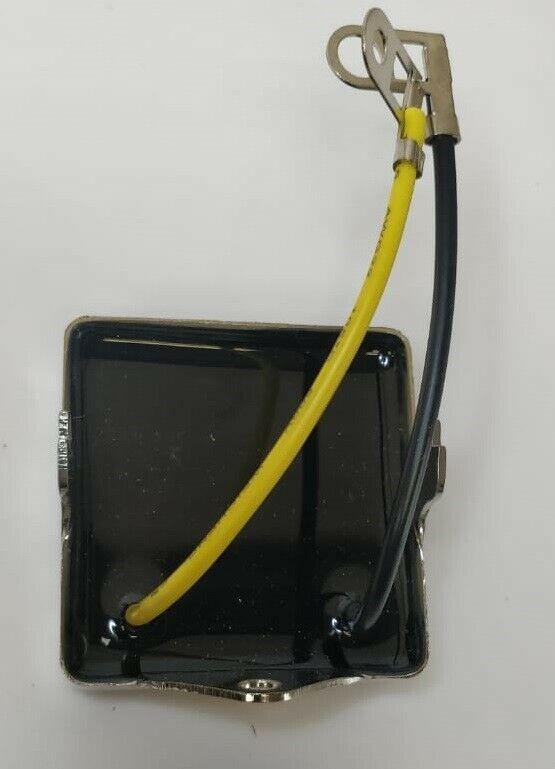

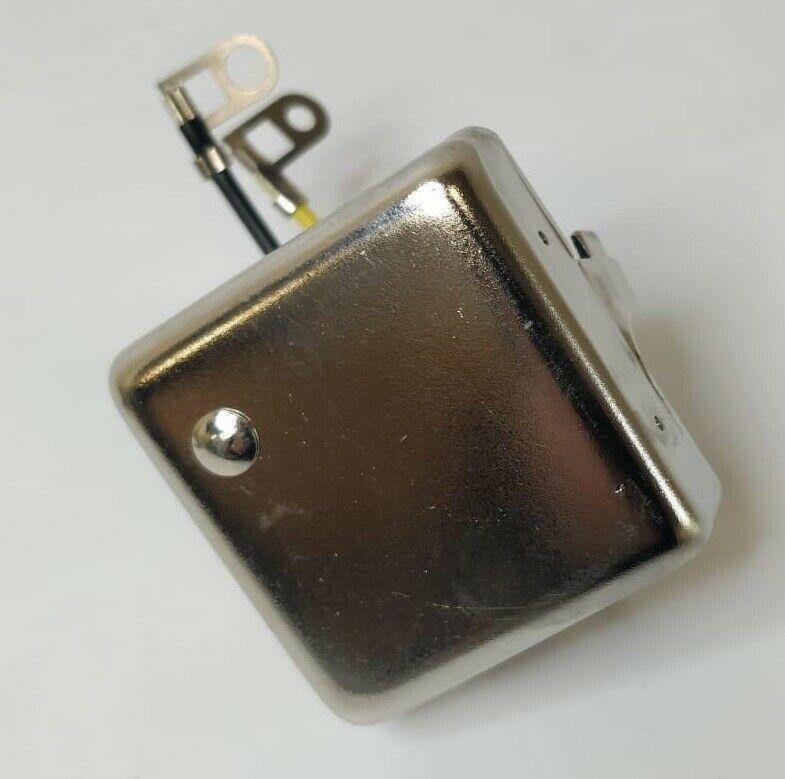

1 x REGULATOR = 130637 / Vr-lc100 (Mobiletron)

Electrical specifications

  • Voltage 14
  • Voltage setting 14.5

Further information

  • Servicing ACR

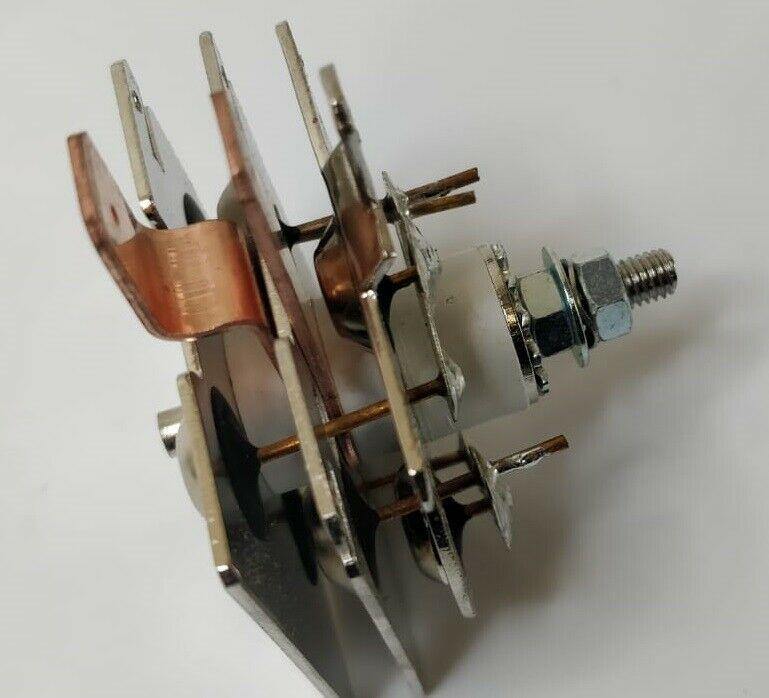

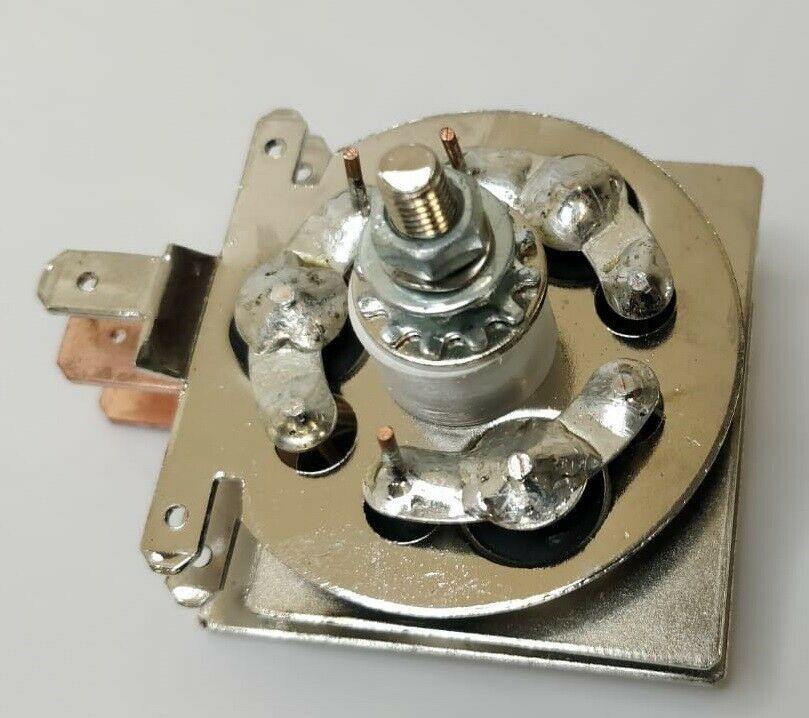

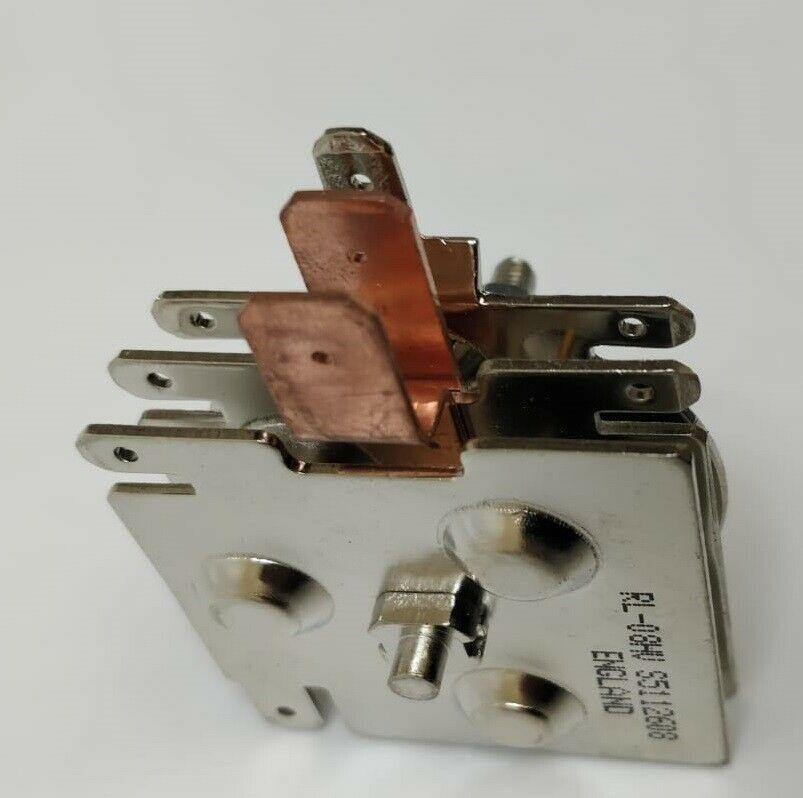

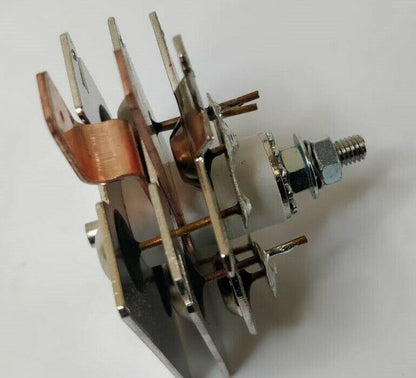

1 x RECTIFIER = 130643 / RL-08HV (Mobiletron)

Electrical specifications

  • Diode a 35

Physical specifications

  • B+ type Spade
  • A OD 115.00
  • Capacitor w/o
  • D+ type Spade
  • No. of diodes 6

Further information

  • Servicing ACR



1 x SLIP RING = 131342 / SLR3922 (Wood Auto)

Physical specifications

  • A ID 30.00
  • E Total length 17.00

Further information

  • Servicing ACR



1 x SET BRUSHES = LAX 31-322 ( Wood Auto)

Electrical specifications

  • Voltage 12

Physical specifications

  • A Length mm 12.70
  • B Thickness mm 4.60
  • C Height mm 4.60
  • Spring w/
  • Terminals w/
  • Conductor w/
  • No./brushes 2
  • D Lead length 1 19.00

Further information

  • Servicing ACR



SOME ACR'S USE A BIGGER 6302 FRONT ALTERNATOR BEARING

PLEASE CONTACT US IF YOU REQUIRE THE LARGER BEARING: 6302 2rs

Review

  • * All products come with 12 months warranty unless otherwise stated.
  • * Please contact us with any issues so we can provide a solution for you.

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Michael Conduit
used to rebuild original 15ACR

Parts arrived very quickly. Used large repair kit to rebuild an original 15ACR alternator with tight bearings and an intermittent electrical fault (no ignition light sometimes).. Getting the old corroded front bearing off the alternator shaft was difficult after 54 years of corrosion. I had to make a custom 3 leg puller and use temperature cycling between freezer and hot air gun. Once the front bearing was done,removing the rear bearing (with custom puller) and then reassembly with the new parts was straightforward. The original avalanche diode protection and interference protection capacitor were tested and then also refitted for completeness..The alternator is now back in the car and all working. Pleased with result.

J
John Greenwood
18ACR repair

Arrived really quickly. Good quality components. Would advise photographing wiring before commencing. Alternator now working better than before.

C
Christopher Cooper
ok, but take care!

Good kit, quickly sent, but take care with the slipring when installing on shaft, the hole may need attention as mine undersize and cracked when pressed on....

P
Peter
15 ACR Service Kit.

Arrived in good time, price good. Had to clear out slip ring hole a little so it would push onto end of armature. An instruction sheet would have been helpful as would have saved note taking, drawings and photographs. Nice to have a functioning alternator again.

L
Lar Cummins
ACR repair kit

Fast efficient dispatch and delivery all parts present and correct worked perfect, very happy with service. Lar
