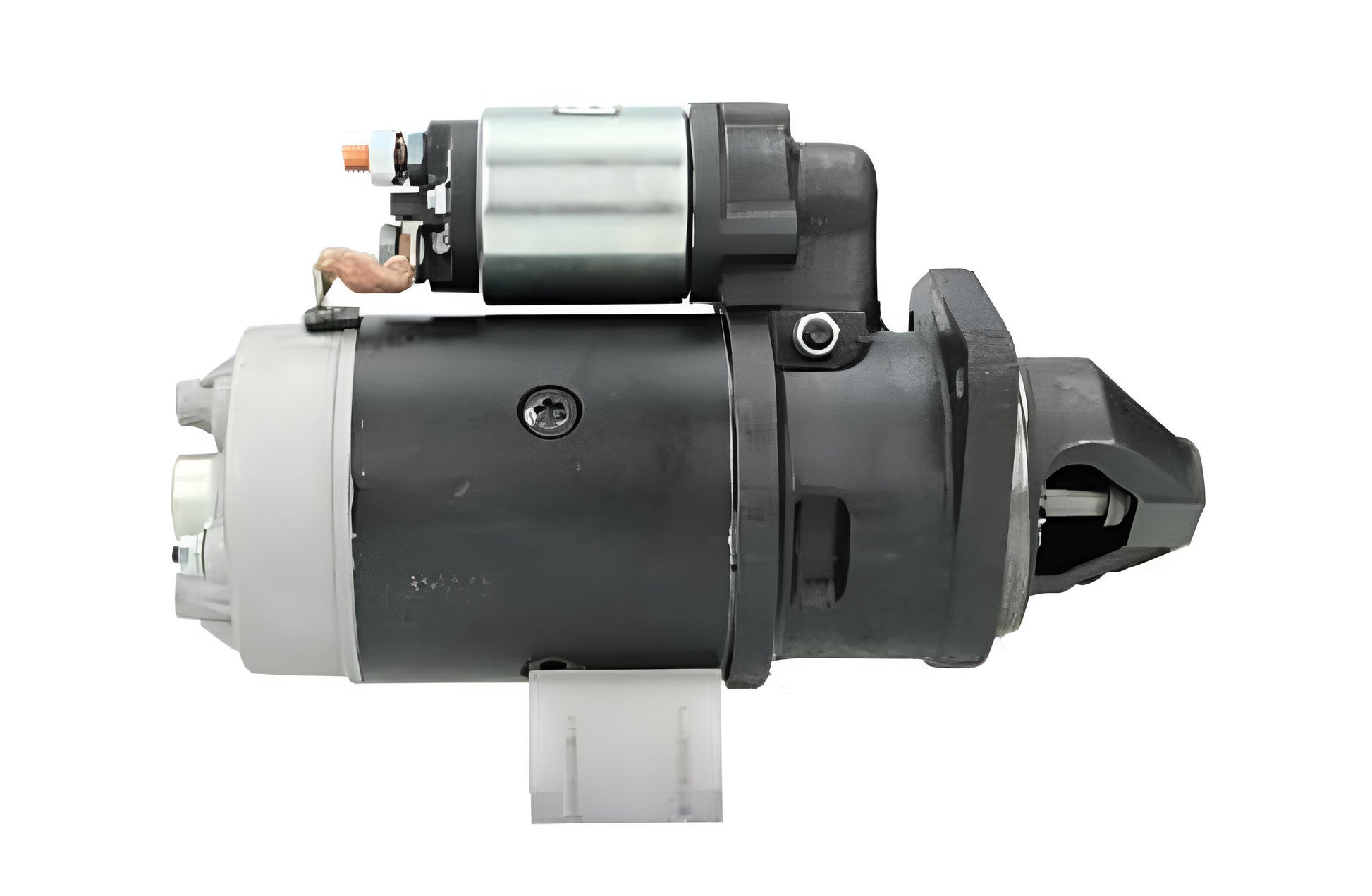

New 12V Starter Motor Fits: Renault, Fendt Tractor Replaces Bosch Type 12V 9 Teeth 2.7Kw 111332 / STR22088

STARTER MOTOR 9 TEETH 12 VOLT 2.7 Kilowatt Fits Various Renault, Case, Fendt, Steyr Tractors 111332 / STR22088

111332

STR22088

Electrical information

• Voltage 12
• Kw 2.7

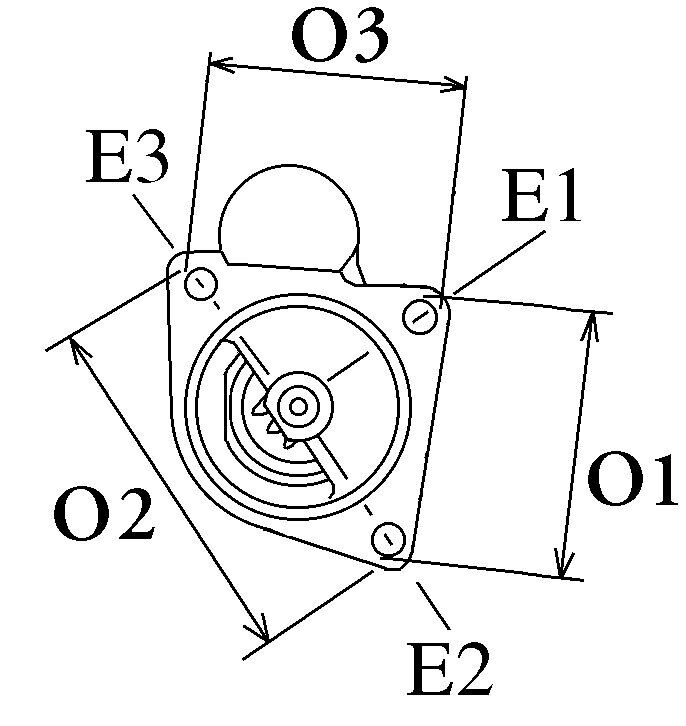

Physical information (See images to match measurements)

• H No./teeth 9
• P Rotation CW
• N Gear type DD
• A Mount. flange 89.00
• I B+ M8
• No./mount. holes 3 (0)
• B Drive dist. 21.00
• E Mount. hole 1 mm 11.50
• E Mount. hole 2 mm 11.50
• E Mount. hole 3 mm 11.50
• E Mount. hole 4 mm 11.50
• F Dist./back 228.95
• G Dist./front 65.00
• M Mount. bracket No
• O Dist. 2 89.70
• O Dist. 3 126.80
• O Dist. 4 89.70
• R Total length mm 293.55

Cross Reference

• 11130670    Mahle

• 111332    HC-Cargo

• 540021093    PSH

• 6005003153    Renault

• 605720100083    MWM

• 72735981    Mahle

• 7700519797    Renault

• 932510700024    KHD

• AZJ3219    Mahle

• C830100004000    Agco

• F032111332    HC-Cargo

• F514900060040    Fendt

• IS0670    Mahle

• MAHMS353    Wood Auto

• MS353    Mahle

• X830100004    Fendt

• X830100006    Fendt
• 605720100055     MWM
• 605720100071     MWM
• 605720100098     MWM
• 605720100105     MWM
• 112219      Miscellaneous
• CS550        Miscellaneous

Fits Tractors Listed Below:

Case IH with TD226-4 Engine

• CS78
• CS86
• CS94

Fendt

• Farmer 105S 4.2 Diesel 1977 02 1992 02 D226-4
• Farmer 300 SERIES 4.2 Diesel 1980 02 - D226..
• Favorit 612 6.2 Diesel 1976 02 - D226-6
• Favorit 611 6.2 Diesel 1976 02 - D226-6
• Favorit 600 5.7 Diesel 1978 02 - D227-6
• Favorit 610 5.7 Diesel 1978 02 - D226-6
• Favorit 614 6.2 Diesel 1978 02 - TD226-6

Renault

• Renault 103-54 - - TD226-4
• Various Models

 Steyr

• M9078 M9078 - - TD226-4
• M9078A M9078A - - TD226-4
• M9086A M9086A - - TD226-4
• M9094A M9094A - - TD226-4

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
