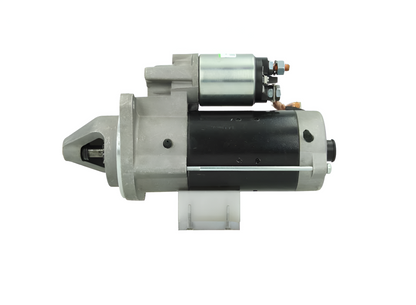

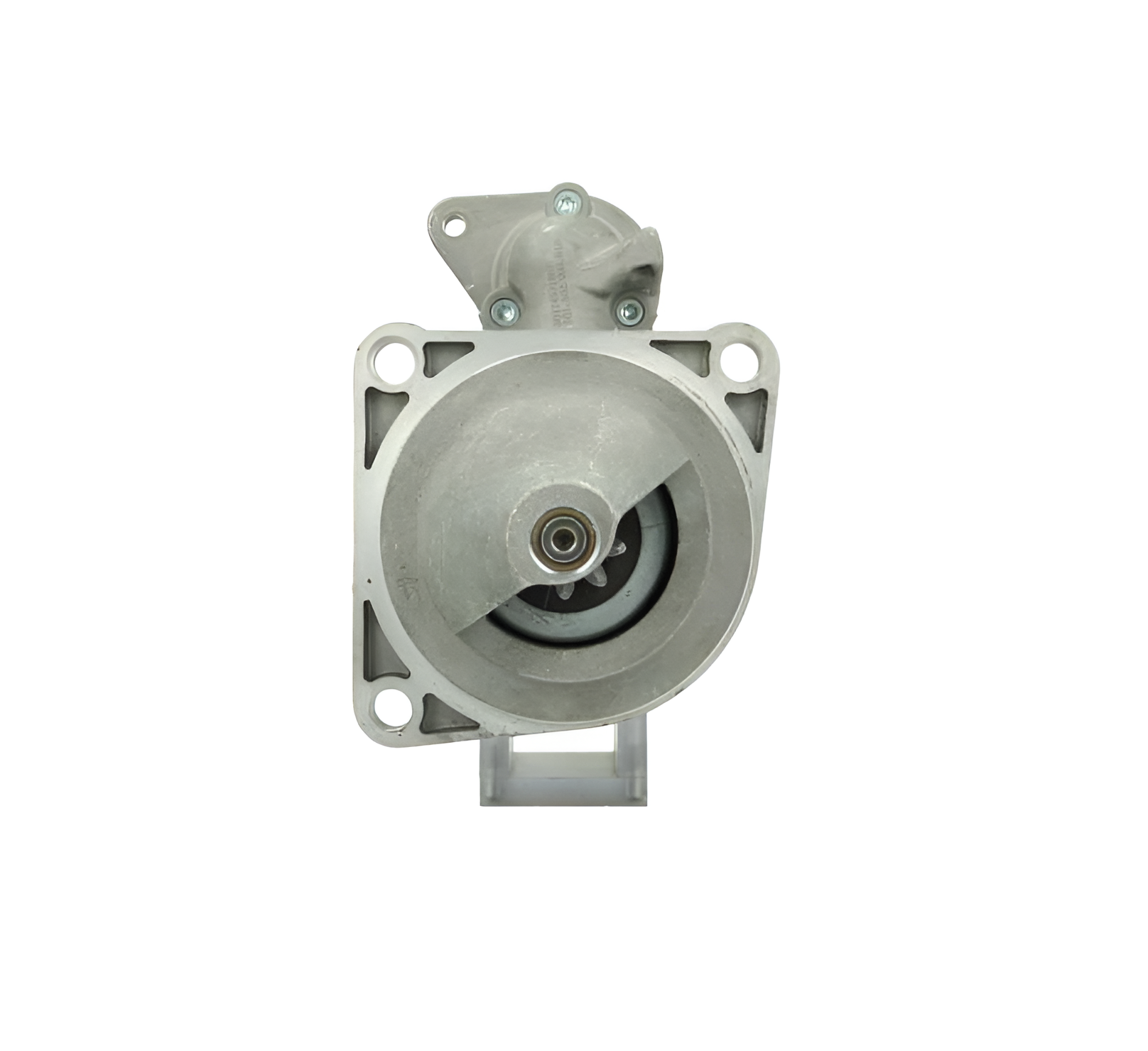

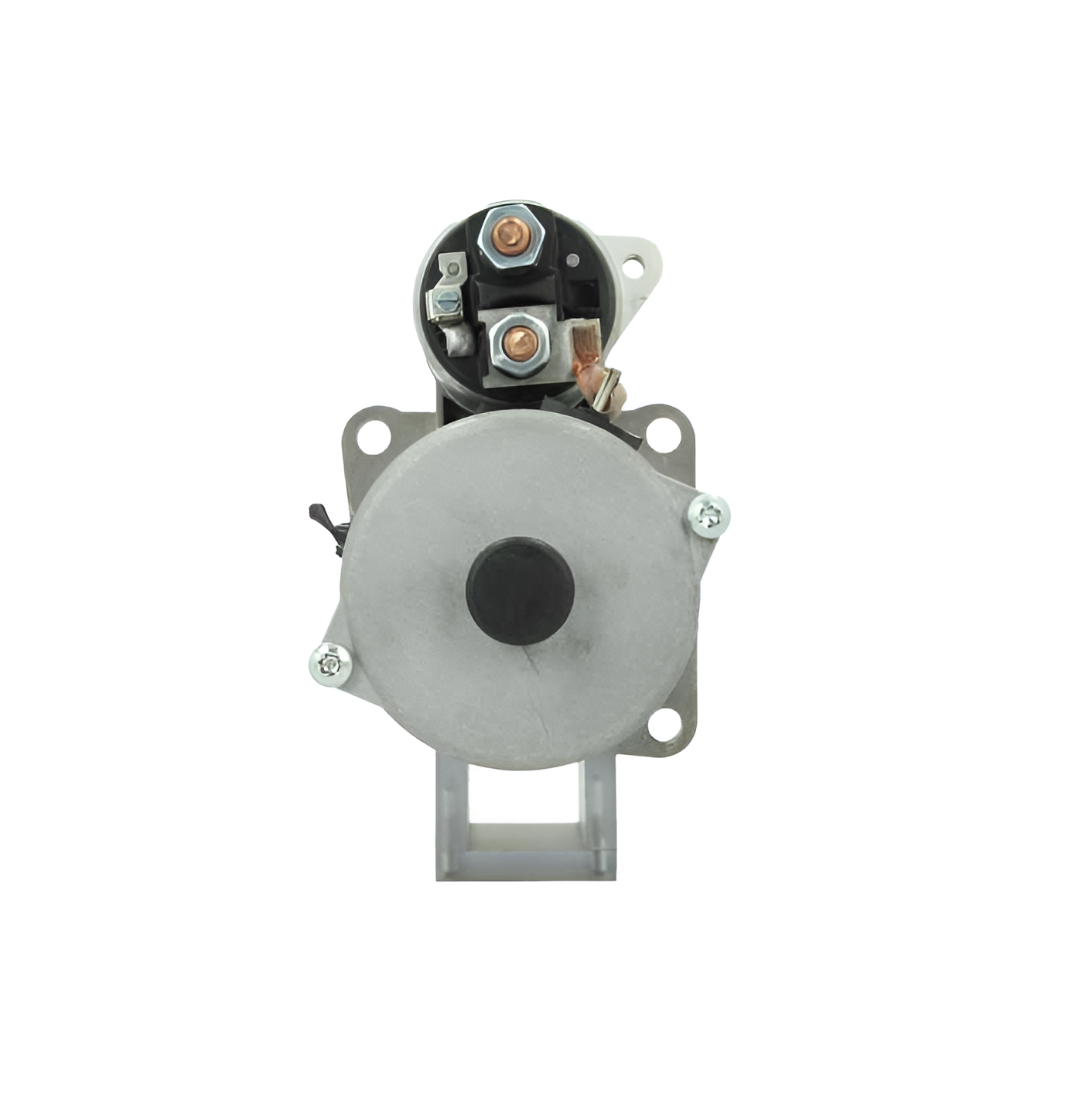

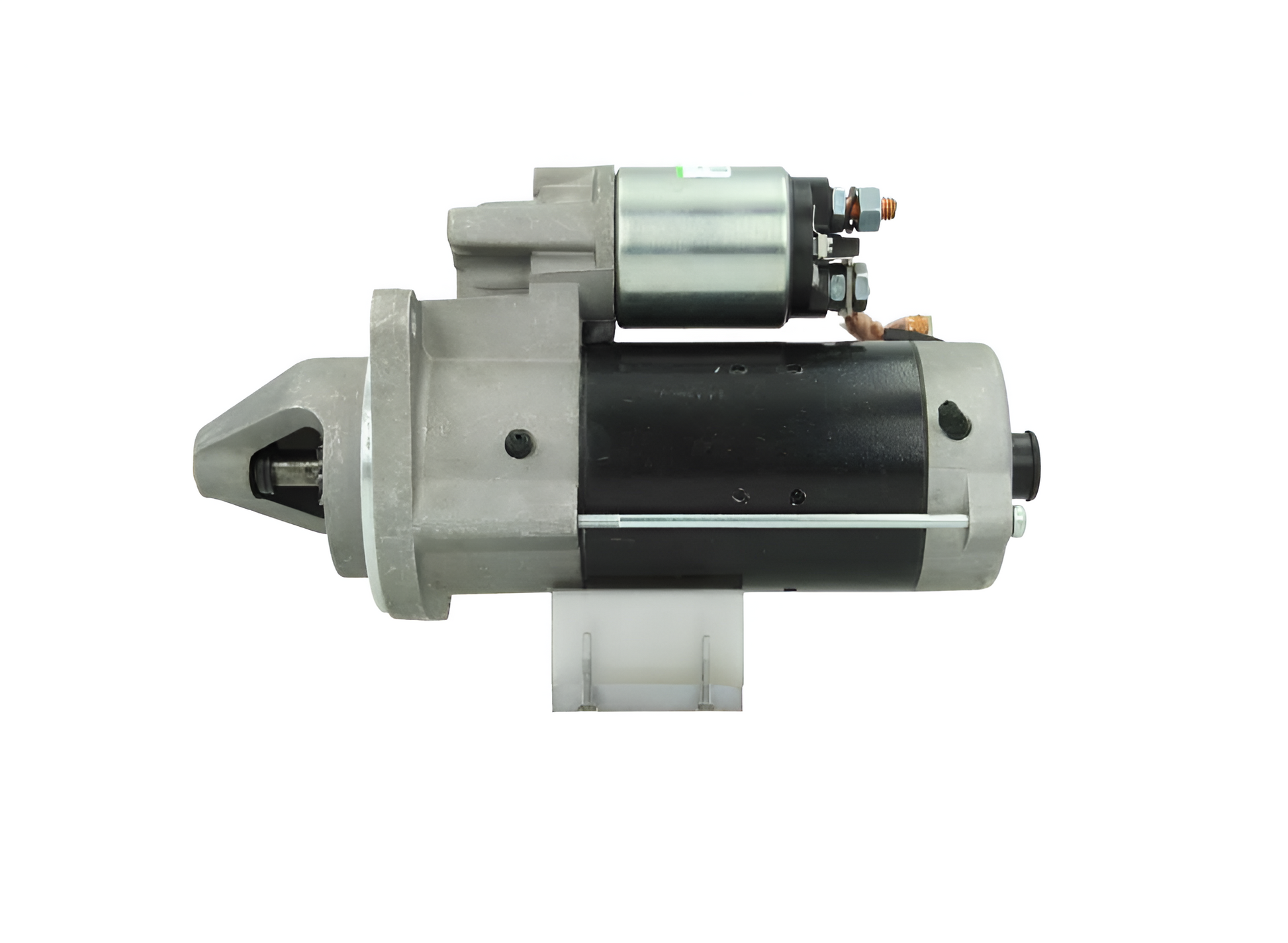

New 24V 4.0KW Starter Motor 9 Teeth Fits: Iveco, Fiat, Hitachi Digger 116347 / STR22063
116347
STR22063
Electrical specifications
- Voltage - 24
- KW - 4.0

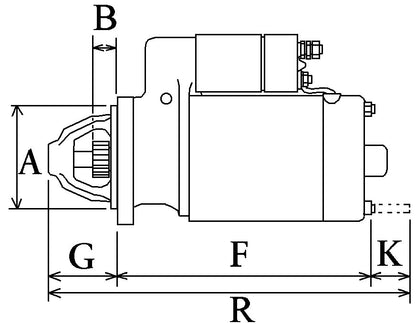

Physical specifications

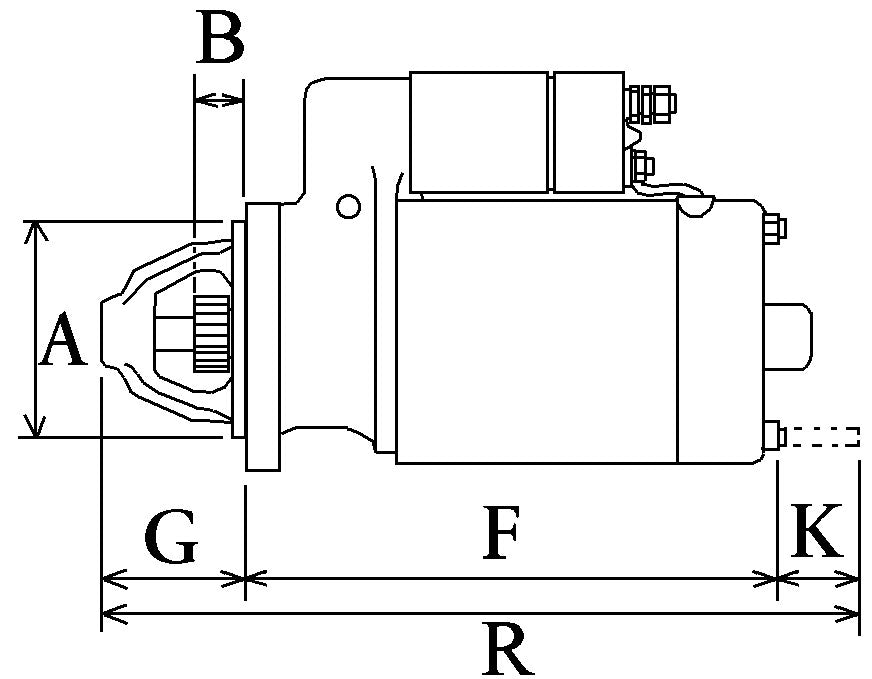

- A Mount. flange - 110.00
- B Drive dist. - 27.00

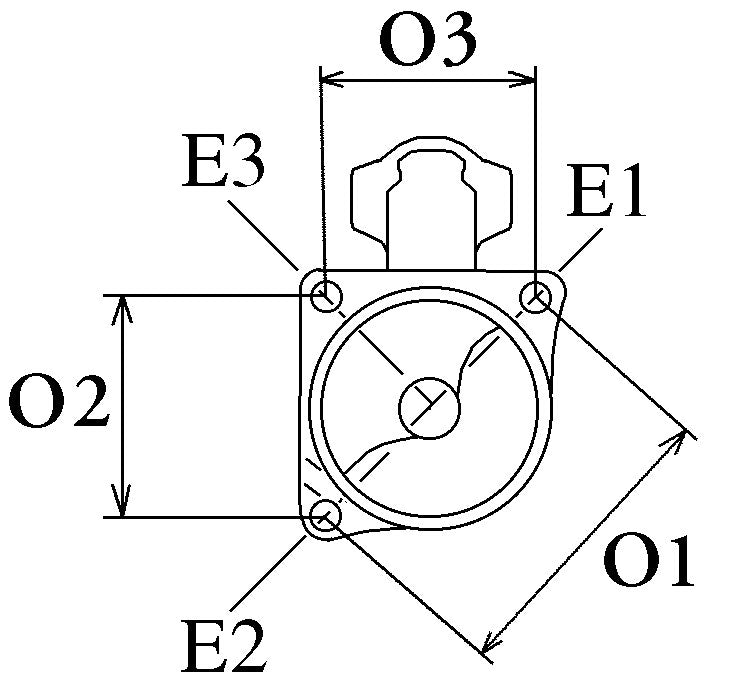

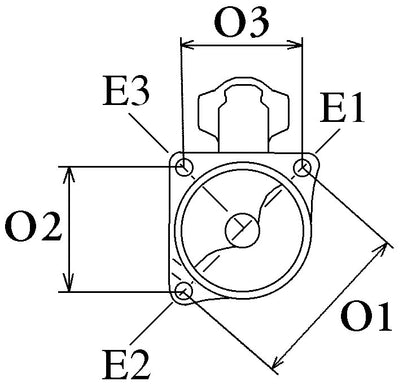

- E Mount. hole 3 mm - 12.00/14.00
- E Mount. hole 2 mm - 12.00
- E Mount. hole 1 mm - 12.00
- F Dist./back - 231.00
- G Dist./front - 74.00
- H No./teeth - 9
- I B+ M10
- L Terminal 50 M6
- N Gear type - GR
- O Dist. 2 - 103.50
- O Dist. 3 - 103.50
- O Dist. mm - 146.00
- P Rotation - CW
- R Total length mm - 317.00
- No./mount. holes - 3 (0)
Replacing
- 0001231010 Bosch
- 0001263065 SEG
- 063522310100 Magneti Marelli
- 0986021690 Bosch Exchange
- 113183 HC-Cargo
- 116347 HC-Cargo
- 12130235 AES
- 19084219 Delco Remy
- 19664N WAI
- 26023212 Dixie
- 500325185 Iveco
- 501502093 PSH
- 72736015 Mahle
- 75114529 Fiat Group
- 861049 Prestolite
- DRT1690 Delco Remy
- F032116347 HC-Cargo
- PRE861049 Wood Auto
- RNL2169 RNL
- SM2823 Honda
- STR22063 Wood Auto
- WOOSTR22063 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
