On Off Square Rocker Switch Mini Red Rectangle 12V Robinson
K424

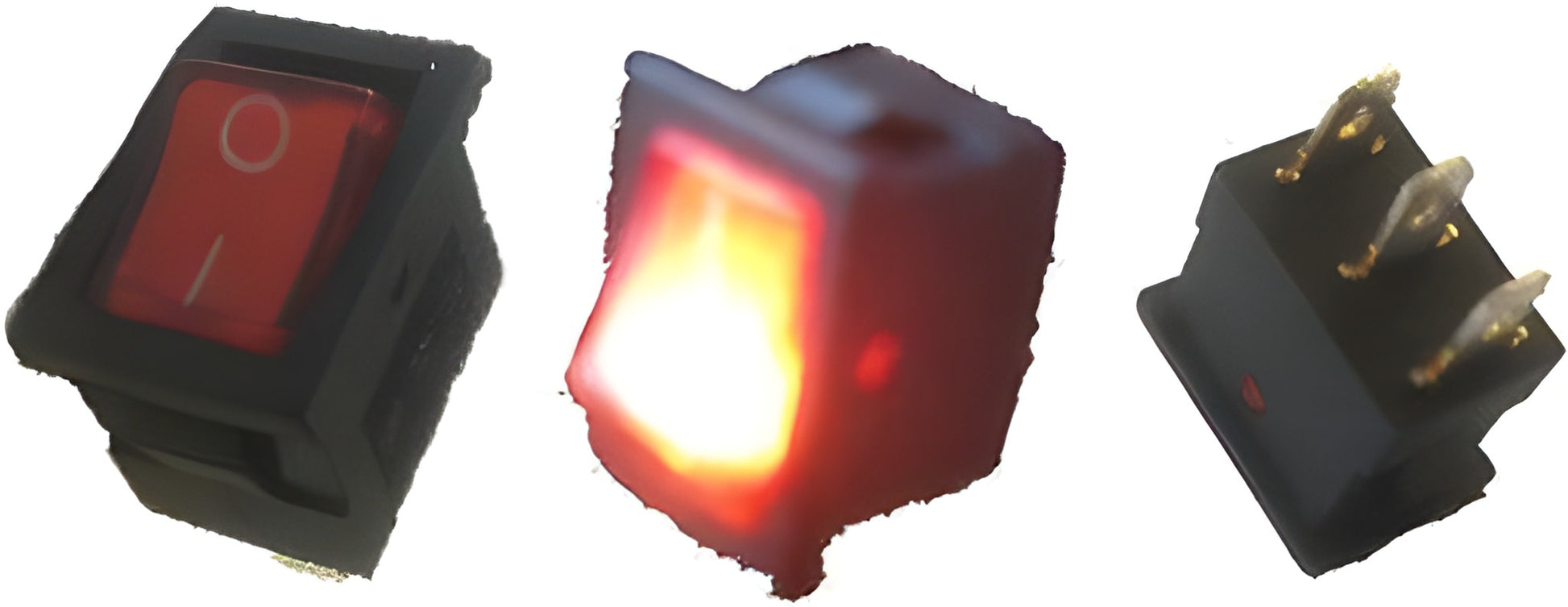

This is a mini On/Off rocker switch with a red face that illuminates when the switch is turned on. It is a 2-pole design with a 3rd pole for a bulb to be connected to earth.

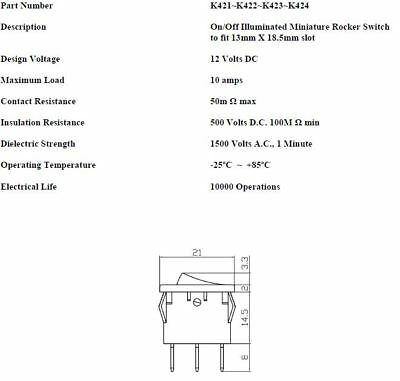

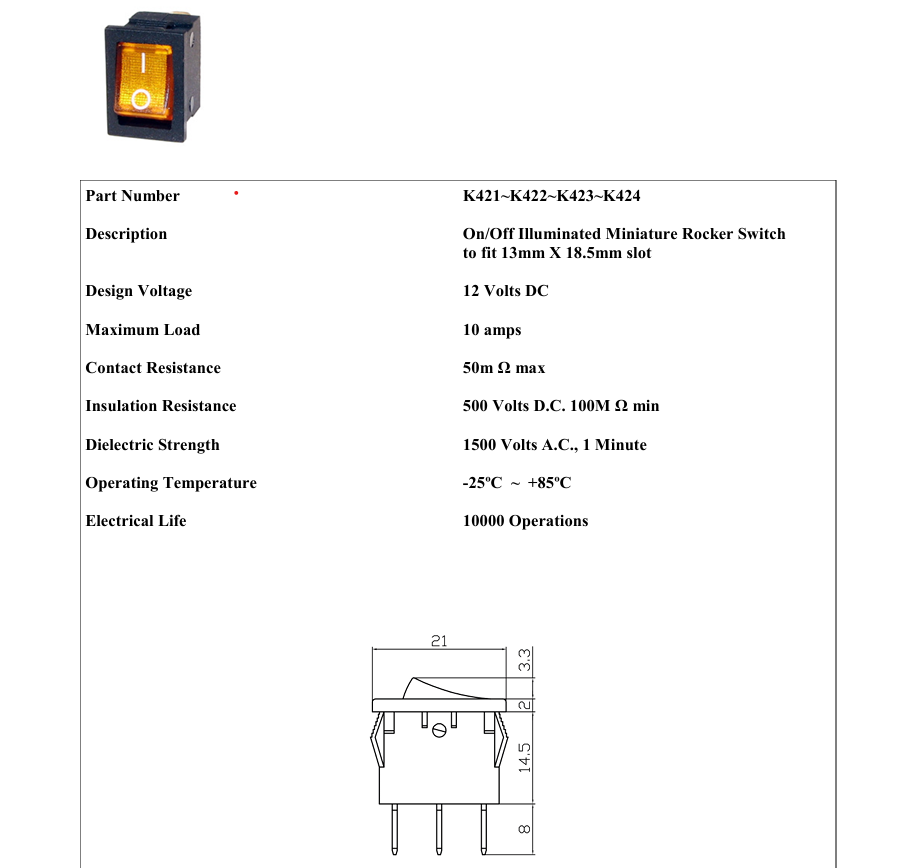

Physical specifications:
- Switch Type: Rocker
- Switching Method: ON-OFF
- Contacts Configuration: SPST
- Max Load: 10 Amps
- DC Contacts Rating: 15A / 12V
- AC Contacts Rating: 6A / 250V
- Actuator Colour: Black
- Backlight Colour: Red
- Illumination: Bulb
- Leads: 4.8 x 0.8 mm connectors
- Terminals: 3 Lucar Terminals (+ into switch, + out of switch, Earth)
- Button Marking: I 0
- Max. Contact Resistance: 50mΩ
- Body Material: Polyamide
- Flammability Rating: UL94V-2
- Electrical Life: 10000 Operations
- Operating Temperature: -25ºC ~ +85ºC

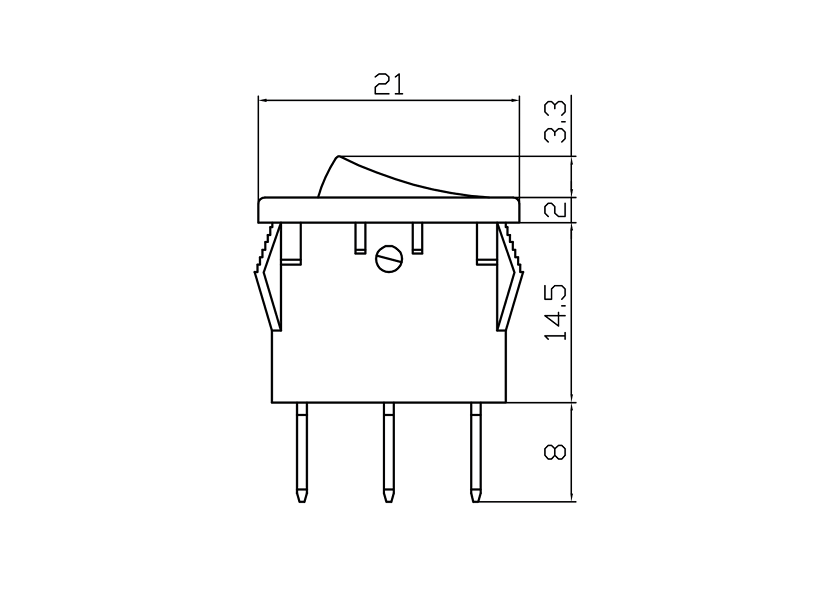

- Hole required for setup: 13mm wide x 18.5mm long
ANOTHER HIGH QUALITY PRODUCT FROM ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
