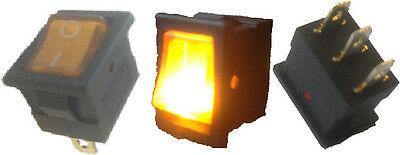

On Off Rocker Switch Mini Amber Rectangle Square 12V Robinson K421

On Off Rocker Switch Mini Amber Rectangle Square 12V Robinson K421

Vendor:Robinson

Availability: Low stock: 4 left

Product Type:k421

Product Indentifier:731084219025

Regular price

£3.04 £2.53 ex VAT

Regular price £2.92 Sale price £2.53 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12V 15 Amp Amber On/Off Rectangular Rocker Switch

K421

Easy setup

  • 13mm wide x 18.5mmmm hole is required and the switch will sit in nicely
  • Amber face will light up when the switch is turned on
  • 2 pole design (On/Off)
  • 3rd poles with bulb to be connected to earth


3 Lucar Terminals

  • + into switch
  • + out of switch
  • Earth


  • Note 1 On/off rocker switch
  • Note 2 |Amber
  • Note 3 12v, 15A


  • Switch type: ROCKER
  • Switching method: ON-OFF
  • Contacts: configuration SPST
  • AC contacts rating: A / 250 V
  • Actuator colour: black
  • Max. contact resistance: 50mΩ
  • Leads: 4.8 x 0.8 mm connectors
  • Flammability rating: UL94V-2
  • Illumination: bulb
  • Electrical life: 6000cycles
  • Button marking: I 0
  • DC contacts rating: 15 A / 12 V
  • Body material: polyamide
  • Backlight colour: Amber


*at resistance load
**at resistance load



What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
