Solenoid For Ford 3 Terminals Universal Fitting 100Amp 800Amp Wood Auto SND12239 232220

Solenoid For Ford 3 Terminals Universal Fitting 100Amp 800Amp Wood Auto

SND12239

232220

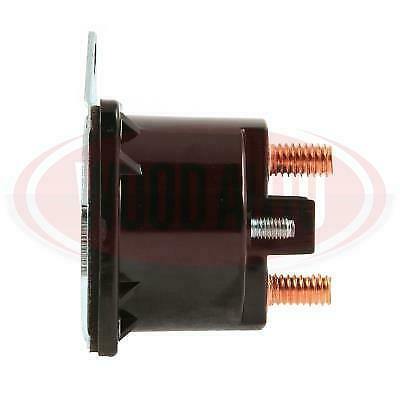

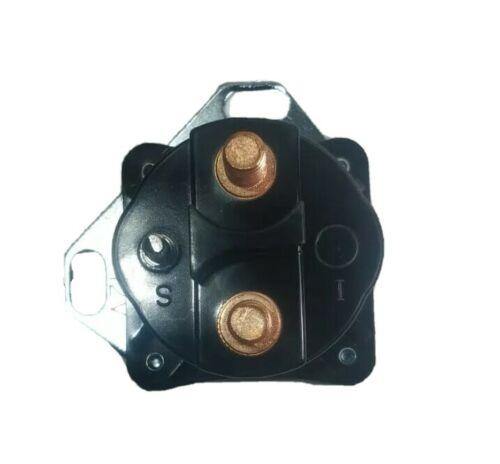

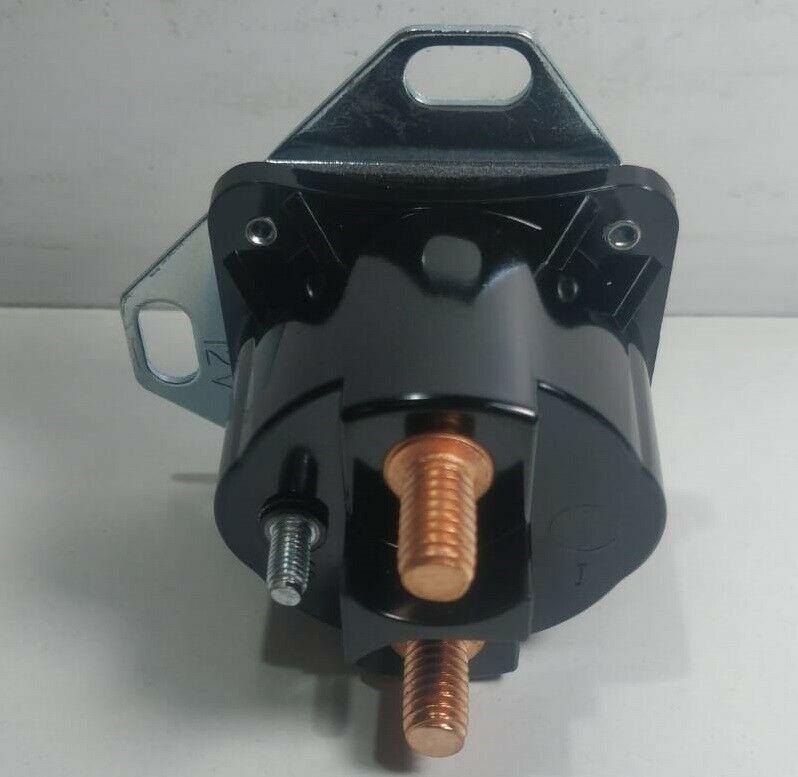

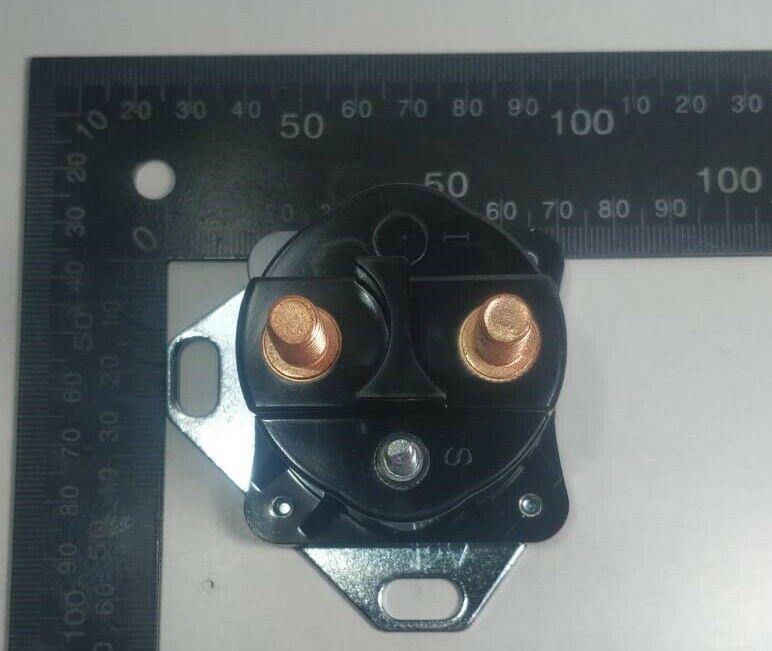

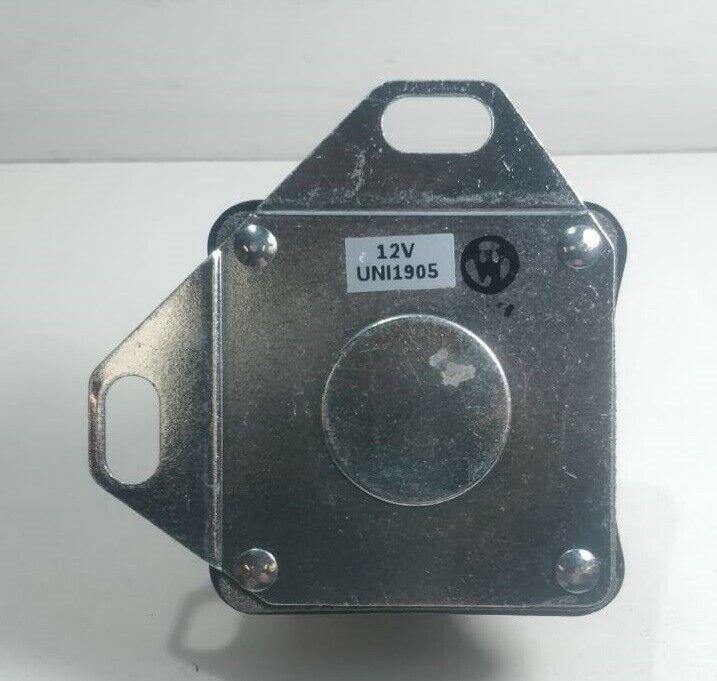

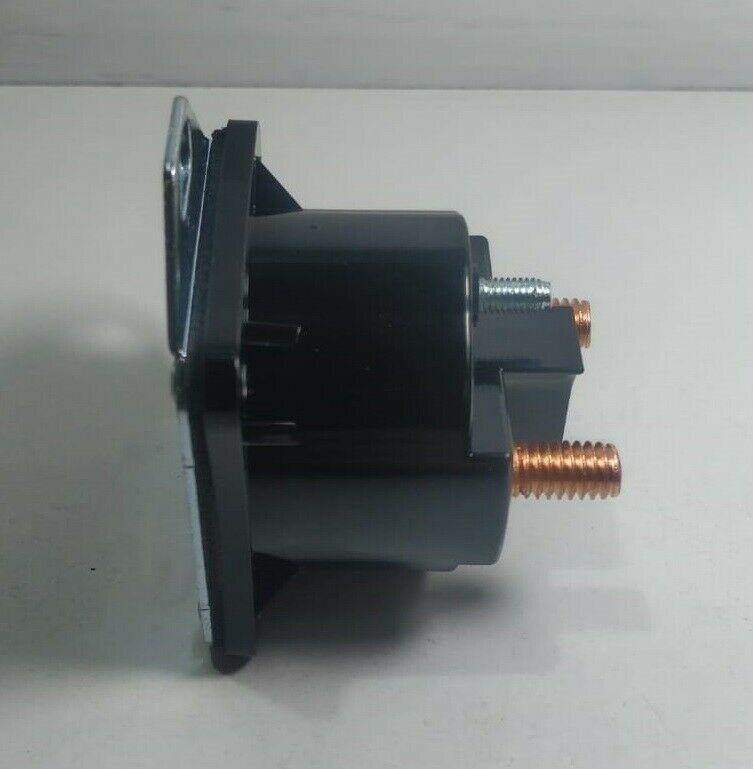

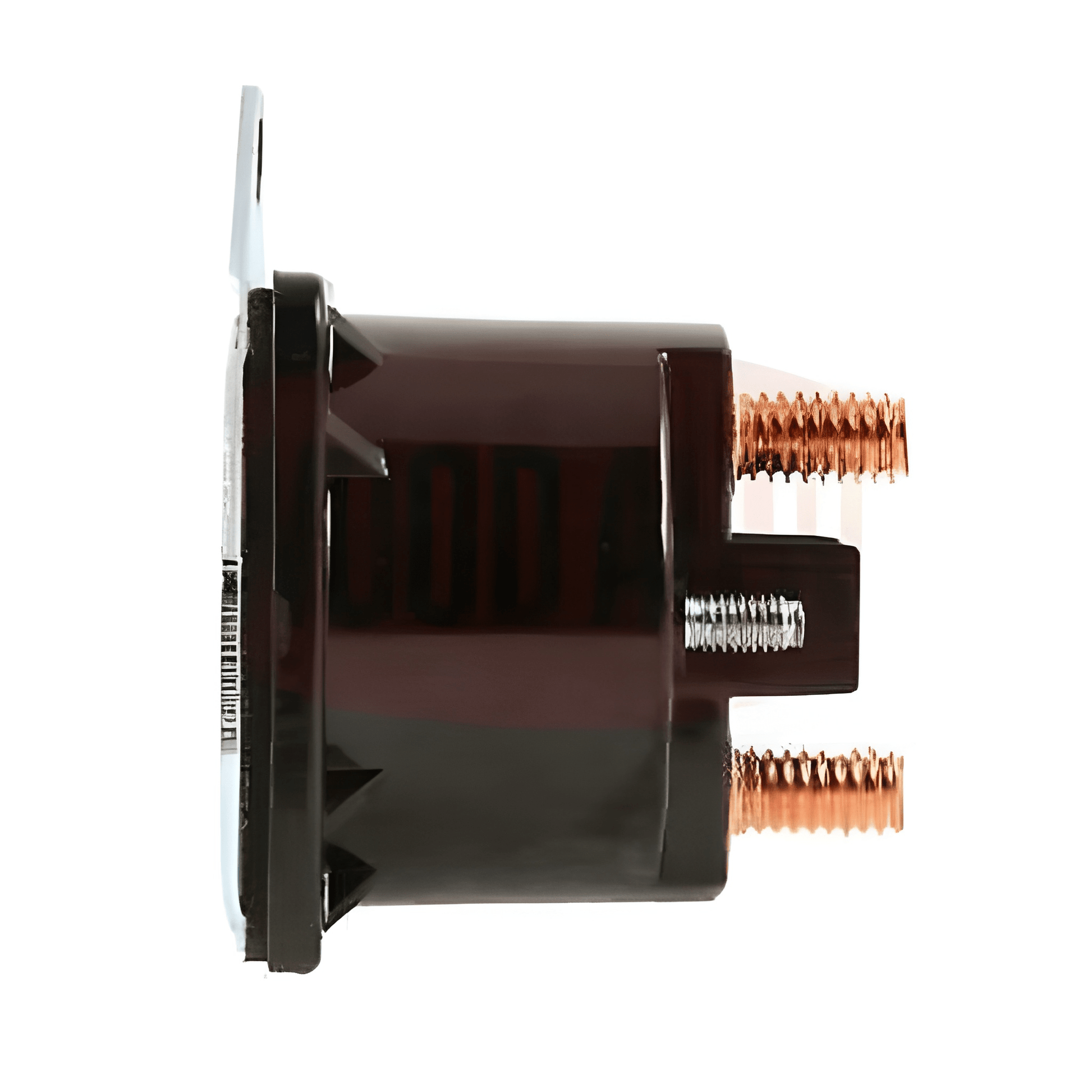

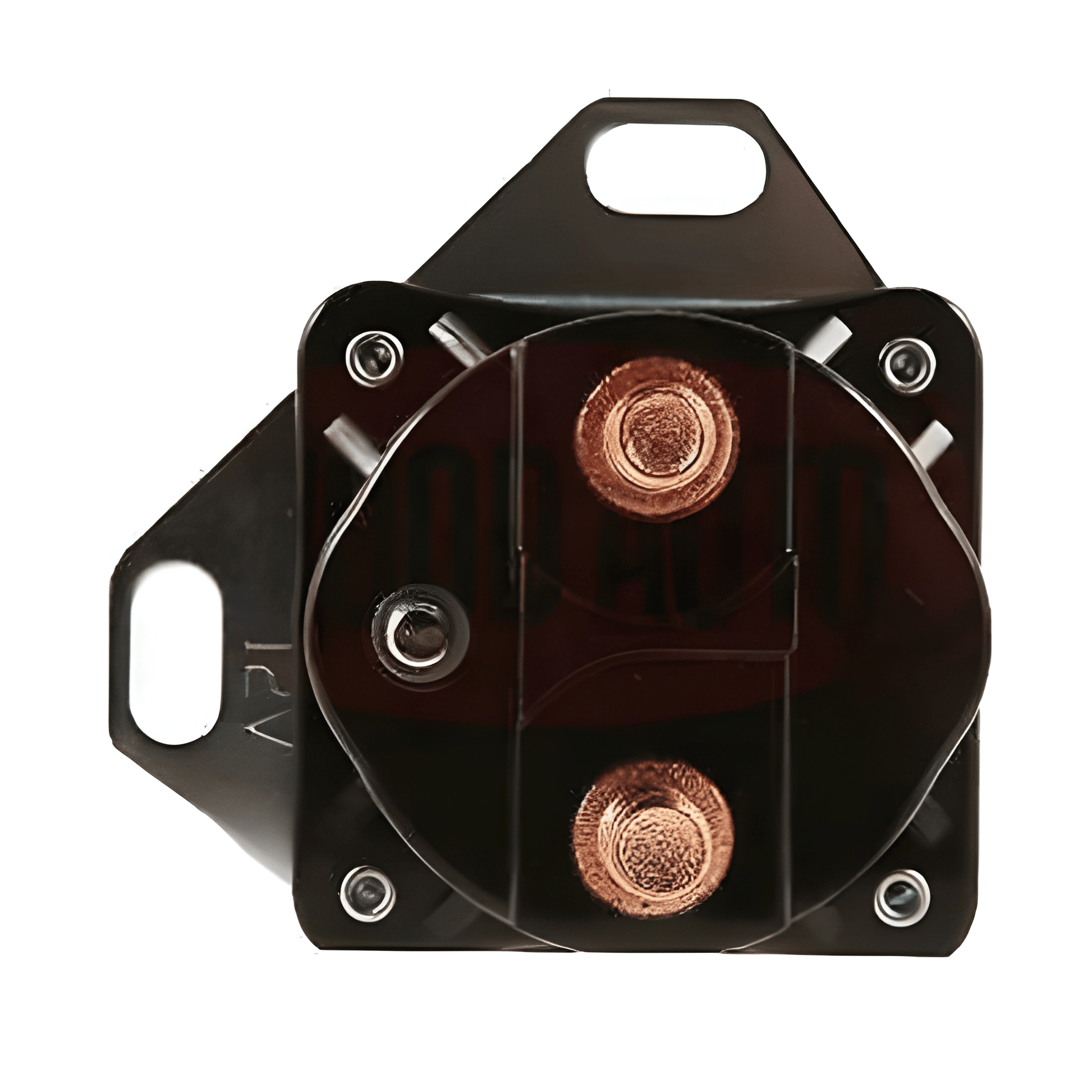

This is a high-quality universal solenoid manufactured by Wood Auto, designed for a wide range of 12V applications. It is suitable for heavy-duty intermittent loads and ensures reliable performance in automotive and industrial settings.

Key Features:

• Compatibility: Universal 12V applications
• Voltage: 12V
• Intermittent Load: 800A
• Current Rating: 100A continuous
• Bracket & Terminals: 5/16" UNC coil bolt, 6 terminals

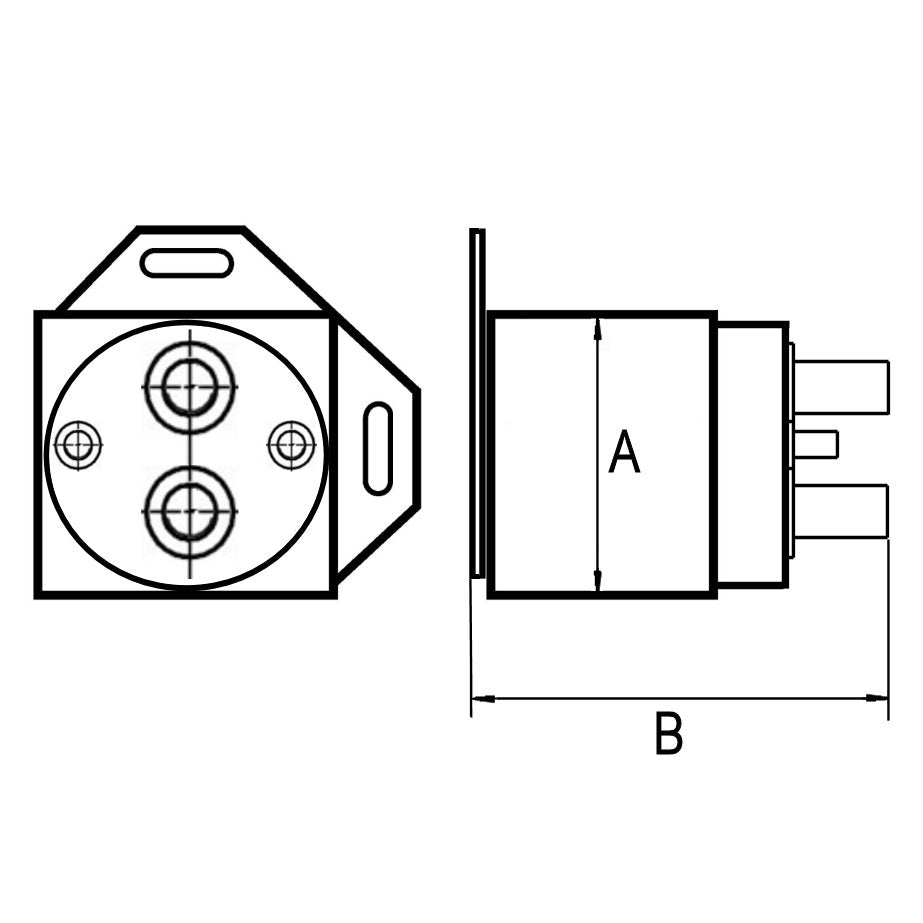

Technical Specifications:

• A OD: 49.05 mm
• B Total Length: 58.75 mm
• Bracket D OD / Cover: 49.05 mm
• B+ (G): 5/16" UNC
• Height / B+ (H): 12.00 mm
• Coil Bolt Length (N): 12.00 mm
• Width / Kl. 50 (L): 5.50 mm
• Kl. 50 / K: 10-32 UNF

Cross Reference / OEM Reference:

• E5TZ11450A Ford
• E7TZ11450A Ford
• SW1951 Ford
• SW1951A Ford
• SW1951B Ford
• SW1951C Ford

Fits Units / Compatible References:

• 054100049 PSH
• 12764V WAI
• 15437 Prestolite
• 15450 Prestolite
• 232220 HC-Cargo
• 66203 WAI
• 662031 WAI
• 71035 WAI
• E5DF11450AA Ford
• E5TZ11450A Ford
• E79F11450AA Ford
• E79F11450AB Ford
• E7TZ11450B Ford
• E89F11450AA Ford
• E99F11450AA Ford
• F032232220 HC-Cargo
• F042512474 Bosch
• SAZ4201EA Prestolite
• SND12239 Wood Auto
• SNLS135E Unipoint
• SNLS163 Unipoint
• SNLS167 Unipoint
• SW1951 Ford
• SW1951A Ford
• SW1951B Ford
• SW1951C Ford
• WOOSND12239 Wood Auto

Another high-quality product by Wood Auto
