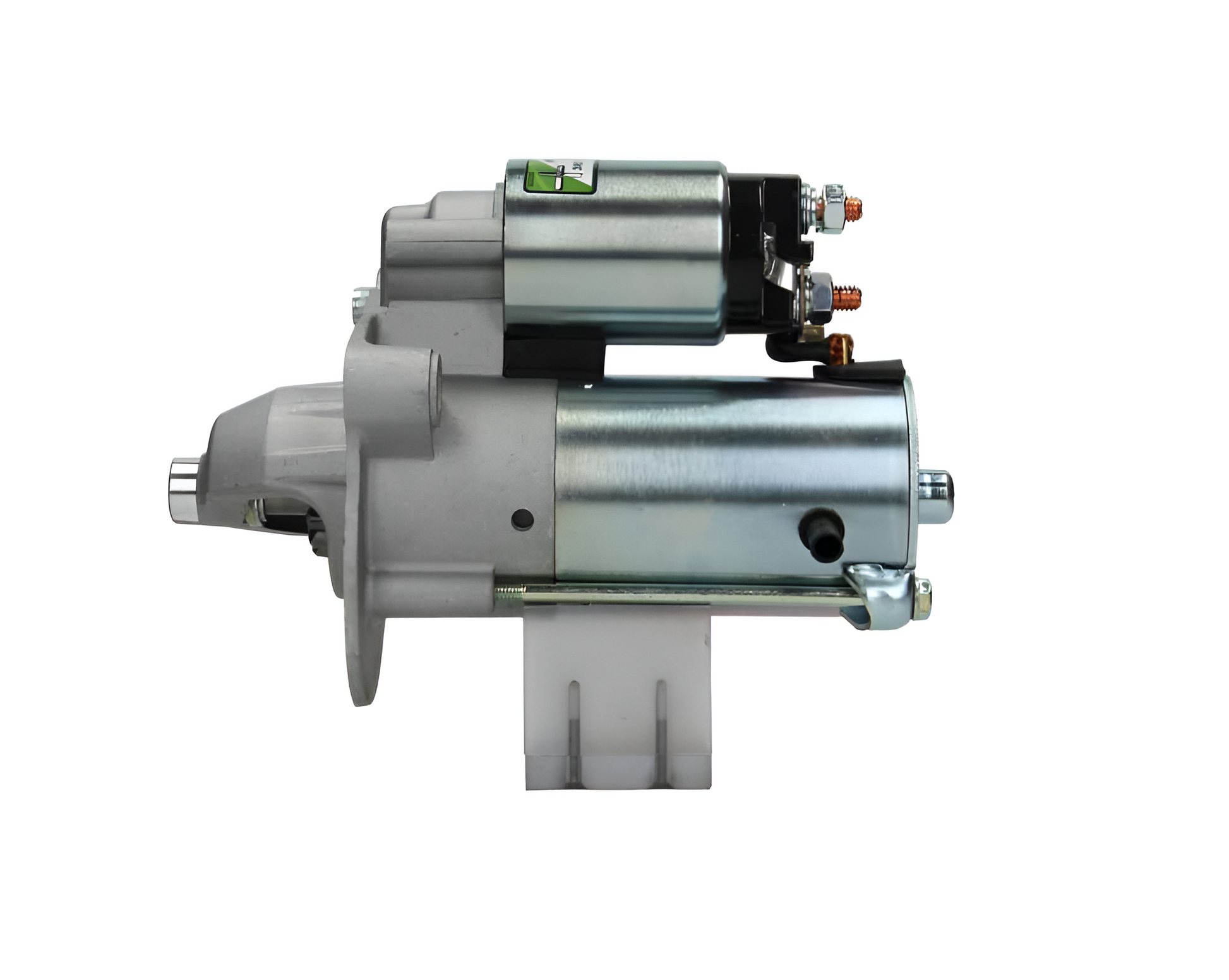

• Silver 1 2KW 12V 11 teeth starter motor STR61812 for Ford Mazda and Volvo vehicles

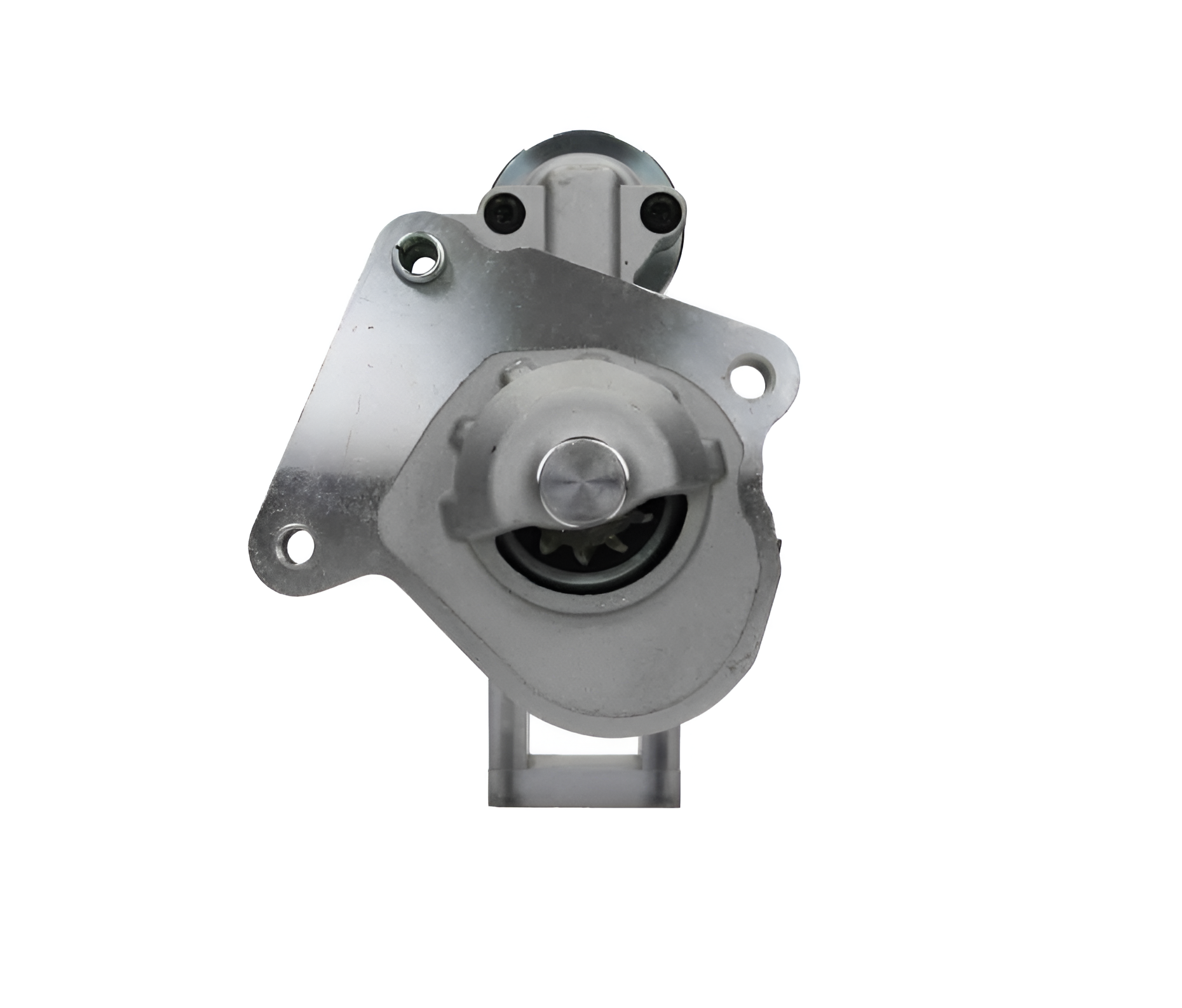

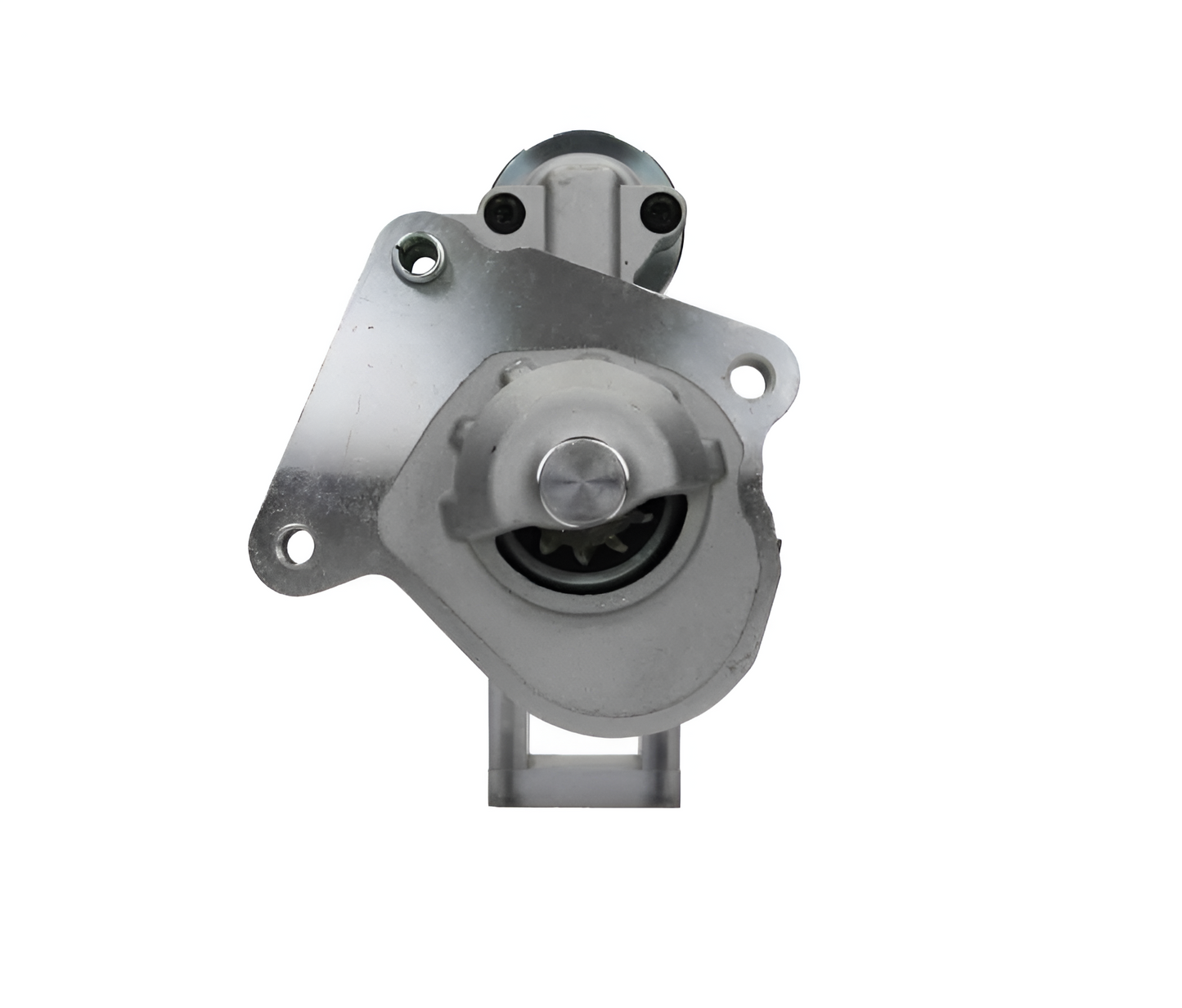

  • Metallic starter motor drive end showing pinion gear and mounting flange by Mid Ulster Rotating Electrics

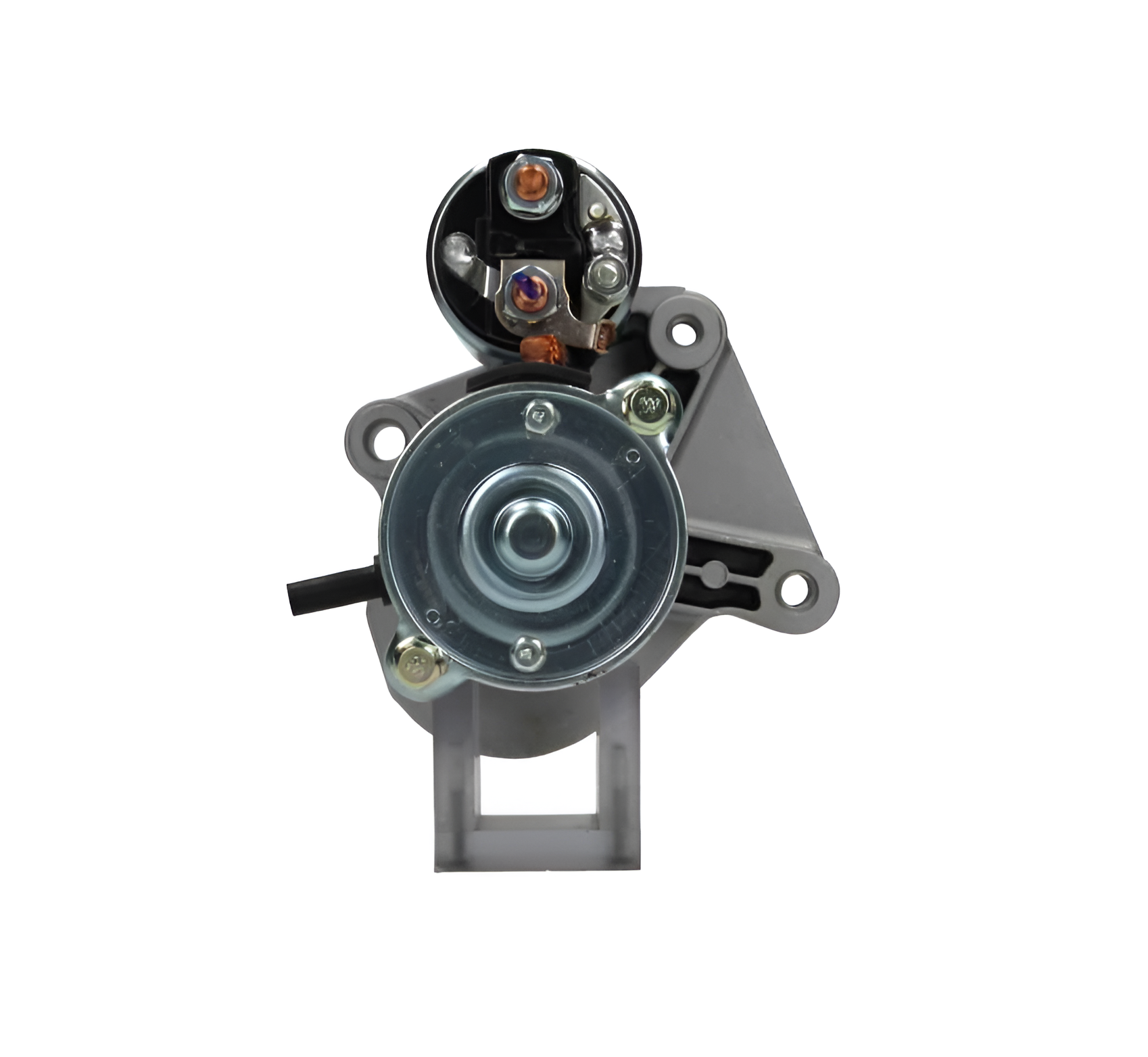

  • Rear view of a metallic starter motor with top solenoid terminals and cast aluminum mounting flange

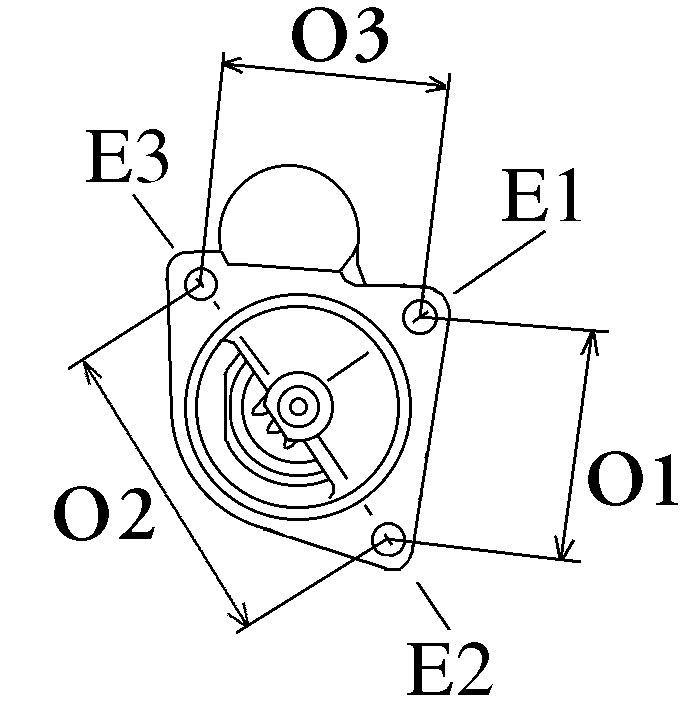

  • Technical diagram of the STR61812 starter motor showing dimensions O1 O2 O3 and mounting points E1 E2 E3

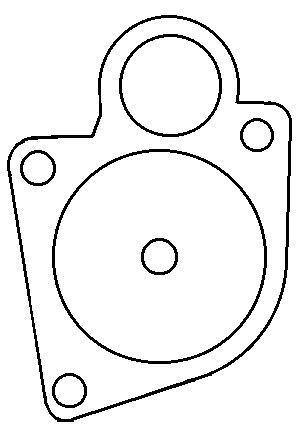

  • Outline drawing of the STR61812 starter motor mounting plate featuring three perimeter bolt holes and a central hole

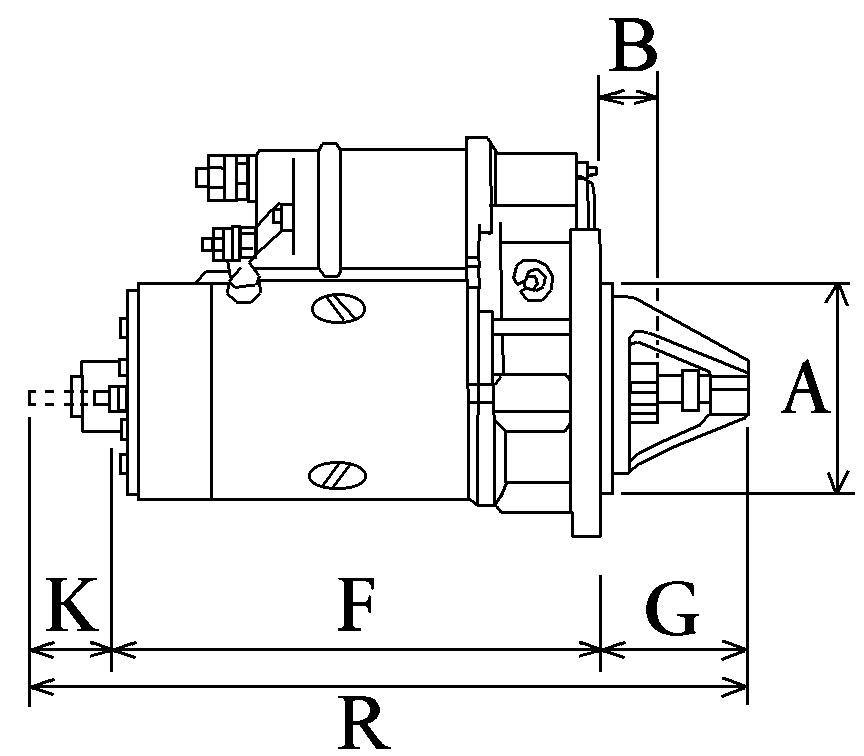

  • Line drawing of STR61812 1 2KW 12v 11 teeth starter motor with dimensions labeled A B K F G R
1 6

1.2KW 12v 11 Teeth Starter Motor Fits Ford, Mazda, Volvo 116062 / STR61812

1.2KW 12v 11 Teeth Starter Motor Fits Ford, Mazda, Volvo 116062 / STR61812

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:STR61812

Product Indentifier:7426994749856

£103.15 inc VAT £85.96 ex VAT
£107.99 £103.15 inc VAT £85.96 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Starter Motor, Fits Cmax, Focus, Tourneo, V50, S40 Etc. 116062 / STR61812

116062

STR61812

Electrical information

  • Voltage 12
  • Kw 1.2

Physical information

  • H No./teeth 11
  • P Rotation CW
  • N Gear type GR
  • I B+ M8
  • No./mount. holes 3 (2)
  • B Drive dist. 14.00
  • E Mount. holes 9.50
  • E Mount. hole 2 M10
  • E Mount. hole 3 M8
  • F Dist./back 156.50
  • G Dist./front 53.00
  • M Mount. bracket No
  • O Dist. mm 115.90
  • O Dist. 2 74.80
  • O Dist. 3 84.30
  • R Total length mm 216.00

Catalogue information

  • Drive type - Steel
  • Waterproof - No
  • Oil sealed - No

Replacing

  • 063280029010    Magneti Marelli
  • 0986022131    Bosch Exchange
  • 113908    HC-Cargo
  • 116062    HC-Cargo
  • 1222064    Valeo
  • 1229427    Ford
  • 1233234    Ford
  • 1254222    Ford
  • 1368970    Ford
  • 1469712    Ford
  • 15130016    AES
  • 1707507    Ford
  • 2010001029    Visteon
  • 2073366    Ford
  • 2109635    Ford
  • 30795406    Volvo
  • 32508N    WAI
  • 32508R    WAI
  • 36003219    Volvo
  • 3M5T11000CA    Ford
  • 3M5T11000CB    Ford
  • 3M5T11000CC    Ford
  • 3M5T11000CD    Ford
  • 3M5T11000CE    Ford
  • 3M5T11000CF    Ford
  • 3M5T11000CG    Ford
  • 3M5TCA    Ford
  • 3M5TCB    Ford
  • 3M5TCC    Ford
  • 3M5TCD    Ford
  • 3M5TCE    Ford
  • 3M5TCF    Ford
  • 3M5TCG    Ford
  • 4063859    Ford
  • 446522    Valeo
  • 458650    Valeo
  • 590539113    PSH
  • 63280029    Magneti Marelli
  • 8603690    Volvo
  • BG9T11000AA    Ford
  • CS1341    HC-Parts
  • DRS3968    Delco Remy
  • DRS3968N    Delco Remy
  • F032116062    HC-Cargo
  • F042S0H069    Bosch
  • HCS1341    HC-Parts
  • LES0304    Lucas
  • LRS02219    Lucas
  • LRS04122    Lucas
  • LRS2219    Lucas
  • LRS4122    Lucas
  • MSN8029    Magneti Marelli
  • OSM10910    Optimum
  • RAS34079    Delco Remy
  • RNL3M5TCE    RNL
  • STR61812    Wood Auto
  • STRH069    Unipoint
  • TSL1217    Valeo
  • WOOSTR61812    Wood Auto
  • Y60118400    Mazda
  • Y60118400A    Mazda
  • Y60118400B    Mazda
  • Y60118400C    Mazda

Application

  • FORD C-MAX 1.5 TDCi 2015 - 1499cc, 4cyl, 95HP
  • FORD C-MAX 1.5 TDCi 2015 - 1499cc, 4cyl, 120HP
  • FORD C-MAX 1.5 TDCi ECOnetic 2015 - 1499cc, 4cyl, 105HP
  • FORD C-MAX 1.6 TDCi 2007 - 2010 1560cc, 4cyl, 90HP
  • FORD C-MAX 1.6 TDCi 2007 - 2010 1560cc, 4cyl, 101HP
  • FORD C-MAX 1.6 TDCi 2007 - 2010 1560cc, 4cyl, 109HP
  • FORD C-MAX 1.6 TDCi 2010 - 1560cc, 4cyl, 95HP
  • FORD C-MAX 1.6 TDCi 2010 - 1560cc, 4cyl, 115HP
  • FORD FOCUS 1.5 TDCi 2014 - 1499cc, 4cyl, 95HP
  • FORD FOCUS 1.5 TDCi 2014 - 1499cc, 4cyl, 120HP
  • FORD FOCUS 1.5 TDCi ECOnetic 2014 - 1499cc, 4cyl, 105HP
  • FORD FOCUS 1.6 TDCi 2003 - 2007 1560cc, 4cyl, 109HP
  • FORD FOCUS 1.6 TDCi 2004 - 2012 1560cc, 4cyl, 90HP
  • FORD FOCUS 1.6 TDCi 2004 - 2012 1560cc, 4cyl, 100HP
  • FORD FOCUS 1.6 TDCi 2004 - 2012 1560cc, 4cyl, 109HP
  • FORD FOCUS 1.6 TDCi 2005 - 2007 1560cc, 4cyl, 90HP
  • FORD FOCUS 1.6 TDCi 2005 - 2012 1560cc, 4cyl, 90HP
  • FORD FOCUS 1.6 TDCi 2005 - 2012 1560cc, 4cyl, 100HP
  • FORD FOCUS 1.6 TDCi 2005 - 2012 1560cc, 4cyl, 109HP
  • FORD FOCUS 1.6 TDCi 2007 - 1560cc, 4cyl, 110HP
  • FORD FOCUS 1.6 TDCi 2011 - 1560cc, 4cyl, 95HP
  • FORD FOCUS 1.6 TDCi 2011 - 1560cc, 4cyl, 115HP
  • FORD FOCUS 1.6 TDCi ECOnetic 2012 - 1560cc, 4cyl, 105HP
  • FORD FOCUS Electric 2013 - 145HP
  • FORD GALAXY 1.6 TDCi 2011 - 1560cc, 4cyl, 115HP
  • FORD GRAND C-MAX 1.5 TDCi 2015 - 1499cc, 4cyl, 95HP
  • FORD GRAND C-MAX 1.5 TDCi 2015 - 1499cc, 4cyl, 120HP
  • FORD GRAND C-MAX 1.6 TDCi 2010 - 1560cc, 4cyl, 95HP
  • FORD GRAND C-MAX 1.6 TDCi 2010 - 1560cc, 4cyl, 115HP
  • FORD MONDEO 1.6 TDCi 2010 - 2014 1560cc, 4cyl, 115HP
  • FORD MONDEO 1.6 TDCi 2011 - 2014 1560cc, 4cyl, 115HP
  • FORD S-MAX 1.6 TDCi 2011 - 1560cc, 4cyl, 115HP
  • FORD TOURNEO 1.5 TDCi 2014 - 1499cc, 4cyl, 75HP
  • FORD TOURNEO 1.5 TDCi 2015 - 1499cc, 4cyl, 75HP
  • FORD TOURNEO 1.5 TDCi 2015 - 1499cc, 4cyl, 95HP
  • FORD TOURNEO 1.5 TDCi 2015 - 1499cc, 4cyl, 101HP
  • FORD TOURNEO 1.5 TDCi 2015 - 1499cc, 4cyl, 120HP
  • FORD TOURNEO 1.6 TDCi 2013 - 1560cc, 4cyl, 75HP
  • FORD TOURNEO 1.6 TDCi 2013 - 1560cc, 4cyl, 95HP
  • FORD TOURNEO 1.6 TDCi 2013 - 1560cc, 4cyl, 115HP
  • FORD TOURNEO 1.6 TDCi 2014 - 1560cc, 4cyl, 95HP
  • FORD TRANSIT 1.5 TDCi 2014 - 1499cc, 4cyl, 75HP
  • FORD TRANSIT 1.5 TDCi 2015 - 1499cc, 4cyl, 95HP
  • FORD TRANSIT 1.5 TDCi 2015 - 1499cc, 4cyl, 101HP
  • FORD TRANSIT 1.5 TDCi 2015 - 1499cc, 4cyl, 120HP
  • FORD TRANSIT 1.6 TDCi 2013 - 1560cc, 4cyl, 75HP
  • FORD TRANSIT 1.6 TDCi 2013 - 1560cc, 4cyl, 95HP
  • FORD TRANSIT 1.6 TDCi 2013 - 1560cc, 4cyl, 115HP
  • FORD TRANSIT 1.6 TDCi 2014 - 1560cc, 4cyl, 95HP
  • MAZDA 3 1.6 DI Turbo 2004 - 2009 1560cc, 4cyl, 109HP
  • MAZDA 3 1.6 DI Turbo 2004 - 1560cc, 4cyl, 109HP
  • MAZDA 3 1.6 MZ-CD 2006 - 1560cc, 4cyl, 90HP
  • MAZDA 3 1.6 MZR CD 2008 - 1560cc, 4cyl, 109HP
  • MAZDA 3 1.6 MZR CD 2010 - 1560cc, 4cyl, 116HP
  • MAZDA 5 1.6 CD 2010 - 1560cc, 4cyl, 116HP
  • VOLVO C30 1.6 D 2006 - 2012 1560cc, 4cyl, 109HP
  • VOLVO C30 1.6 D2 2010 - 2012 1560cc, 4cyl, 115HP
  • VOLVO S40 1.6 D 2005 - 1560cc, 4cyl, 110HP
  • VOLVO S40 1.6 D2 2010 - 1560cc, 4cyl, 115HP
  • VOLVO S80 1.6 D DRIVe 2010 - 1560cc, 4cyl, 109HP
  • VOLVO V50 1.6 D 2005 - 1560cc, 4cyl, 110HP
  • VOLVO V50 1.6 D2 2010 - 1560cc, 4cyl, 114HP
  • VOLVO V70 1.6 D 2010 - 1560cc, 4cyl, 109HP
  • VOLVO V70 1.6 DRIVe / D2 2011 - 1560cc, 4cyl, 114HP

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

              * All products come with 12 months warranty unless otherwise stated.
              * Please contact us with any issues so we can provide a solution for you.
          ** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **

          Ford Focus C-MAX 1.6D
          Ford Focus II 1.6 D
          Mazda 3 1.6 DI Turbo
          Mazda 3 1.6MZR-CD
