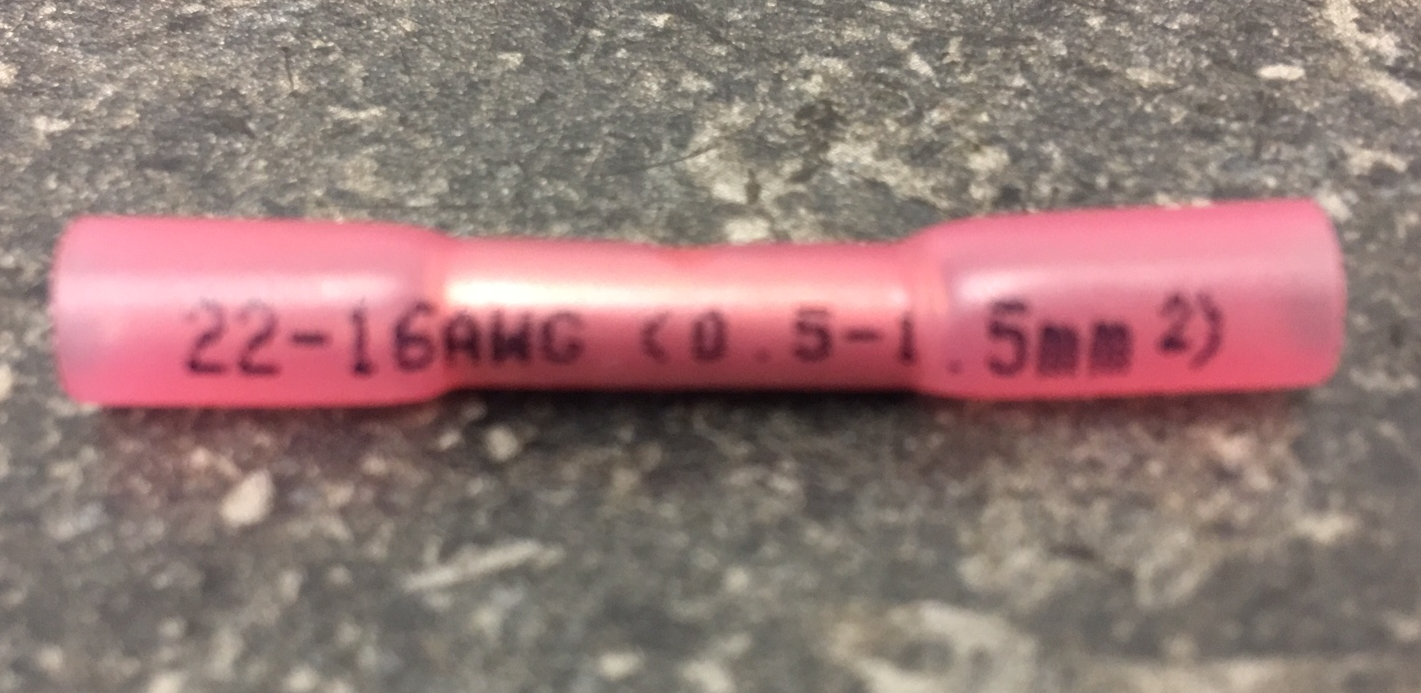

10 X Duraseal Type Red Glue Lined Heat Shrink Butt Splice Terminals Ctie 1910R

10 x DURASEAL TYPE RED GLUE LINED HEAT SHRINK BUTT SPLICE TERMINALS CTIE 1910R

10 x INSULATED HEAT SHRINK BUTT SPLICES

RED DURASEAL TYPE CRIMP CONNECTORS

1910R / HSB1.25

ADHESIVE LINED FOR WATERTIGHT JOINT FOR CABLES

• Material (Insulation) – High Density Polyethylene
• Material (Terminal) – Copper
• Material (Terminal Plating) – Electro Tin Plating
• Maximum Electrical Rating – 600 Volts Max

Specification

• Waterproof
• Tip type: Heat shrink butt splice
• Wire cross-section: 0.5 - 1.5mm2
• Ferrule variant: insulated
• Colour: Red

Dimensions:

• Length: 37mm
• Width: widest part - 5.5mm
• Narrowist part - 4.6mm

Directions

• place the cable in the metallic barrel and crimp firmly, then shrink the plastic cover by heating in the usual way. An adhesive on the inside of the plastic cover bonds to the cable, securing and water proofing the connection. Made from tin-plated copper and heat-shrinkable PVC.Supplied in packs of 10.

Another Top Quality Product From Ctie UK
