Delivery Charges
100m REEL 8.75 AMP 2 CORE FLAT TWIN PVC CABLE AUTOMARINE 12V 24V WIRE 1650BRB
100m Reel PVC 14/0.30 8.75 Amp Twin Core
1650BRB

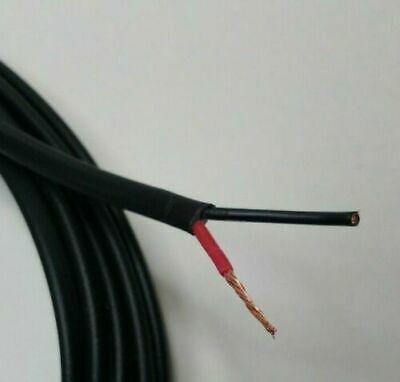

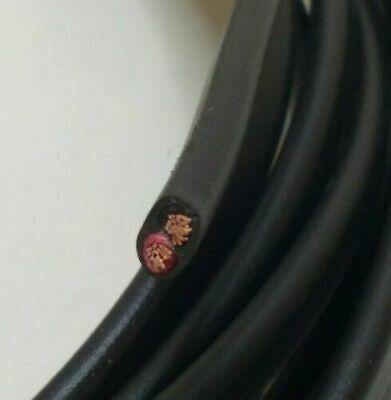

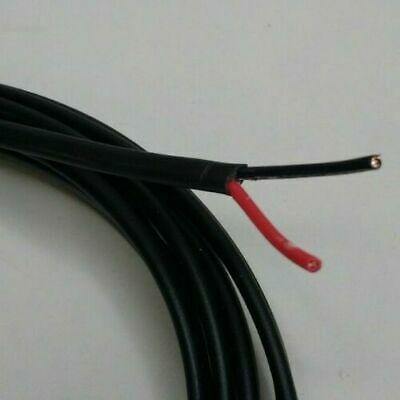

- Stranded copper conductors.
- The outer insulation is black pvc.
- Brand new sealed cable.
- High temperature thin wall auto cables to ISO 6722 Class B.
- Manufactured in accordance with BS6862 Part 1 1971, where applicable.
- Resistant to petrol, lubricating oils and diluted acids.
- Manufactured in the UK.
PVC 2 Core Cable, 100m
- Core Type PVC 2 Core Cable
- Conductor Specification (mm) 2 x 14/0.30
- Conductor Cross Section (mm²) 2 x 1.0
- Nominal Current Rating (Amps) 8.75
- Maximum Overall Dimensions (mm) 6.5 x 4.0
- Sheath Colour Black
- Core Colours Black, Red

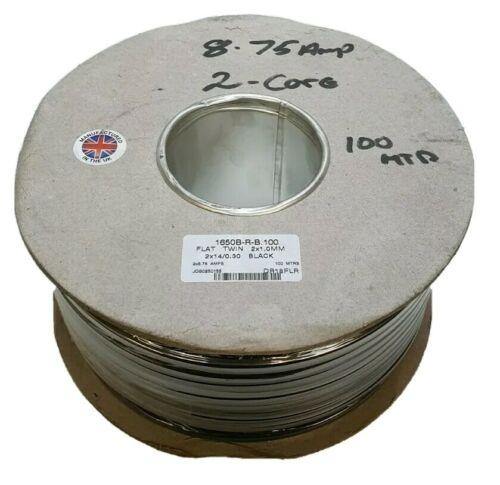

- Length 100 Meter Reel
Will fit
- Motorbike
- Car
- Motorhome
- Boat
- Tractor
- Lawnmower
UNIVERSAL
Below we have compiled a guide to help you decide which cable you need for your particular application
As a rule on a 12 volt system each Amp will allow you to run 12 watts, so the table shows amp to wattage conversion
Also we would advise for you to allow a little bit higher amperage from what you actually need to allow for power spikes etc. just to be on the safe side.
All our cable is of the highest quality & manufactured in the UK
1 amp = 12 watts
2 amp = 24 watts
3 amp = 36 watts
4 amp = 48 watts
5 amp = 60 watts
6 amp = 72 watts
7 amp = 84 watts
8 amp = 96 watts
9 amp = 108 watts
10 amp = 120 watts
11 amp = 132 watts
12 amp = 144 watts
13 amp = 156 watts
14 amp = 168 watts
15 amp = 180 watt
16 amp = 192 watts
17 amp = 204 watt
18 amp = 216 watts
19 amp = 228 watts
20 amp = 240 watts
21 amp = 252 watts
22 amp = 264 watts
23 amp = 276 watts
24 amp = 288 watts
25 amp = 300 watts
26 amp = 312 watts
27 amp = 324 watts
28 amp = 336 watts
29 amp = 348 watts
30 amp = 360 watts
