100X Blue Heat Shrink Straight Solder Crimp Connectors Waterproof Butt Terminals 16-14 AWG MURE SCCBx100

100X Blue Heat Shrink Straight Solder Crimp Connectors Waterproof Butt Terminals 16-14 AWG MURE

SCCBx100

Upgrade your electrical wiring projects with the 100-Pack Blue Waterproof Heat Shrink Solder Sleeve Connectors (SCCBx100). Designed for fast, reliable, and durable wire joinery, these all-in-one connectors perform soldering, insulating, and environmental sealing in a single heating step, eliminating the need for separate crimping tools or electrical tape.

Crafted with high-grade polyolefin tubing, hot-melt adhesive rings, and a pre-fluxed tinned copper solder core, these connectors deliver high pullout strength, excellent strain relief, and complete moisture protection for medium-duty automotive, marine, and industrial electrical systems.

Key Features & Specifications

• Wire Range: Fits 14-16 AWG cable (1.5-2.5mm²)
• All-in-One Joinery: Performs solder, insulation, and sealing in one easy heat application
• Waterproof & Weatherproof: Hot-melt adhesive liner provides IP67-grade seal against water, salt, and corrosion
• Durable Construction: Flame-retardant PE insulation sleeve with tinned copper solder core for superior electrical conductivity
• Safety & Compliance: CE certified for low-voltage applications (< 50 VAC / 75 VDC)
• Quantity: 100 Pieces per pack

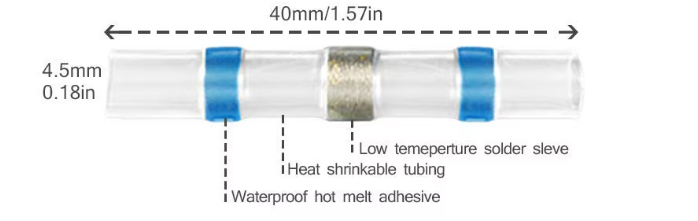

Detailed Dimensions & Technical Specifications

• Colour: Blue
• Suitable Wire Size: 16-14 AWG (1.5-2.5mm²)
• Total Length (L min.): 40 mm
• Connector Inner Diameter (A min.): 4.5 mm
• Wire Entry Diameter (B min.): 2.3 mm
• Max Wire Cable Outer Diameter (B & C max.): 4.5 mm
• Solder Ring Inner Diameter (C min.): 2.0 mm
