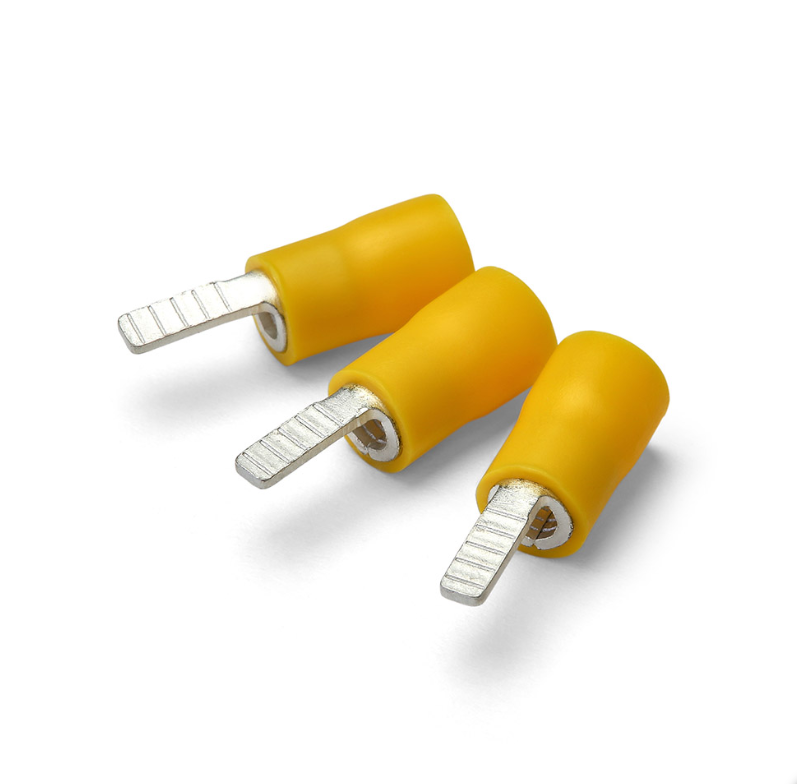

100x Pre Insulated Blade Terminals Yellow PVC, Copper Tin 4 - 6mm Wire 10mm Long Stud CTIE T3BL10

100x Pre Insulated Blade Terminals Yellow PVC, Copper Tin 4 - 6mm Wire 10mm Long Stud CTIE

T3BL10

Product Details:

• Wire Size Compatibility: Designed for use with wire sizes ranging from 4 mm² to 6 mm².
• Stud Size: Features a 10mm long stud, ideal for various terminal block and connector applications.
• Pack Quantity: Supplied in convenient packs of 100 pieces.

Technical Specifications:

• Material (Insulation): Durable PVC.
• Material (Terminal): Electro-tin plated Copper.
• Material (Plating): Tin plating for enhanced corrosion resistance and conductivity.
• Maximum Temperature: Rated for a maximum temperature of +75°C.
• Maximum Electrical Rating: 600V
• Compliance: RoHS Compliant, ensuring environmental safety standards are met.

Another Top Quality Product From CTIE (A UK Company)
