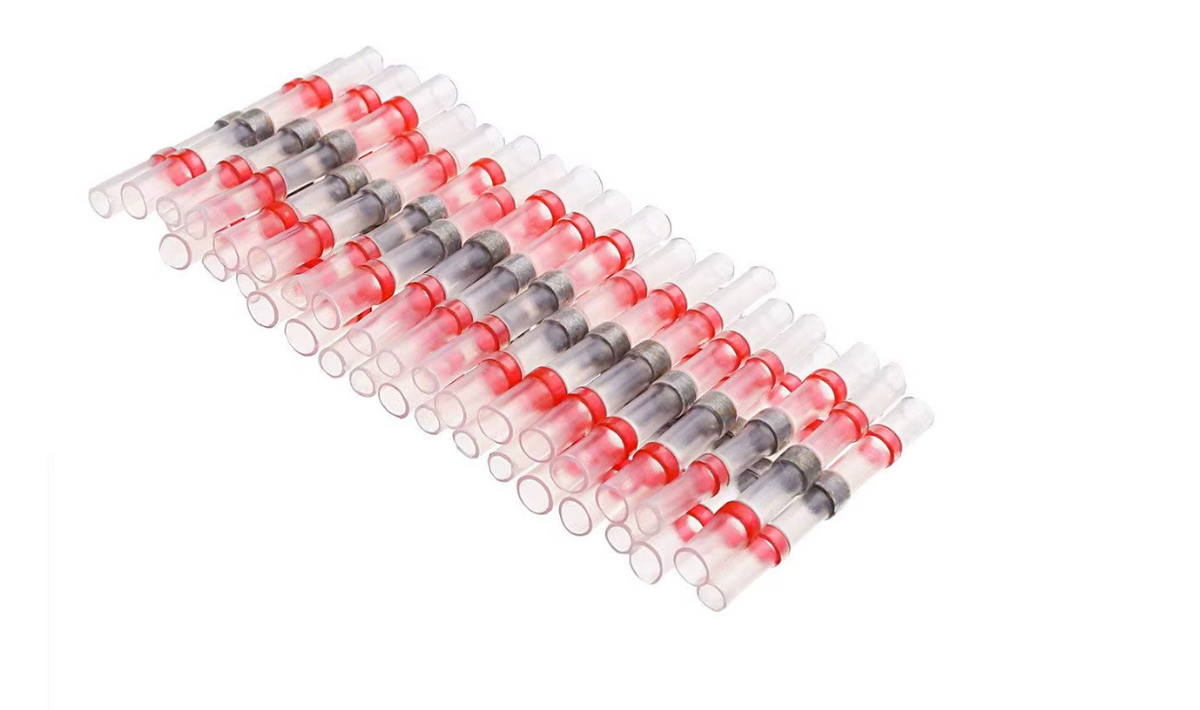

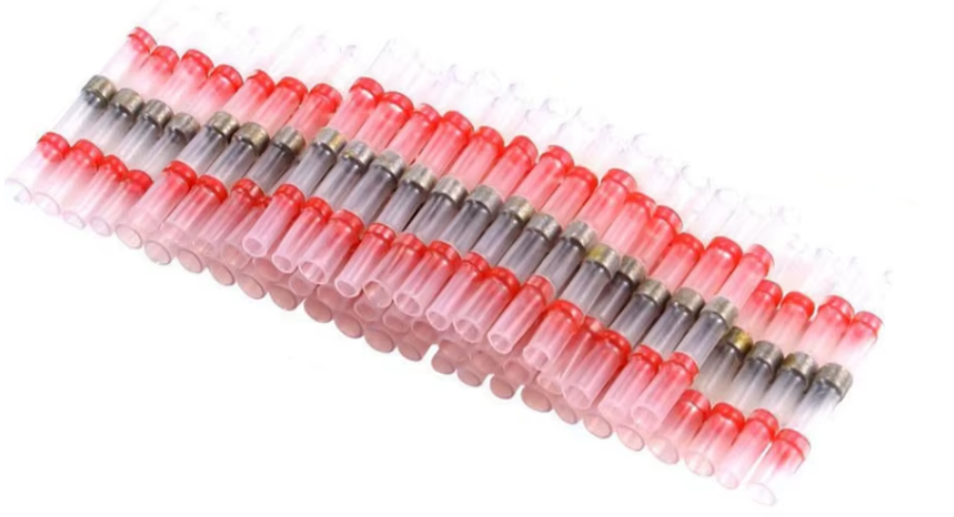

100X Red Heat Shrink Straight Solder Crimp Connectors Waterproof Butt Terminals 18-22 AWG MURE SCCRx100

100X Red Heat Shrink Straight Solder Crimp Connectors Waterproof Butt Terminals 18-22 AWG MURE

SCCRx100

Upgrade your electrical wiring projects with the MURE 100-Pack Red Waterproof Heat Shrink Solder Sleeve Connectors SCCRx100. Designed for fast, reliable, and durable wire joinery, these all-in-one connectors perform soldering, insulating, and environmental sealing in a single heating step, eliminating the need for separate crimping tools or electrical tape.

Crafted with high-grade polyolefin tubing, hot-melt adhesive rings, and a pre-fluxed tinned copper solder core, these connectors deliver high pullout strength, excellent strain relief, and complete moisture protection for low-voltage automotive, marine, and industrial electrical systems.

Key Features & Specifications

• Wire Range: Fits 18–22 AWG cable (0.5-1.0mm)
• All-in-One Joinery: Solvers solder, insulation, and sealing in one easy heat application
• Waterproof & Weatherproof: Hot-melt adhesive liner provides IP67-grade seal against water, salt, and corrosion
• Durable Construction: Flame-retardant PE insulation sleeve with tinned copper solder core for superior electrical conductivity
• Safety & Compliance: CE certified for low-voltage applications (<50 VAC/75 VDC)
• Quantity: 100 Pieces per pack

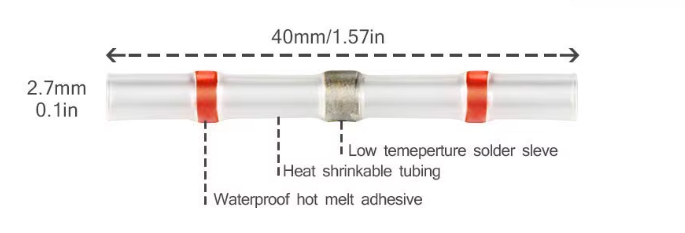

• Total Length (L min.): 40 mm
• Connector Inner Diameter (A min.): 2.7 mm
• Wire Entry Diameter (B min.): 1.4 mm
• Max Wire Cable Outer Diameter (B & C max.): 2.7 mm
• Solder Ring Inner Diameter (C min.): 1.2 mm

Ideal Applications

• Automotive & Off-Road: Harness repairs, auxiliary lights, sensor wiring, and trailer connections
• Marine & Boats: Bilge pumps, marine audio, navigation lights, and outdoor electronics exposed to saltwater
• DIY & Commercial: Agricultural machinery, commercial vehicle maintenance, and home low-voltage wiring projects
