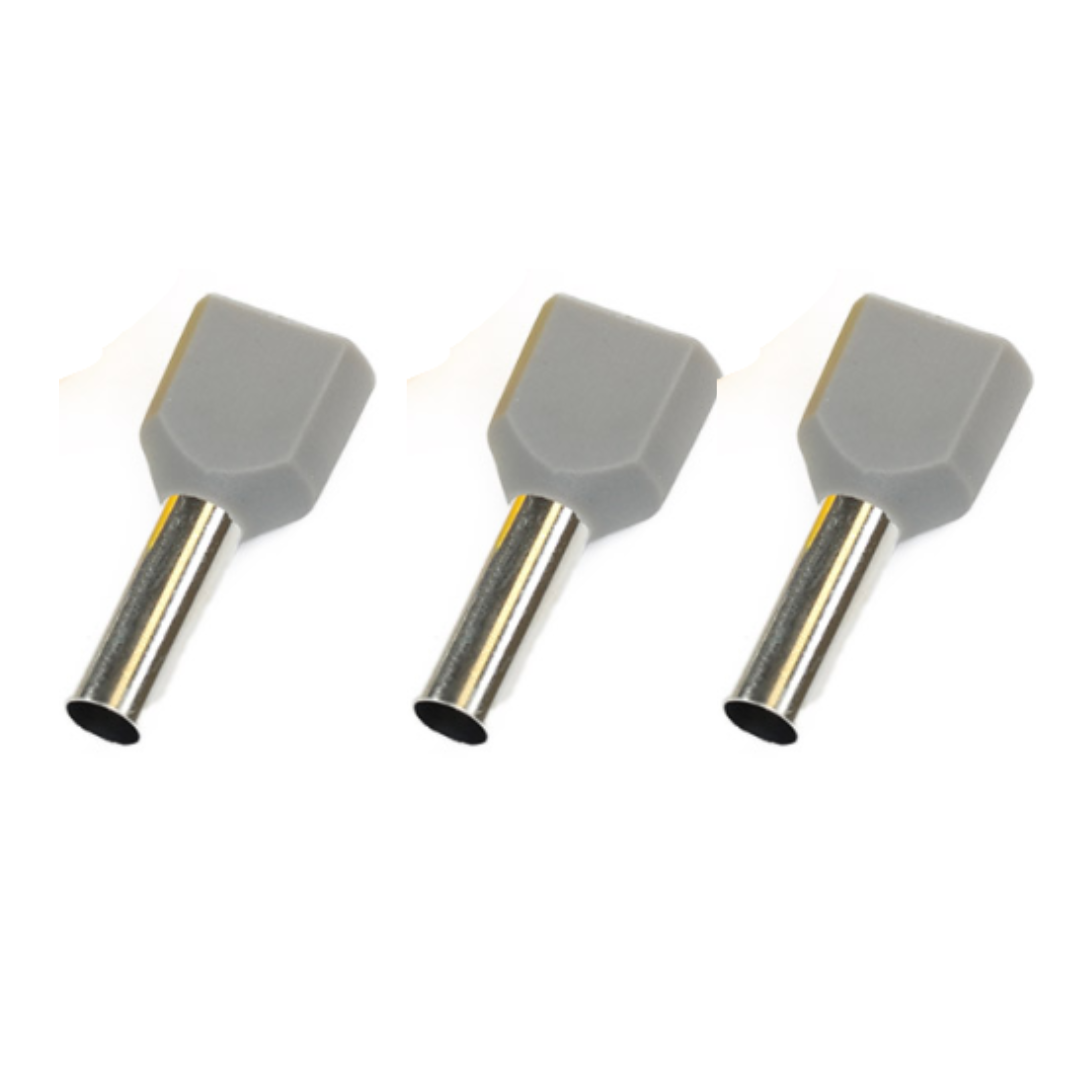

100x Twin Entry Cord End Terminals Grey PVC, Copper Tin 0.75mm Wire 8mm Long Barrel
DCET0.75
Product Details:
- Design: Insulated twin entry cord end ferrules for terminating two cables in the same sleeve. Flared barrels for easy wire insertion.
- Wire Size Compatibility: Designed for use with wire size of 0.75mm.
- Stud Size: Features a 8mm long barrel, Ideal solution for wire terminations into connector blocks.
- Pack Quantity: Supplied in convenient packs of 100 pieces.
Technical Specifications:
- Material (Insulation): PVC.
- Material (Terminal): Electro-tin plated Copper.
- Material (Plating): Tin plating for enhanced corrosion resistance and conductivity.
- Operating Temperature: -40°C up to +105°C.
- Maximum Electrical Rating: 300V
- Compliance: RoHS Compliant, ensuring environmental safety standards are met.
Another Top Quality Product From CTIE (A UK Company)
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
