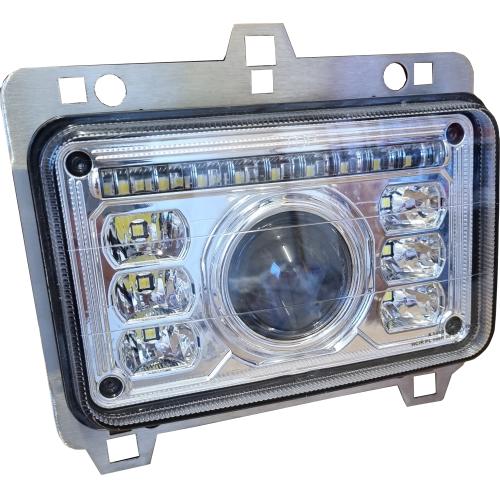

102 Watt LED High & Low Beam Headligt with DRL& Brackets, 5760 Lumen LED GLOBAL LG838

102 Watt LED High & Low Beam Headligt with DRL& Brackets, 5760 Lumen

LG838

General Characteristics

• Housing: Powder coatedaluminum
• 60w High Beam
• 30w Low Beam
• 12w DRL ( Daytime Running Light)
• 9/32V
• 50,000h
• E Mark Certificate
• IP68
• ECE R10, ECE R112, ECE R148 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With H4 Plug & Play Connection
• Dimensions 165 x 105 x 80mm

Technical Light Properties

• Light color: Cold white
• Ireland / UK Headlight
• Color temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 60 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 5,760 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 165 mm
  Lamp height: 105 mm
  Lamp thickness: 80 mm

O.E.M Ref:

• 3809346M91, 3824712M91,3713798M91 3713799M91,72514546 D45080006
• Hella: 1AB003177611 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91,
• 3550746M91 , 3550746M92, 3550747M91, 3550747M92, 1693943M93,

COMPATIBLE WITH THE FOLLOWING:

Case IH

• CS100 (CS Series) , CS110 (CS Series) , CS120 (CS Series) , CS130 (CS Series) , CS150 (CS Series)

Claas

• ARES 540 RX , ARES 546 RX , ARES 550 RX , ARES 556 RX , ARES 566 RX , ARES 610 RX , ARES 616 RX ,
• ARES 620 RX , ARES 626 , ARES 630 RX , ARES 636 , ARES 640RZ ,ARES 656 RZ , ARES 696 RZ

Fendt

• 916 VARIO (916) , 920 VARIO (920) , 924 VARIO (924) , 926 VARIO (926) , 930 VARIO (930)

Fiat

• M100 (M Series) , M115 (M Series) , M135 (M Series) , M160 (M Series)

Ford New Holland

• 5640 (40 Series) , 6640 (40 Series) , 7740 (40 Series) , 7840 (40 Series) , 8160 (60 Series ) , 8240 (40 Series) ,
• 8260 (60 Series ) , 8340 (40 Series) , 8360 (60 Series ) , 8560 (60 Series ) , TM115 (TM Series) , TM120 (TM Series) ,
• TM125 (TM Series) , TM130 (TM Series) , TM135 (TM Series) , TM140 (TM Series) , TM150 (TM Series) , TM155 (TM Series) ,
• TM165 (TM Series) , TM175 (TM Series) , TM190 (TM Series)

Massey Ferguson

• (3000 Series), 3050, 3055, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095,
• (3100 Series), 3115, 3120, 3125, 3140
• (300 Series), 340, 342, 350, 352, 360, 365, 372, 374, 375, 382, 384, 387, 390, 390T, 396, 397, 398, 399,
  (3600 Series), 3610, 3615, 3625, 3630, 3635, 3645, 3650, 3655, 3660, 3670, 3680, 3690
• 4225 (4200/4300 Series) , 4235 (4200/4300 Series) , 4240 (4200/4300 Series) , 4245 (4200/4300 Series) , 4255 (4200/4300 Series) ,
• 4260 (4200/4300 Series) , 4265 (4200/4300 Series) , 4270 (4200/4300 Series) , 4315 (4200/4300 Series) , 4320 (4200/4300 Series),
• 4325 (4200/4300 Series) , 4335 (4200/4300 Series) , 4345 (4200/4300 Series) , 4355 (4200/4300 Series) , 4360 (4200/4300 Series) ,
• 4365 (4200/4300 Series) , 4370 (4200/4300 Series) , 6235 (6200 Series) , 6245 (6200 Series) , 6255 (6200 Series) , 6260 (6200 Series) ,
• 6265 (6200 Series) , 6270 (6200 Series) , 6280 (6200 Series) , 6290 (6200 Series) , 8210 (8200 Series) , 8220 (8200 Series) ,
• 8240 (8200 Series) , 8250 (8200 Series) , 8260 (8200 Series),3809346M91, 3824712M91, 3713798M91 , 3713799M91 , 72514546,
• D45080006 , Hella: 1AB003177611 , 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91, 3550746M91 ,
• 3550746M92, 3550747M91, 3550747M92, 1693943M93,

Renault

• 110-14 (12-14 Series) , 110-54 (52-54 Series) , 113-12 (12-14 Series) , 113-14 (12-14 Series) , 120-14 (12-14 Series) , 120-54 (52-54 Series) ,
• 133-14 (12-14 Series) , 133-54 (52-54 Series) , 145-14 (12-14 Series) , 145-54 (52-54 Series) , 155-54 (52-54 Series) , 160-94 , 175-74 , 180-94 ,
• Ares 540 (Ares) , Ares 546 (Ares) , Ares 550 (Ares) , Ares 556 (Ares) , Ares 566 (Ares) , Ares 610 (Ares) , Ares 616 (Ares) , Ares 620 (Ares) ,
• Ares 626 (Ares) , Ares 630 (Ares) , Ares 636 (Ares) , Ares 640 (Ares) , Ares 656 (Ares) , Ares 696 (Ares) , Ares 710 (Ares) , Ares 715 (Ares) ,
• Ares 720 (Ares) , Ares 725 (Ares) , Ares 735 (Ares) , Ares 815 (Ares) , Ares 816 (Ares) , Ares 825 (Ares) , Ares 826 (Ares) , Ares 836 (Ares) ,
• ATLES 915 , ATLES 925 , ATLES 926 , ATLES 935 , ATLES 936 ,Temis550 (Temis) ,Temis610 (Temis) ,Temis630 (Temis) ,Temis650 (Temis)

Steyr

• 9105 , 9115 , 9125 , 9145 , CVT 120 , CVT 130 , CVT 150 , CVT 170

John Deere

• AL152328, RE269110, AL152329
