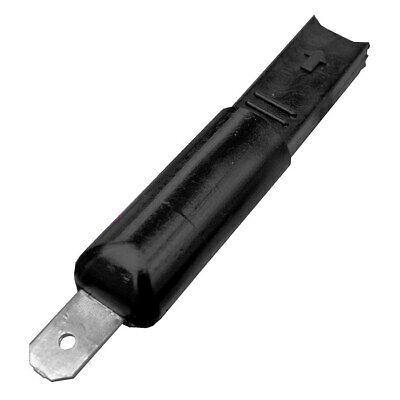

• Black electrical diode connector with a silver metal spade terminal

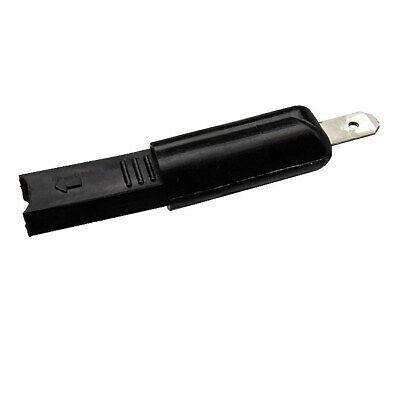

  • Black plastic electrical wire terminal connector sleeve with exposed metal pin
  • Black plastic and metal electrical connector with a flat blade terminal designed for secure connections

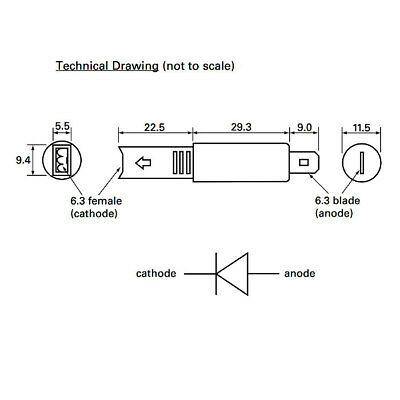

  • Technical drawing of a component with 6 3 female cathode and 6 3 blade anode connections with dimensions

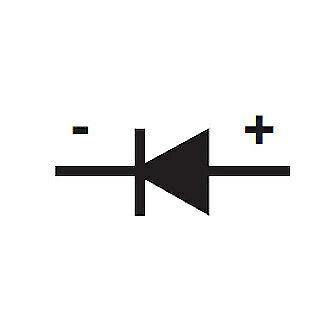

  • Black diode circuit schematic symbol with positive and negative polarity markings on a white background
1 5

10A In-Line Diode Adaptor 50V Universal With 6.3Mm Spade Blade Durite 0-834-10

Vendor:Durite

Availability: 14 in stock

Product Type:0-834-10

Product Indentifier:7426994726307

£5.00 inc VAT £4.17 ex VAT
£5.99 £5.00 inc VAT £4.17 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Universal In-Line Blocking Diode 10A 50V DC With 6.3mm Spade Terminals

0-834-10

* Supplied Individually *

Specification

  • Type - In-line silicon diode
  • Voltage - Max reverse voltage 50 volts/Max forward voltage 0.9 volts
  • Current -Max forward current 10A/Max leakage current <25µA
  • Termination - Anode 6.3mm blade terminal/Cathode 6.3mm female push-on terminal
  • Operating junction temp - -50˚ to +175˚C (at 25˚C ambient temp)
  • Case - Nylon 6.6
  • Weight - 5g
  • Dimensions - See diagram in Pictures



Additional information

  • For current to flow the diode must be forward biased by connecting the anode to positive and cathode to negative.
