12 Point Battery Power Distribution Double Row Single Point 180amp Black 12V 24V 48V MURE BB120DB

12 Point Battery Power Distribution Double Row Single Point 180amp Black 12V 24V 48V MURE

BB120DB

Streamline your vehicle or marine electrical system with this heavy-duty, 12-terminal power distribution block. Designed for high-current applications, this black bus bar provides a safe and organized central point for managing complex wiring harnesses in 12V, 24V, or 48V systems.

Technical Specifications

• Maximum Voltage: Supports up to 48V DC.
• Total Block Rating: 180A maximum capacity.
• Individual Terminal Rating: 15A per connection.
• Materials: Constructed from durable ABS, zinc alloy, and brass for optimal conductivity and longevity.
• Color: Black

Key Features

• High-Capacity Distribution: Capable of handling a total load of 180A, making it ideal for high-draw accessories like winches, inverters, and lighting arrays.
• Organized Wiring: Designed to bring your wiring harness together for reasonable storage and a professional finish inside your engine bay or cabin.
• Robust Construction: The combination of zinc alloy and brass ensures low resistance and high corrosion protection in harsh environments.

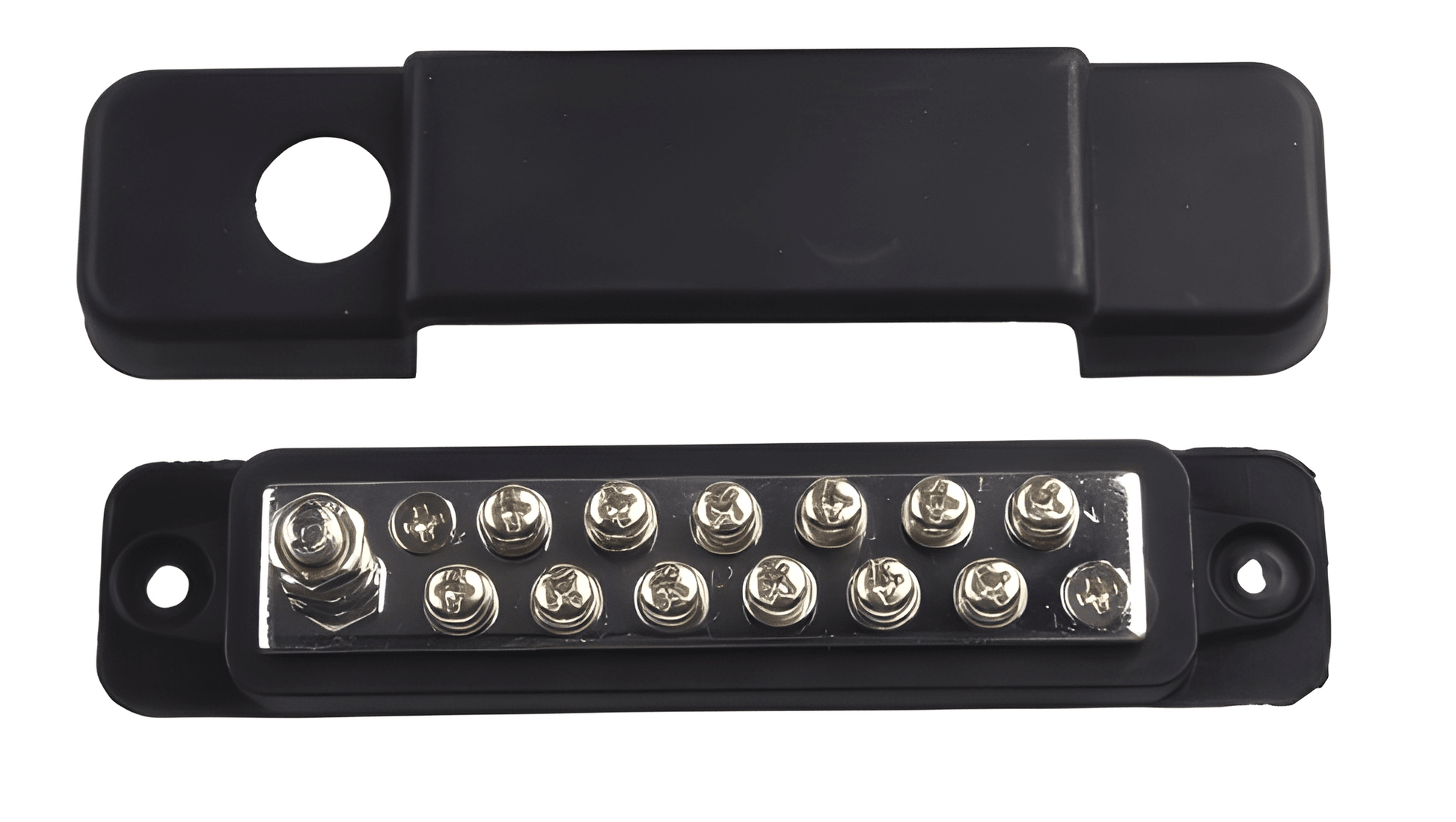

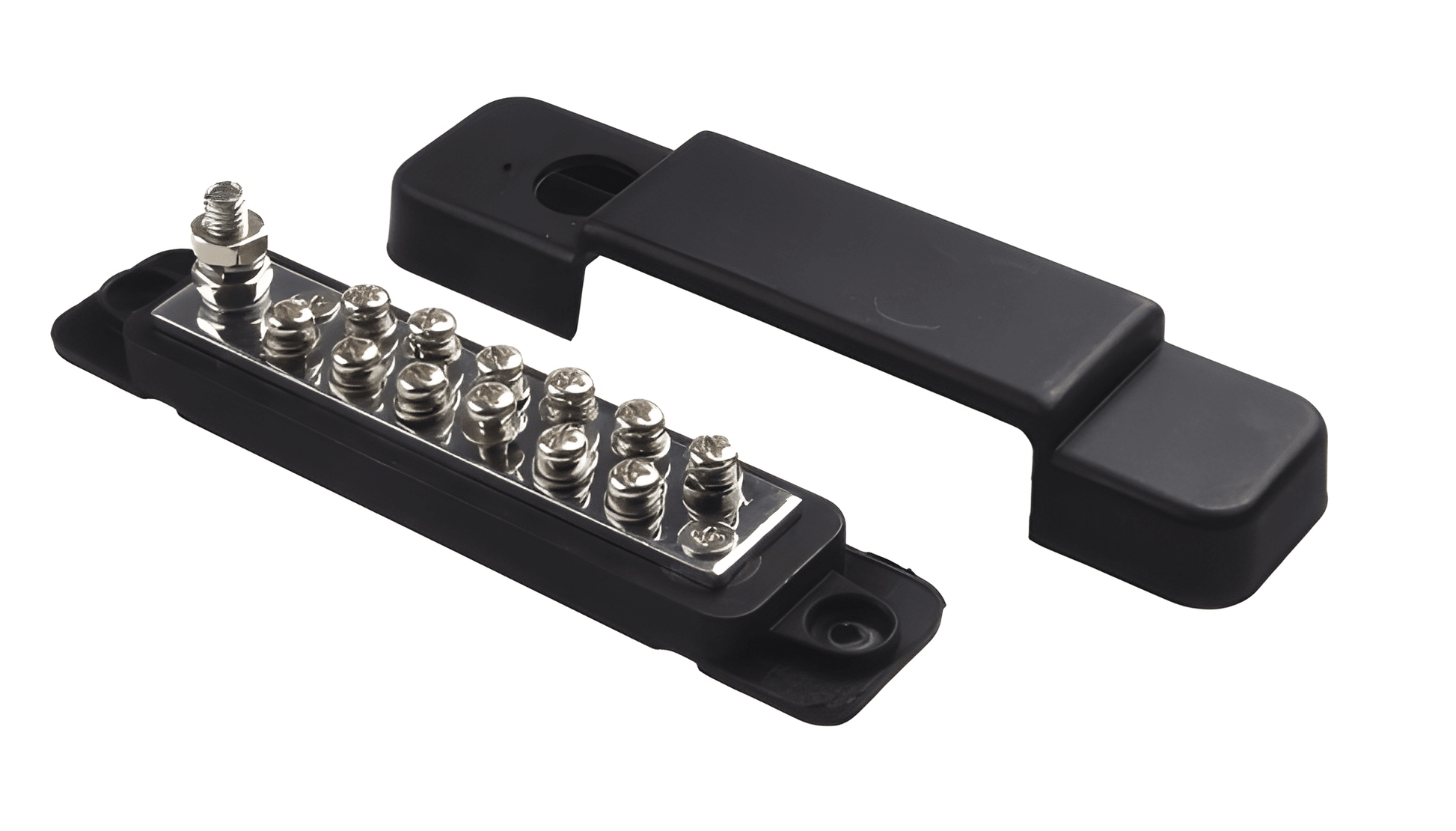

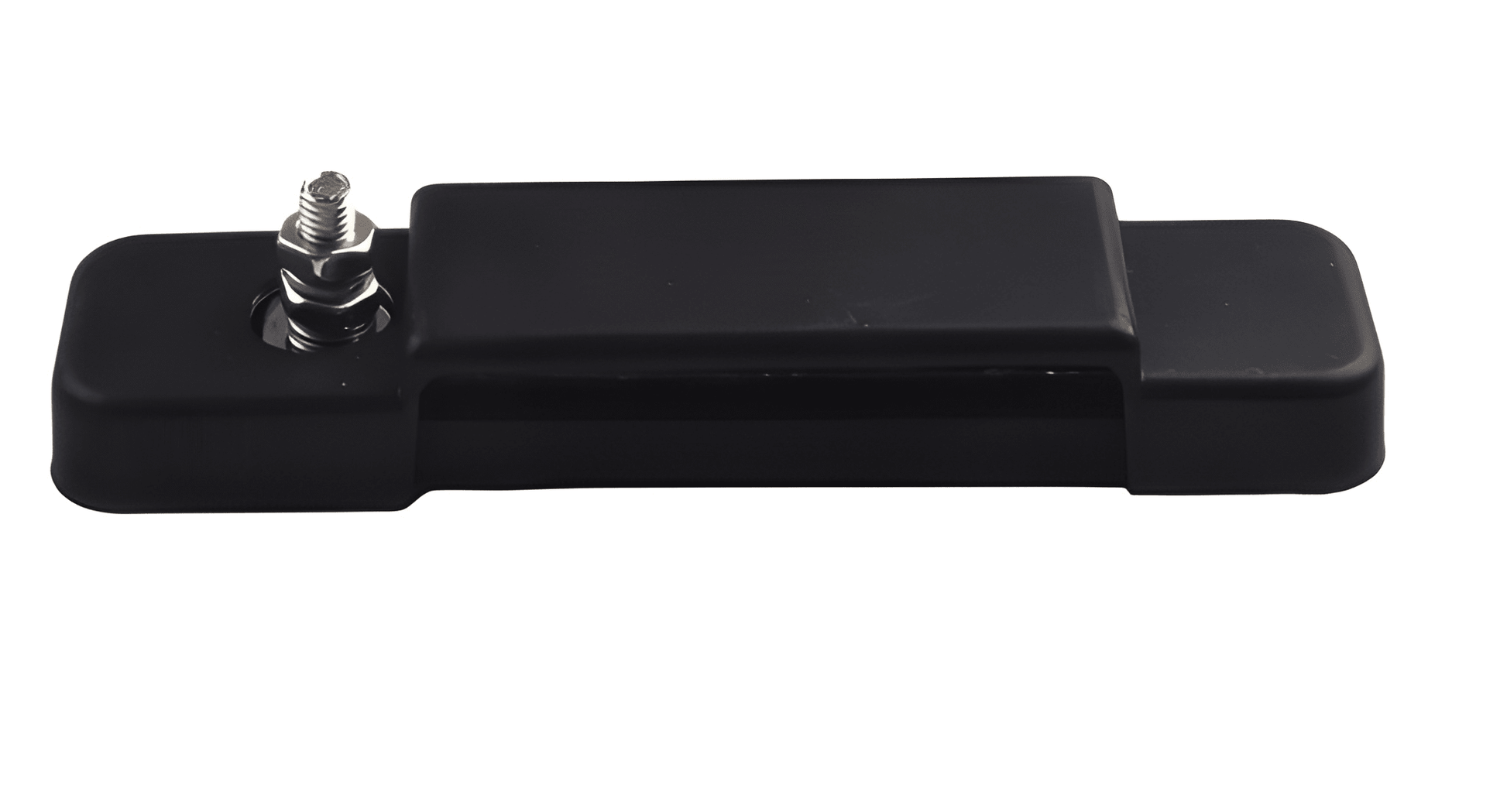

• Protective Cover Included: Features a high-quality sheath to protect terminals from accidental shorts and environmental debris.

Application

This distribution block is engineered for use in demanding power systems, including:

• Automotive: Cars, trucks, and off-road 4x4 vehicles.
• Leisure: RVs, motorhomes, and campervans.
• Marine: Ships, yachts, and fishing boats.
