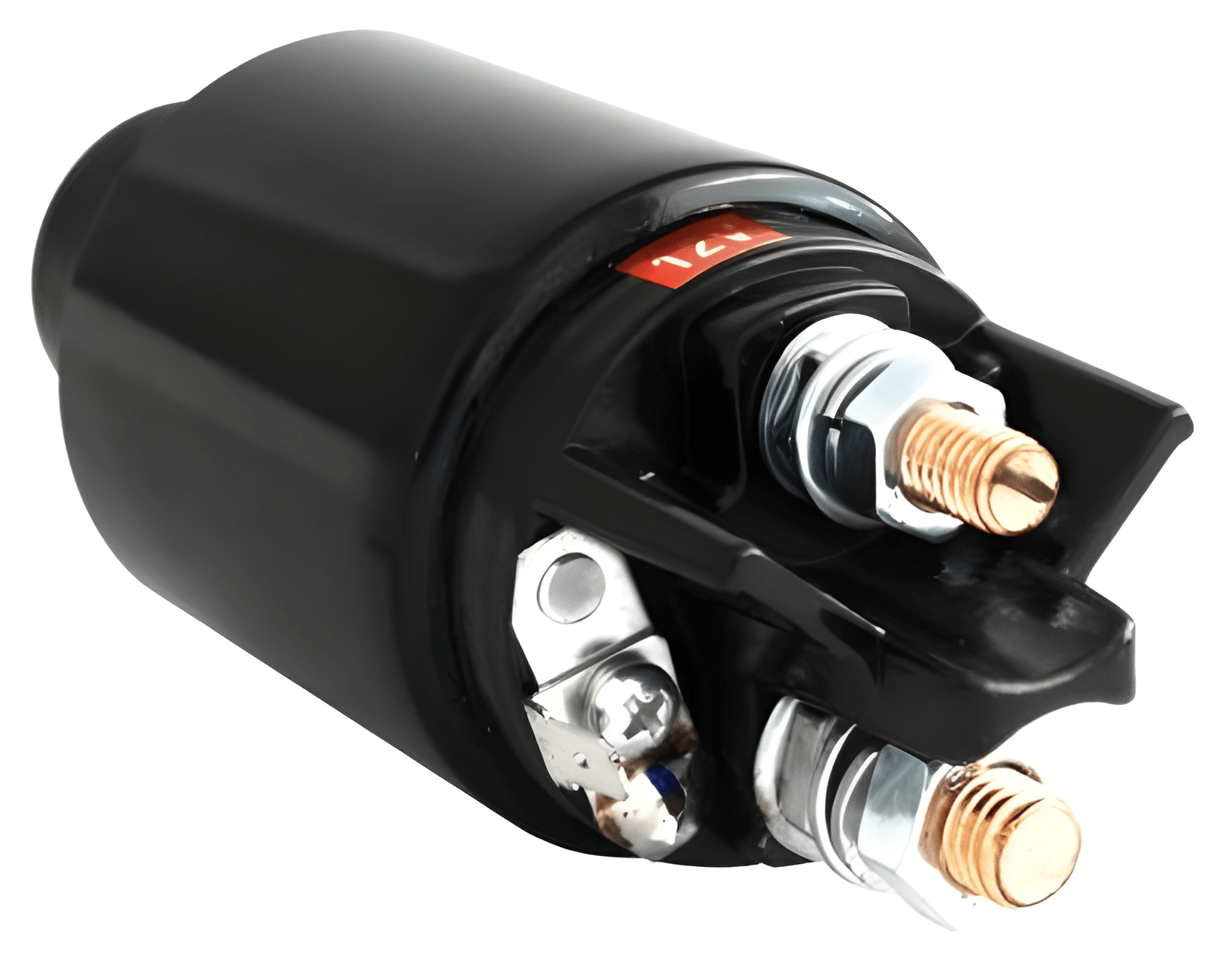

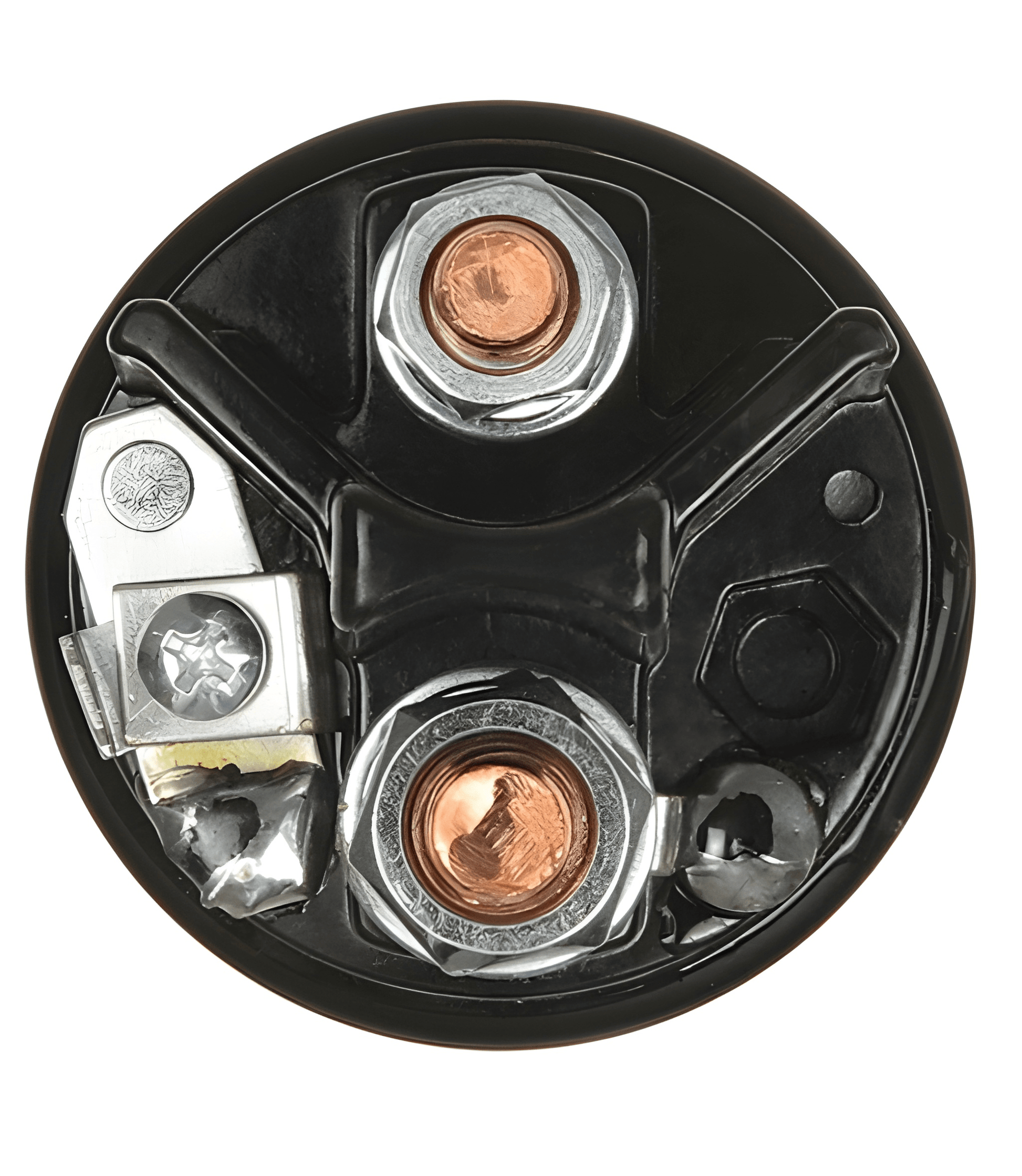

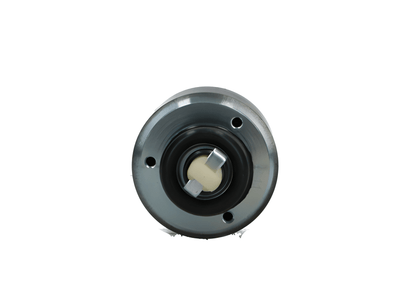

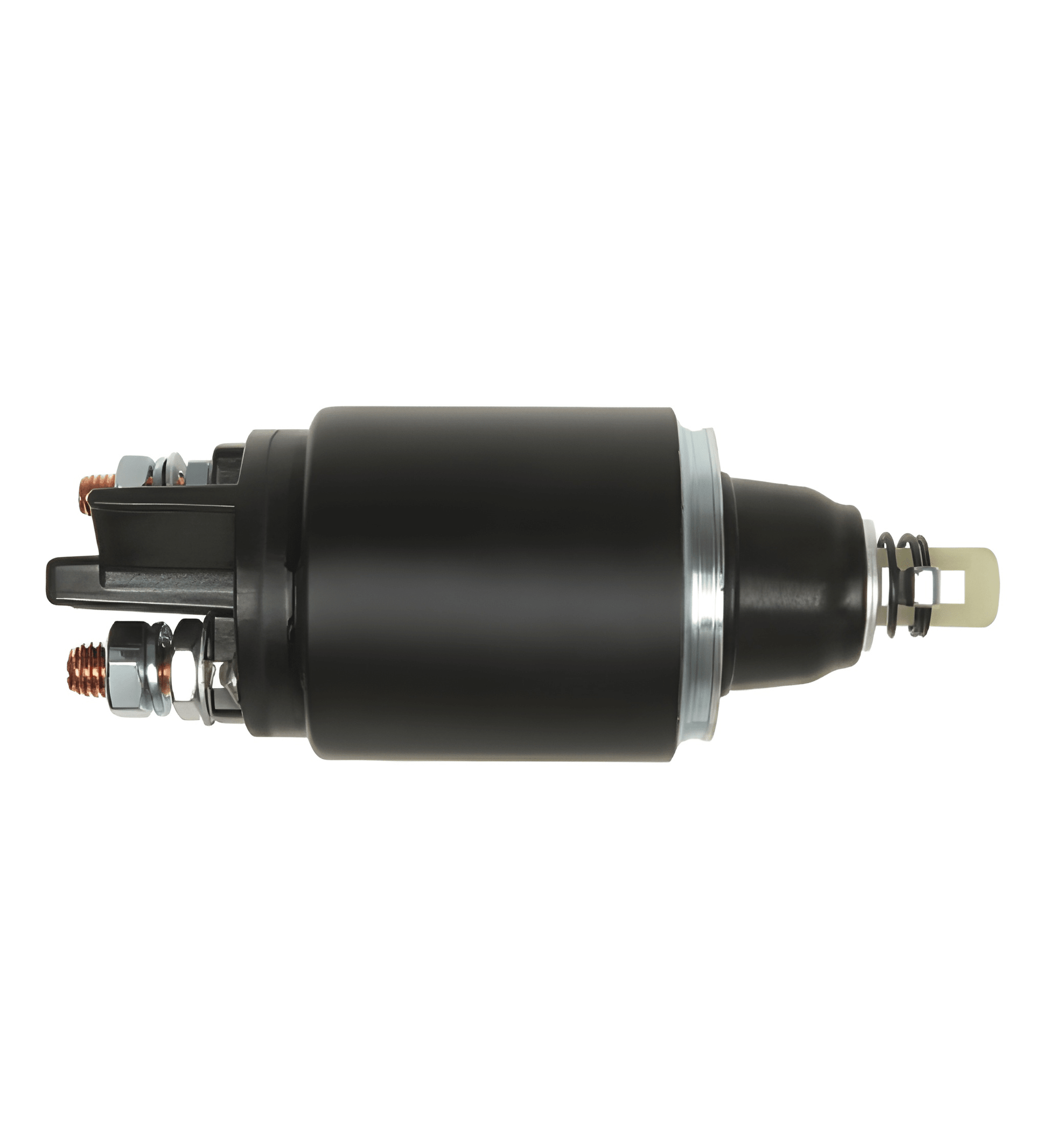

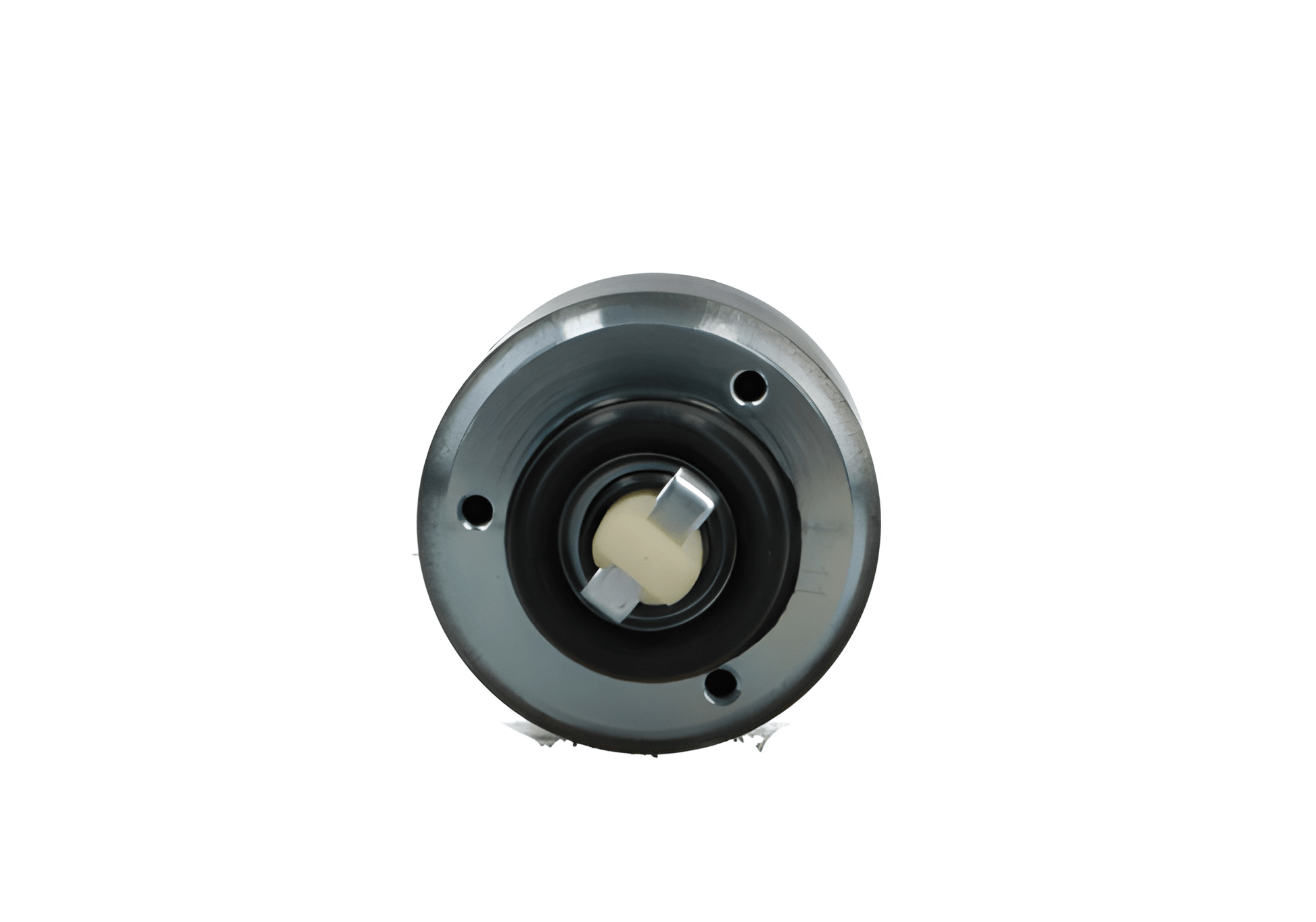

12 Volts Starter Solenoid Fits Iskra Letrika Mahle Starter Motors B+ Terminal M8 Wood Auto MSX100

12 Volts Starter Solenoid Fits Iskra Letrika Mahle Starter Motors B+ Terminal M8 Wood Auto MSX100

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:MSX100

Product Indentifier:7426994758032

£35.11 inc VAT £29.26 ex VAT
£41.99 £35.11 inc VAT £29.26 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12 Volts Starter Solenoid Fits Iskra Letrika Mahle Starter Motors B+ Terminal M8 Wood Auto MSX100

MSX100

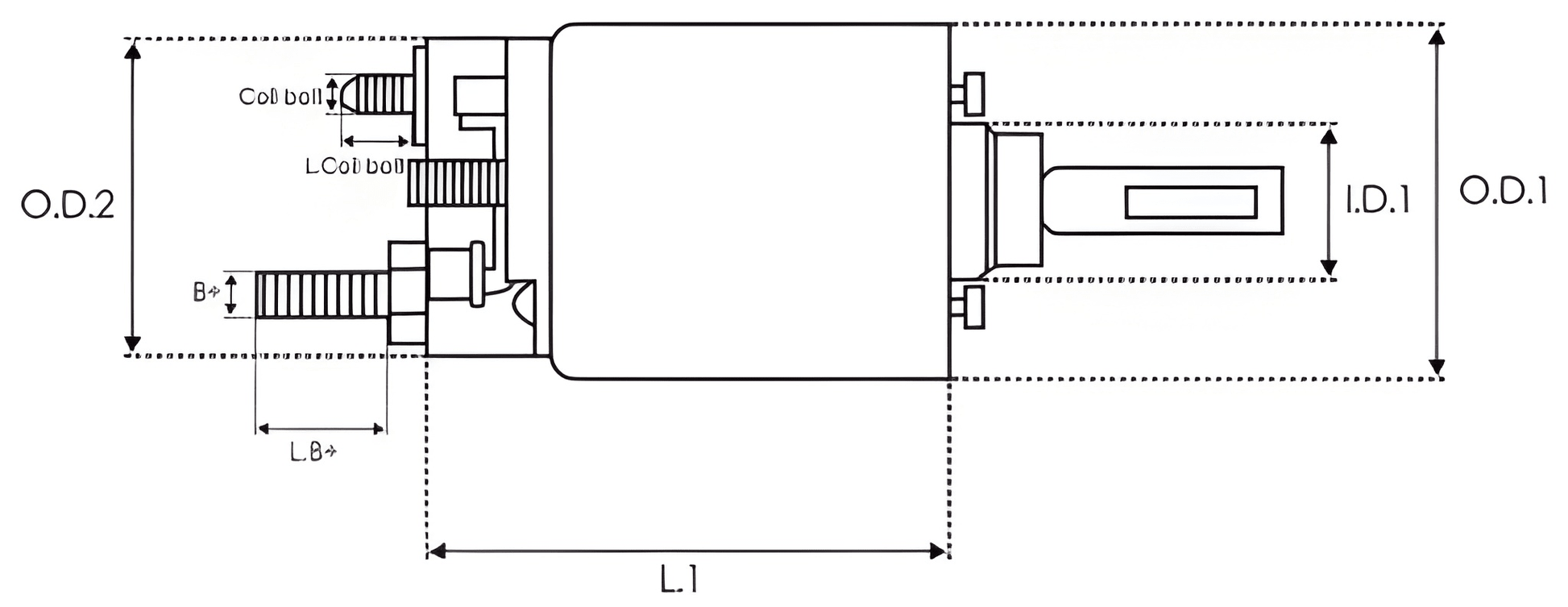

Product Specifications:

  • Volage: 12V
  • O.D.1 (mm): 62.00
  • O.D.2 (mm): 53.70
  • L.1 (mm) 86.30
  • B+ (mm): M8x1.25
  • L.B+(mm): 24.10
  • Coil Boilt(mm): M10x1.5
  • L.Coil Bolt(mm): 25.70

Cross Reference:

  • 16.915.042    ISKRA / LETRIKA
  • 72736922    MAHLE
  • MAHMSX100KIT    WOODAUTO
  • MSX100KIT    MAHLE
  • MSX100    MAHLE
  • SSI4183    KRAUF
  • 054.000.996.090    PSH
  • 054.000.996.310    PSH
  • UD48367SS    AS-PL
  • SOL79173    ELECTROLOG
  • MSX100

Another Quality Product From Wood Auto

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
