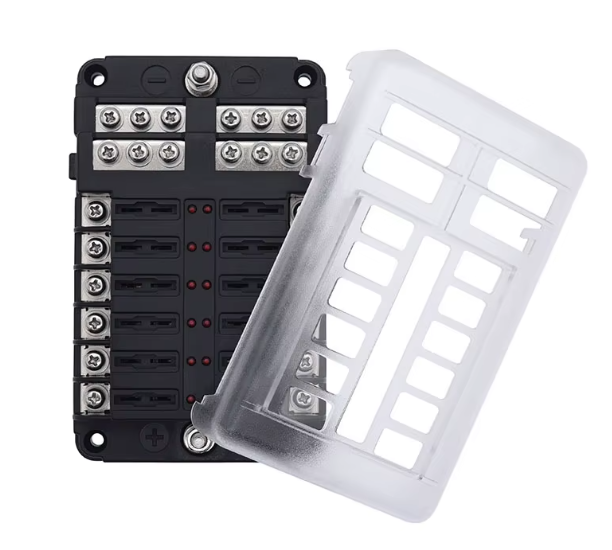

12 Way Blade Fuse Box Holder Led 12V / 24V Standard Ato Circuit With Busbar Mure FUH1739LB

12 Way Blade Fuse Box Holder Led 12V / 24V Standard Ato Circuit With Built In Busbar

FUH1739LB

Description:

• Total Max Continuous Rating 100A

• LED Standard Blade FuseBox, 12-way
• Blade terminal connections: 12 x 6.3mm
• simply connect 1 main power cable to the stud at the front of the fuse box
• A Red LED indicator glows when the fuse has blown
• Voltage(Max.): 32VDC

• Input Terminial Rating: 5mm threaded stud (100A max.)

• Output Terminial Rating: 30A max.per circuit

• Connection Pad Option Available: Input wire size:#4-6AWG

• Output wire size:#12-16 AWG

• Fuse Specifications: For Blade Fuses Used Only

• Torque Rating: 20 in-lb(2.25Nm)max

• Mounting Torque Rating: 8 in-lb(0.9Nm)max

• Temperature Rating: -20 degrees to 85 degrees )

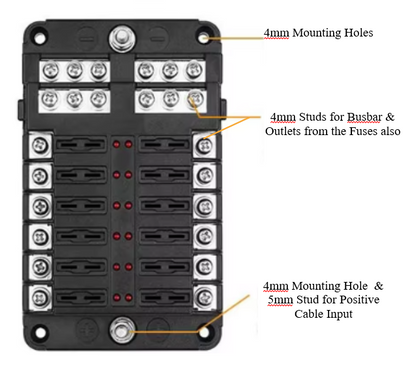

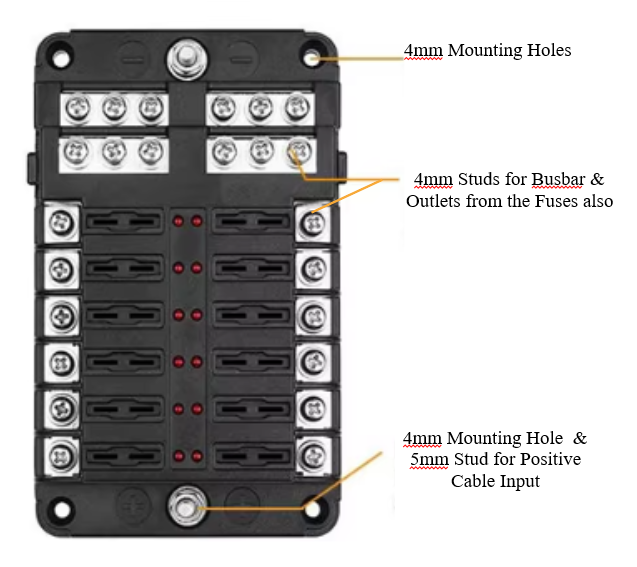

• Built in Busbars For Negative Connections (4mm Studs & 5mm Input)
• Comes With a Selection of Sticky Labels so You Can Label Your Fuses On The Lid
