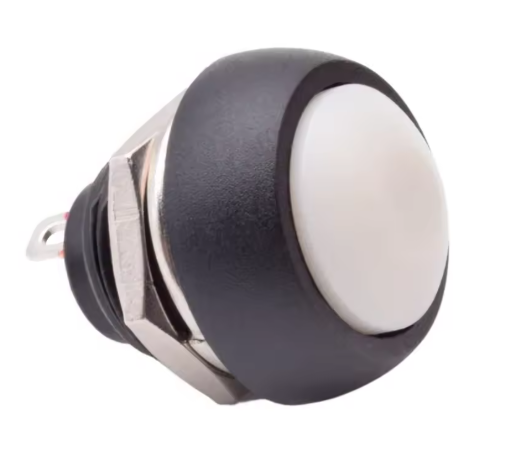

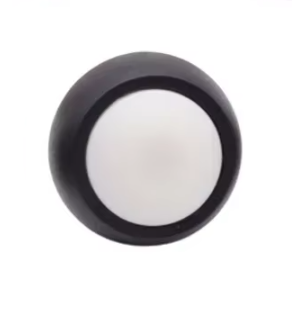

12mm Small White Plastic Push Button Round Head ON OFF Momentary Switch 2 Pin MURE
K5893WT
Product Description:
- Commonly used on machine joysticks
-
Mounting Hole Diameter: 12mm
-
Color: White
- Rating: 3A - 24V, 6A - 12V DC (Use a relay for higher loads)
-
Contact Resistance: 20mΩ max
- Switch Function: Momenatry Push to make (Self Reset)
- Electric Shock Resistance: less than 50m ohm
- Insulation Resistance: 500VDC 1000mΩ min
- Dielectric Strength: 1000VAC ,1Minute
- Electrical Life: 50,000 Cycles
- 2 Small solder terminals for wire connection
