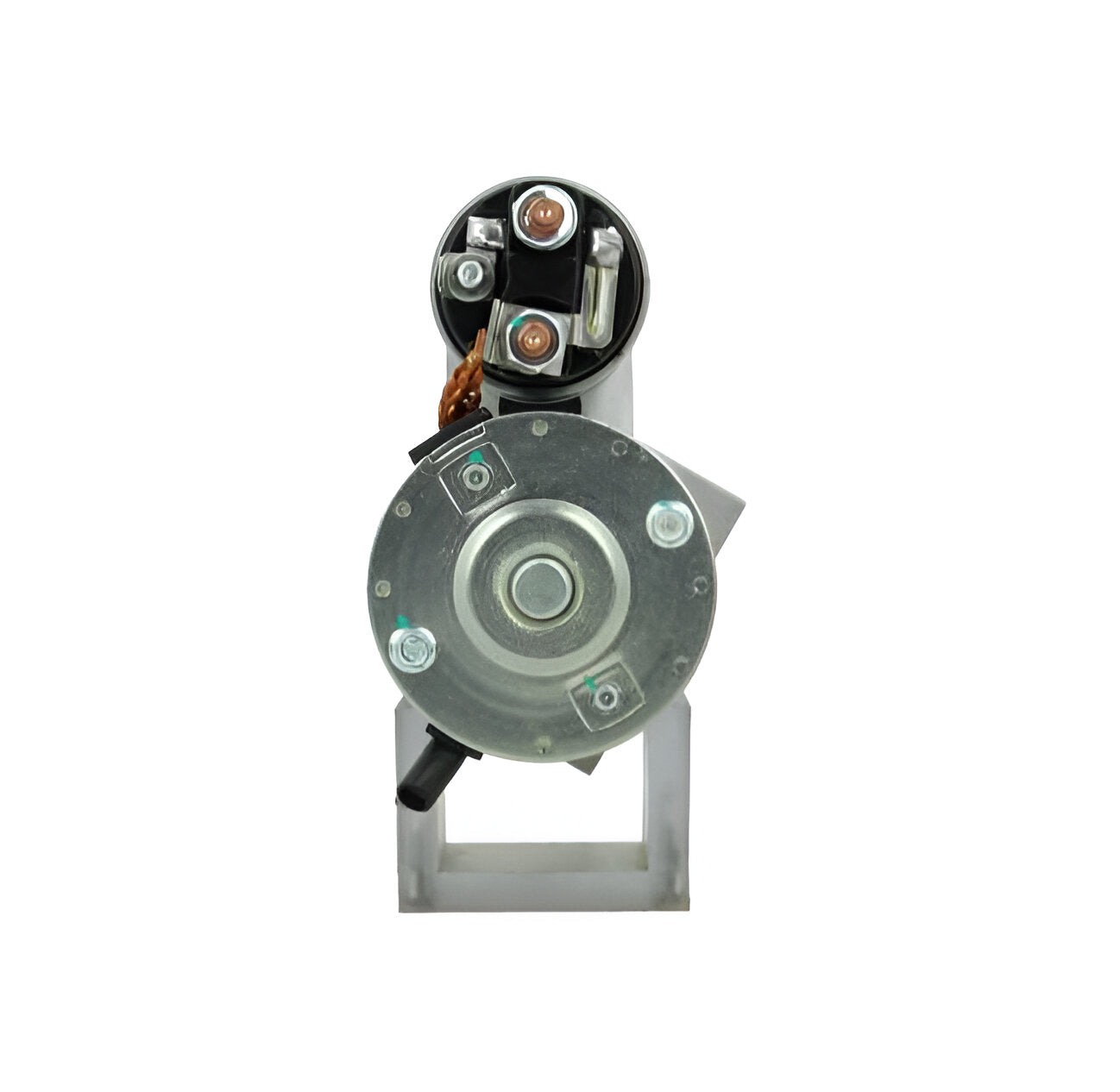

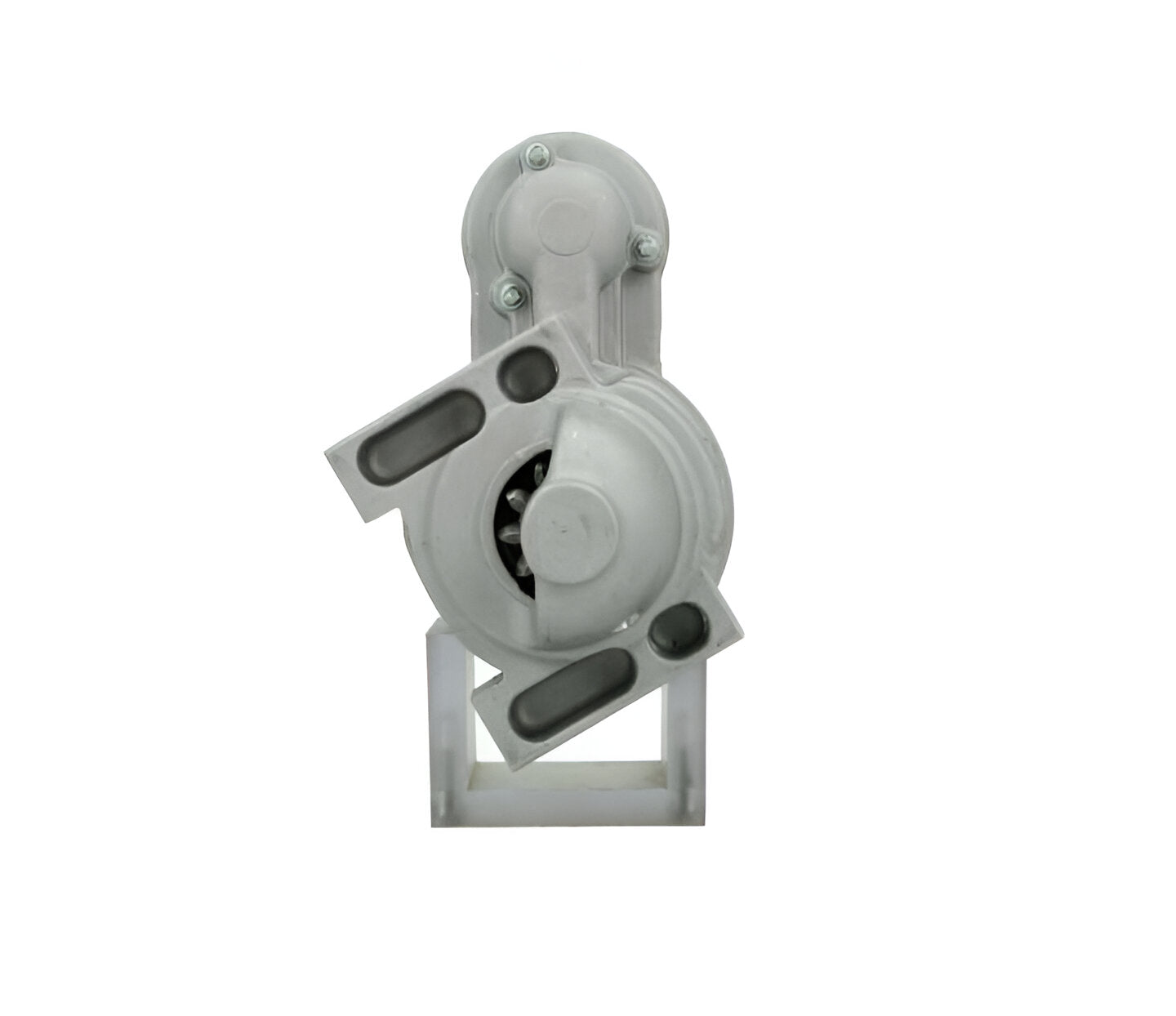

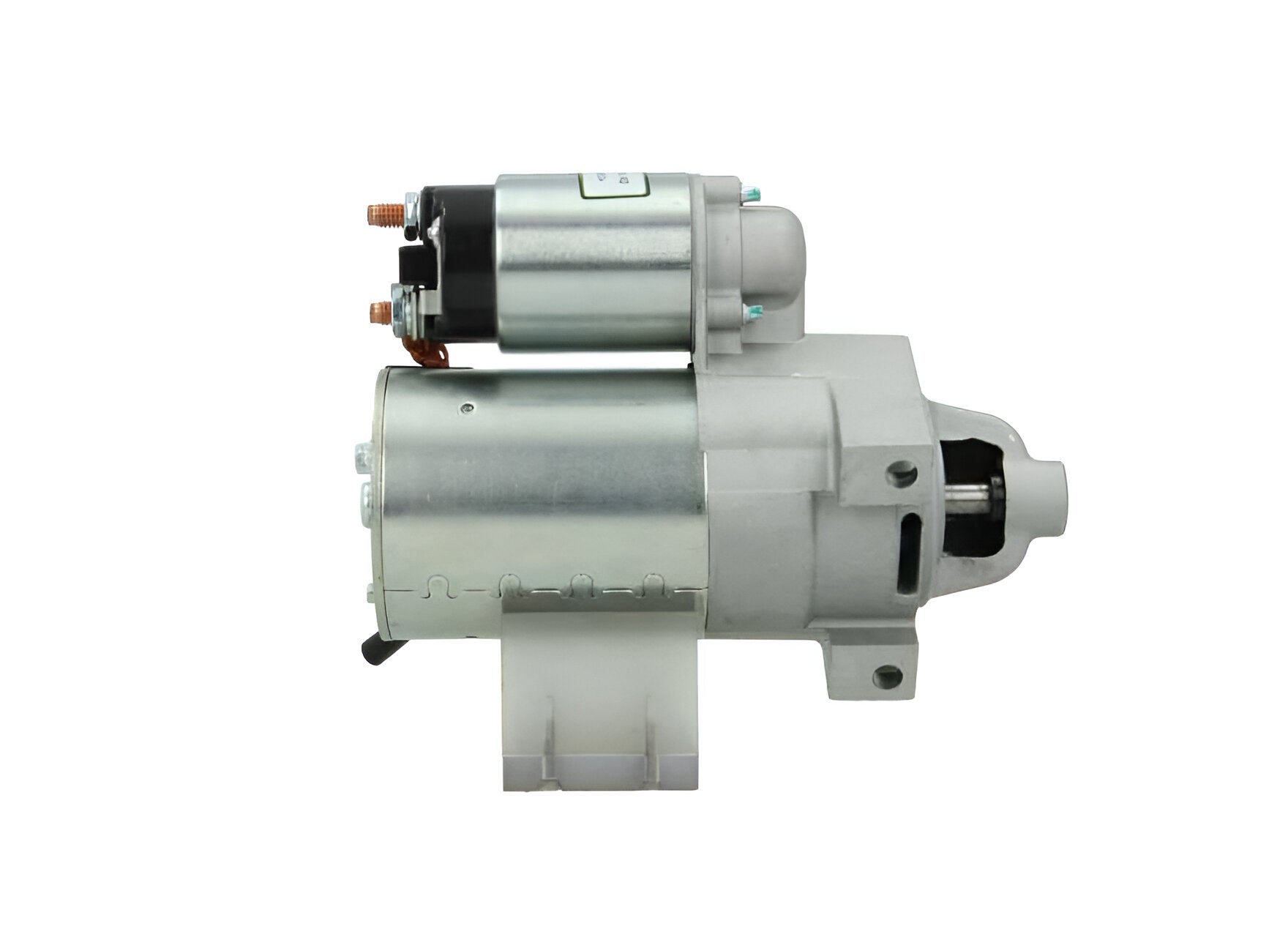

12v 0.6KW Starter Motor Fits John Deere, Kohler 112546 / STR30037

12v 0.6KW Starter Motor Fits John Deere, Kohler 112546 / STR30037

112546

STR30037

Electrical information

• Voltage 12
• Kw 0.6

Physical information

• H No./teeth 9,10
• P Rotation CCW
• N Gear type DD
• A Mount. flange 63.00
• I B+ M8
• No./mount. holes 2 (0)

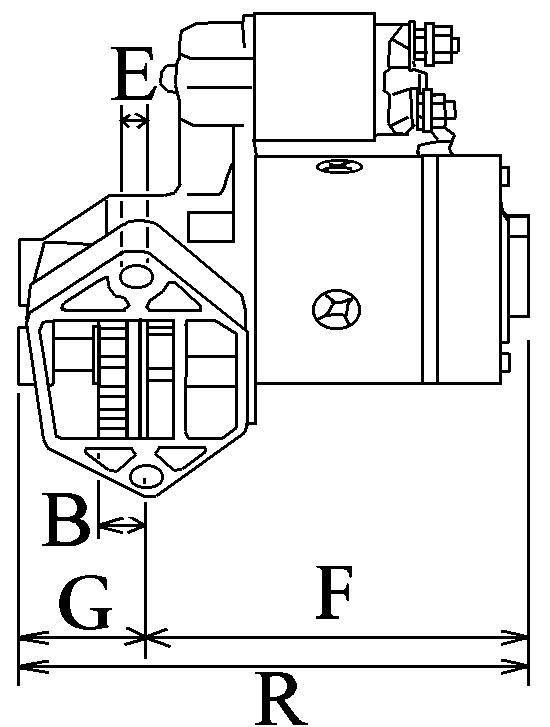

• B Drive dist. 17.00

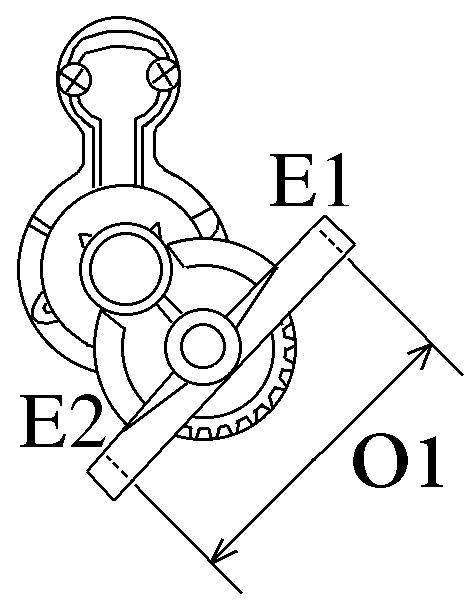

• E Mount. holes 8.50
• E Mount. hole 2 8.50
• F Dist./back 159.00
• G Dist./front 46.50
• M Mount. bracket No
• O Dist. mm 67.50
• R Total length mm 205.50

Catalogue information

• Clutch type - Wet
• Drive type - Steel
• Waterproof - No
• Oil sealed - No

Replacing

• 0986UR1243    Bosch Exchange

• 1045513    Delco Remy

• 10455513    Delco Remy

• 10455516    Delco Remy

• 112546    HC-Cargo

• 1209803    Kohler

• 1209803S    Kohler

• 1280007480    Denso

• 1457809    Hyster

• 15130087    AES

• 17628N    WAI

• 2280002640    Denso

• 2409801    Kohler

• 2409801S    Kohler

• 24606101    Dixie

• 2509808    Kohler

• 2509808S    Kohler

• 2509809    Kohler

• 2509809S    Kohler

• 2509811    Kohler

• 2509811S    Kohler

• 2509817    Kohler

• 2509820    Kohler

• 2509820S    Kohler

• 2509821    Kohler

• 2509824    Kohler

• 2509824S    Kohler

• 3342522    Delco Remy

• 5174720M030SM    United Technologies

• 630518102    PSH

• 6744N    WAI

• 8000335    Delco Remy

• 8000869    Delco Remy

• 8000870    Delco Remy

• 91014547    Wilson

• 91295239    Wilson

• 91295239N    Wilson

• 9722809264    Denso

• AM107631    John Deere

• AM108390    John Deere

• AM124993    John Deere

• AM131296    John Deere

• AM132702    John Deere

• E719463010    Kubota

• E719463012    Kubota

• F032112546    HC-Cargo

• F042000214    Bosch

• K0H2409801    New Holland

• L0H2409801    New Holland

• LRS01429    Lucas

• LRS03986    Lucas

• LRS1429    Lucas

• LRS3986    Lucas

• MIA11473    John Deere

• RS41263    Delco Remy

• S1484    Dixie

• S8538    Dixie

• SM51747    United Technologies

• SR5044X    Bosch (USA)

• STR30037    Wood Auto

• STR40007    Wood Auto

• STR80140    Wood Auto

• STR8276    Wood Auto

• WI53044    Kohler

• WOOSTR30037    Wood Auto

• WOOSTR40007    Wood Auto

• WOOSTR80140    Wood Auto

• WOOSTR8276    Wood Auto


Applications

• Cub Cadet, AGRICULTURAL
• Cub Cadet, INDUSTRIALS
• John Deere, AGRICULTURAL
• Kohler, MOTOR

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
