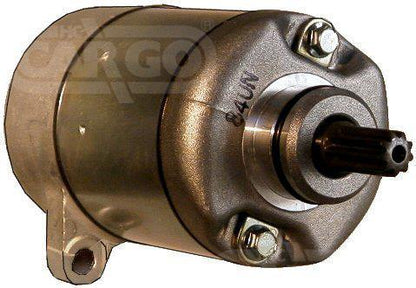

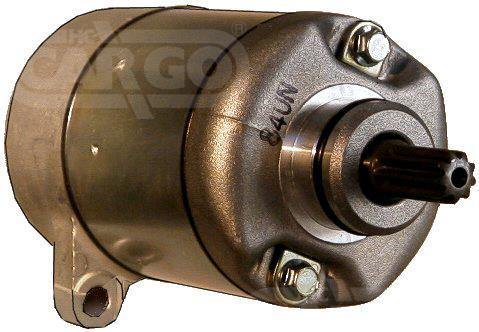

12v 0.6 Kw Starter Motor Honda Mitsuba Motor Bike HC-Cargo 111927
Details and description
Rotation CCW, Kw 0.6, Voltage 12, Mount. flange 29.90, Mount. holes 6.70, Mount. hole 2 6.70, Drive dist.41.00, Dist./back 103.00, No./teeth 9, B+ M6, Gear type DD, Dist. mm 50.50, No./mount. holes 2 (0), Drive type Steel, Total length mm 145.00, Oil sealed No, Waterproof No
Electrical specifications |
||
|---|---|---|
| Voltage | 12 | |
| Kw | 0.6 | |

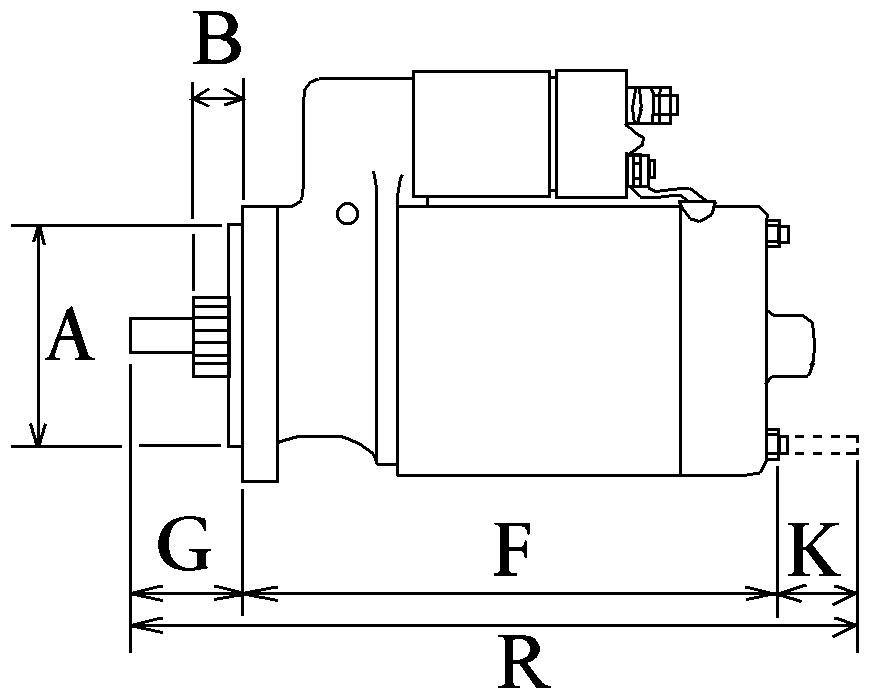

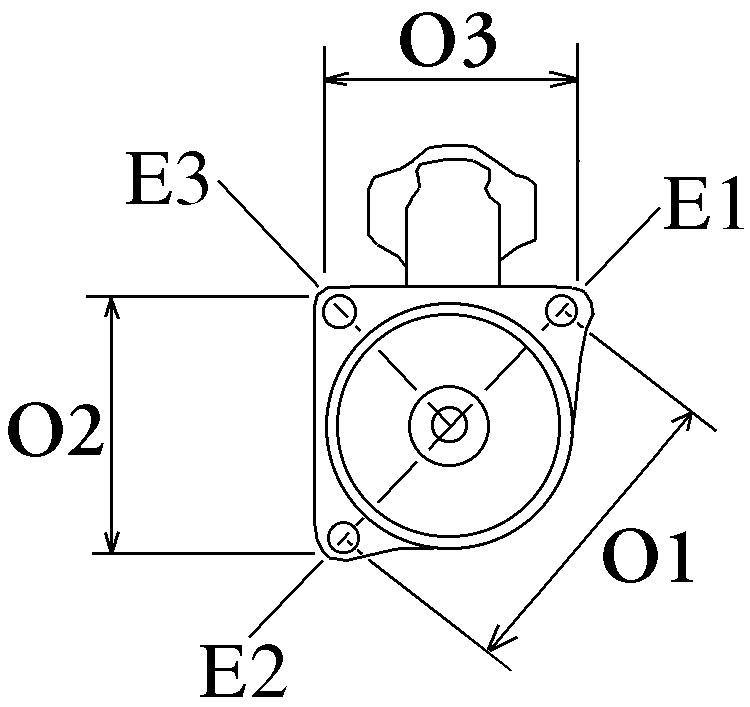

Physical specifications |
||
|---|---|---|
| A | Mount. flange | 29.90 |
| E | Mount. holes | 6.70 |
| E | Mount. hole 2 | 6.70 |
| B | Drive dist. | 41.00 |
| F | Dist./back | 103.00 |
| H | No./teeth | 9 |
| I | B+ | M6 |
| N | Gear type | DD |
| O | Dist. mm | 50.50 |
| P | Rotation | CCW |
| R | Total length mm | 145.00 |
Further information |
||
|---|---|---|
| No./mount. holes | 2 (0) | |
| Drive type | Steel | |
| Oil sealed | No | |
| Waterproof | No | |
Replacing
31200-hm8-003
HONDA
31200-hm8-a41
HONDA
sm13475
MITSUBA
