12v 0.6 Kw Starter Motor Honda Motor Bike Quad Motor Cycle 10 Tooth Hc-Cargo
111921
Details and description
- Voltage 12, Kw 0.6, No./teeth 10, Rotation CCW, Gear type DD, Mount. flange 30.00, B+ M6, Drive dist. 36.00, Mount. holes 7.00, Mount. hole 2 6.50, Dist./back 147.00, Dist./front 46.00, Mount. bracket No, Dist. mm 34.65, Total length mm 193.00, Drive type Steel, Waterproof No, Oil sealed No.
Info OBS!! Please control rotational direction. This starter is anticlockwise.

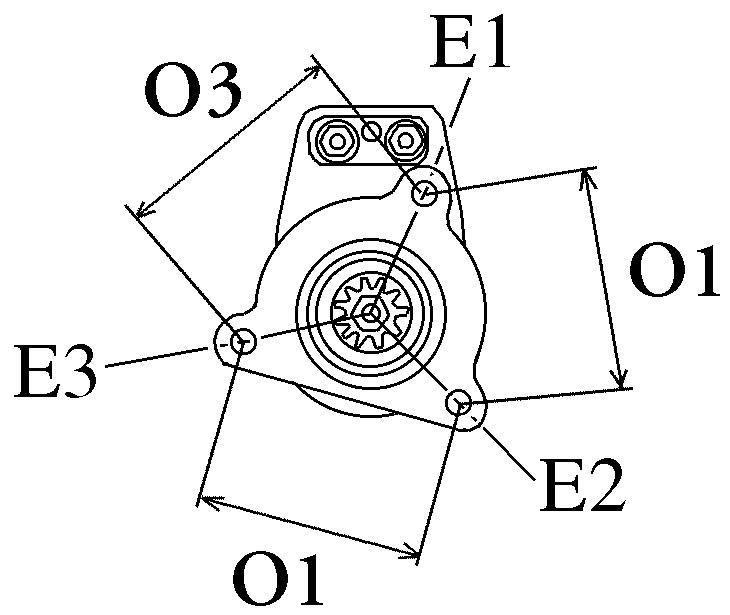

Physical Information
- H No./teeth 10
- P Rotation CCW
- N Gear type DD
- A Mount. flange 30.00
- I B+ M6
- B Drive dist. 36.00
- E Mount. holes 7.00
- E Mount. hole 2 6.50
- F Dist./back 147.00
- G Dist./front 46.00
- M Mount. bracket No
- O Dist. mm 34.65
- R Total length mm 193.00
Replacing
- 31200-HA0-773 Honda
- 31200-HA0-774 Honda
- 31200-HA6-774 Honda
- 31200-HC4-023 Honda
- SM13213 Mitsuba
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
