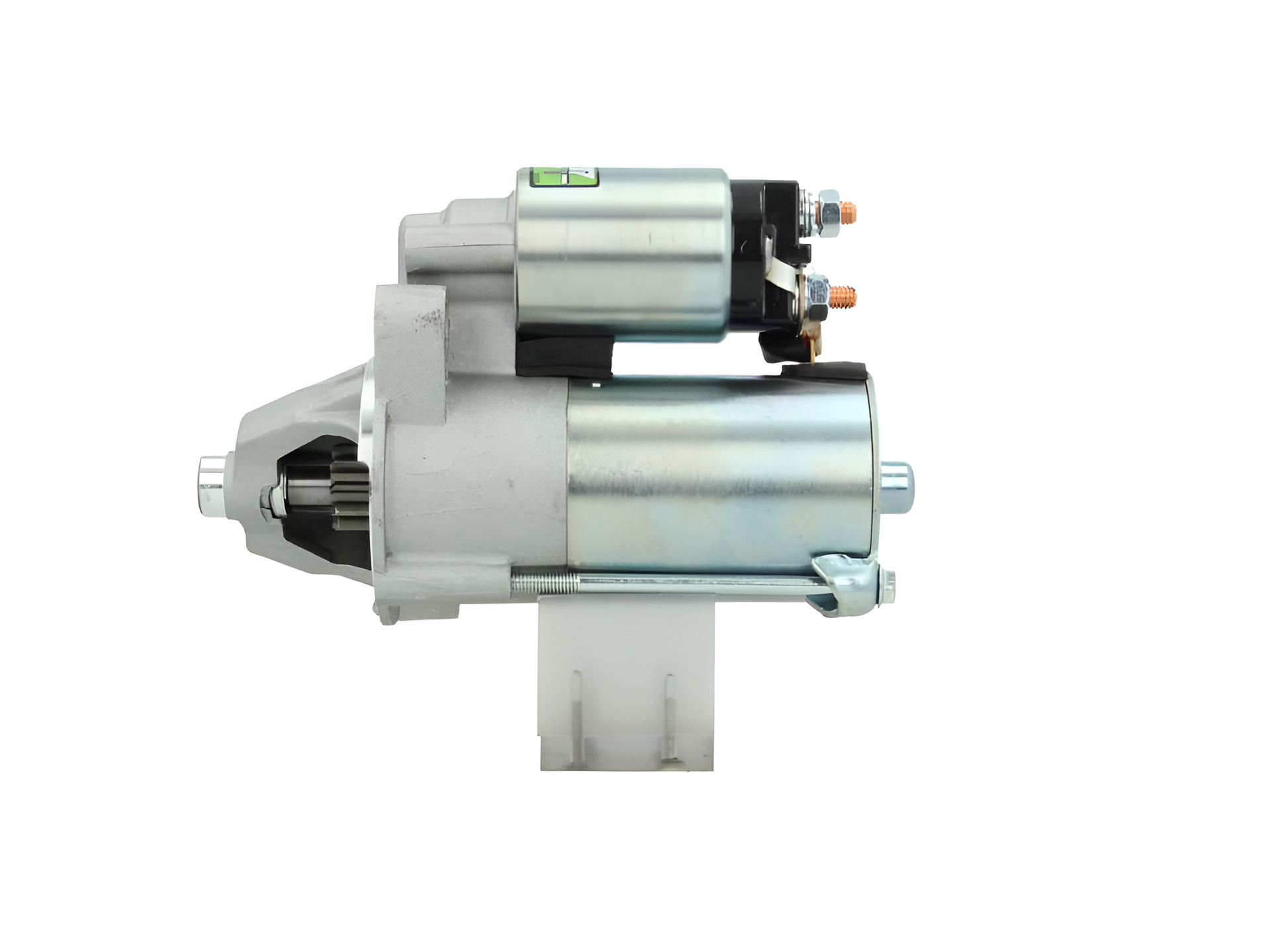

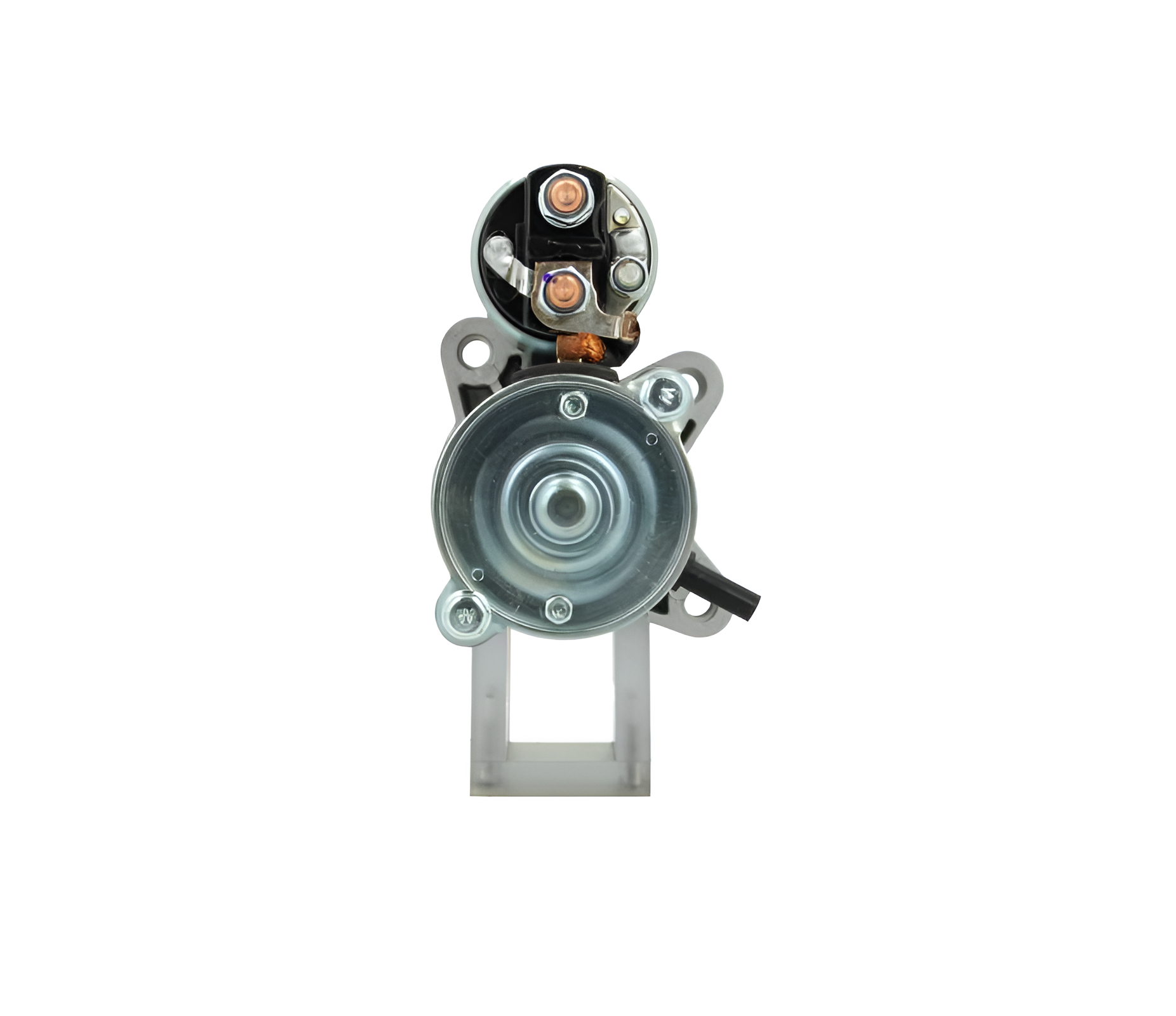

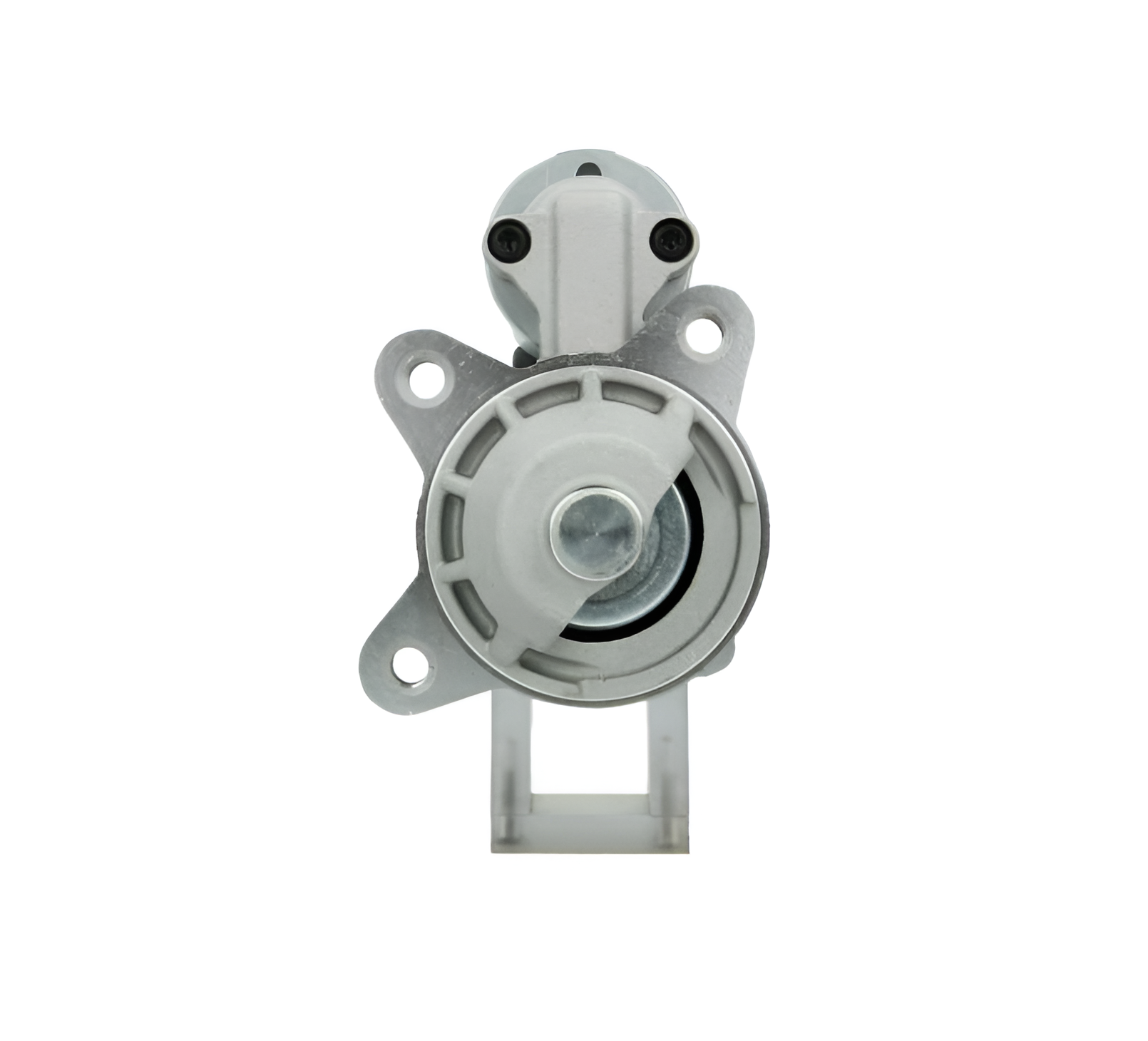

12V 1.4KW STARTER MOTOR SUITABLE FOR FORD CONNECT VAN 113910 / STR61818

12v Starter Motor To Fit Ford Transit Connect Tourneo Vans 113910 / STR61818

• STR61818
• 113910

Electrical information

• Voltage 12
• Kw 1.4

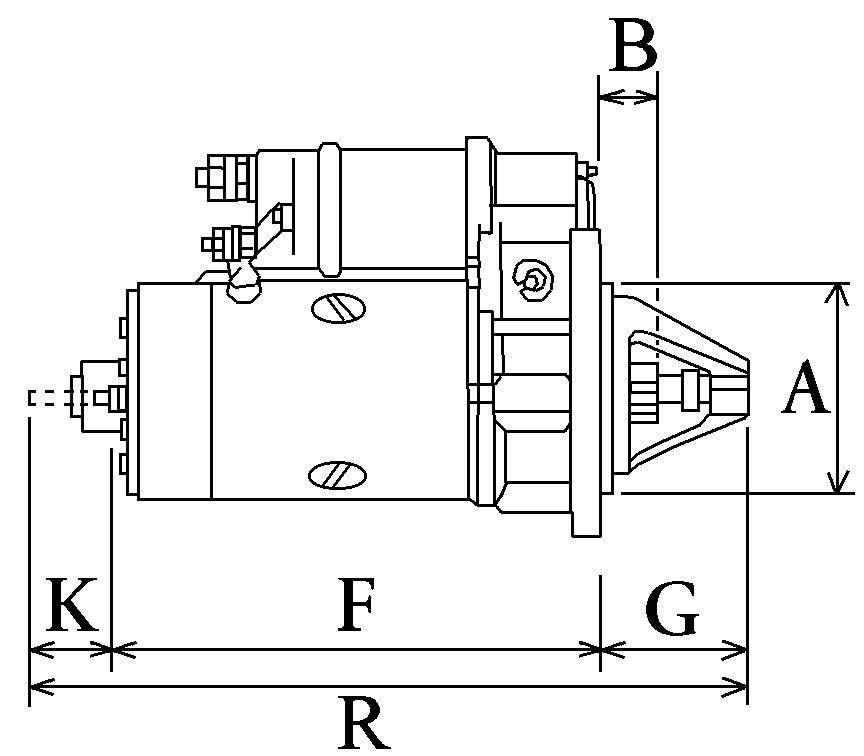

Physical information

• H No./teeth 10
• P Rotation CW
• N Gear type GR
• A Mount. flange 76.00
• I B+ M8
• No./mount. holes 3 (3)
• B Drive dist. 15.00
• E Mount. holes M10
• E Mount. hole 2 M10
• E Mount. hole 3 M10
• F Dist./back 147.50
• G Dist./front 53.50
• M Mount. bracket No
• O Dist. mm 102.50
• O Dist. 2 66.50
• O Dist. 3 66.00
• R Total length mm 209.00

Further information

• Drive type - Steel
• Waterproof - No
• Oil sealed - No

Replacing

• 0986022840    Bosch Exchange

• 113910    HC-Cargo

• 1336CSRD    RNL

• 1345314    Ford

• 1477973    Ford

• 15130019    AES

• 15130090    AES

• 1756793    Ford

• 1762871    Ford

• 1904988    Ford

• 2010001034    Visteon

• 201039    Valeo

• 2T1411000AA    Ford

• 2T1411000AB    Ford

• 2T1411000BA    Ford

• 2T1411000BB    Ford

• 2T1411000BC    Ford

• 2T1411000CA    Ford

• 2T1411000CB    Ford

• 2T1411100BA    Ford

• 2T14AA    Ford

• 2T14AB    Ford

• 2T14BA    Ford

• 2T14BB    Ford

• 2T14BC    Ford

• 2T14CA    Ford

• 2T14CB    Ford

• 32510N    WAI

• 32510R    WAI

• 35259860    Prestolite

• 4063878    Fiat Group

• 438486    Valeo

• 4424968    Fiat Group

• 4443760    Fiat Group

• 458380    Valeo

• 458448    Valeo

• 590548103    PSH

• 63280034    Magneti Marelli

• 63280034010    Magneti Marelli

• 63721336    Magneti Marelli

• 944280801340    Magneti Marelli

• CS1336    HC-Parts

• DRS3956    Delco Remy

• DRS3956N    Delco Remy

• F032113910    HC-Cargo

• F042202515    Bosch

• F042S05035    Bosch

• HCS1336    HC-Parts

• LES0305    Lucas

• LRMS692    Leyland

• LRS01627    Lucas

• LRS1627    Lucas

• MSN8034    Magneti Marelli

• OSM10251    Optimum

• RAS34067    Delco Remy

• RNL2T14BA    RNL

• S692    Leyland

• STR2857    Unipoint

• STR61804    Wood Auto

• STR61818    Wood Auto

• TS2261    Valeo

• UNISTR2857    Wood Auto

• WOOSTR61804    Wood Auto

• WOOSTR61818    Wood Auto


Fits Vehicles

• FORD TOURNEO 1.8 TDCi 2002 - 2013 1753cc, 4cyl, 90HP
• FORD TOURNEO 1.8 TDCi 2006 - 2013 1753cc, 4cyl, 110HP
• FORD TOURNEO 1.8 TDCi /TDDi /DI 2002 - 2013 1753cc, 4cyl, 75HP
• FORD TRANSIT 1.8 Di 2002 - 2013 1753cc, 4cyl, 75HP
• FORD TRANSIT 1.8 TDCi 2002 - 2013 1753cc, 4cyl, 90HP
• FORD TRANSIT 1.8 TDCi 2006 - 2013 1753cc, 4cyl, 110HP

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
