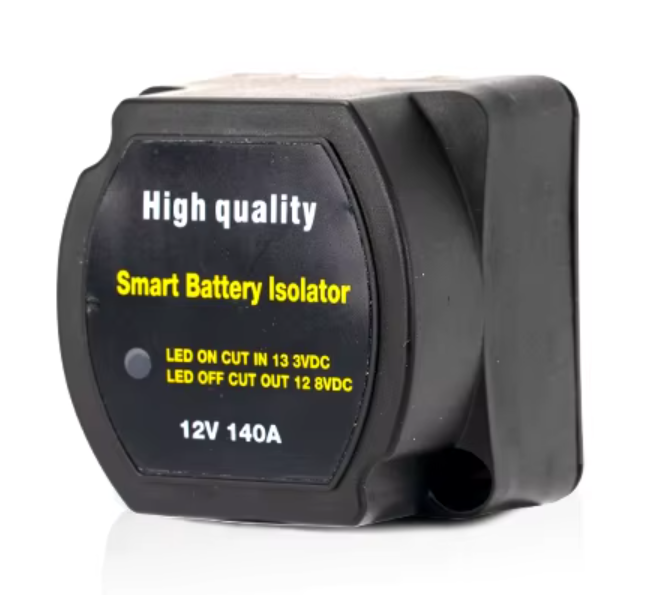

12V 140A Voltage Sensitive Relay (VSR) Smart HD Split Charge Dual Battery Isolator MURE SCR12

12V 140A Voltage Sensitive Relay (VSR) Smart HD Split Charge Dual Battery Isolator MURE

SCR12

Product Details:

• Type: Advanced Voltage Sensitive Relay (VSR) specifically designed for dual battery charging systems.
• Voltage: Engineered for 12V DC electrical systems.
• Current Rating: High-performance 140A maximum continuous rating to handle heavy electrical loads.
• Intelligent Charging: Automatically charges both the primary start battery and auxiliary battery simultaneously when the alternator is running.

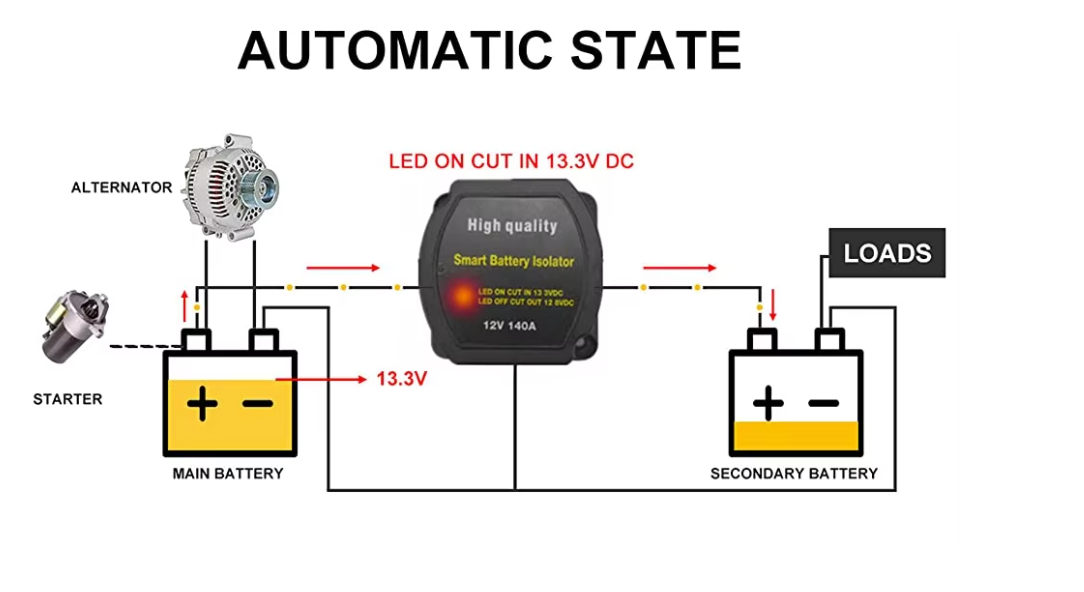

• Cut-In Voltage: Automatically engages at 13.3V (with LED status indicator).

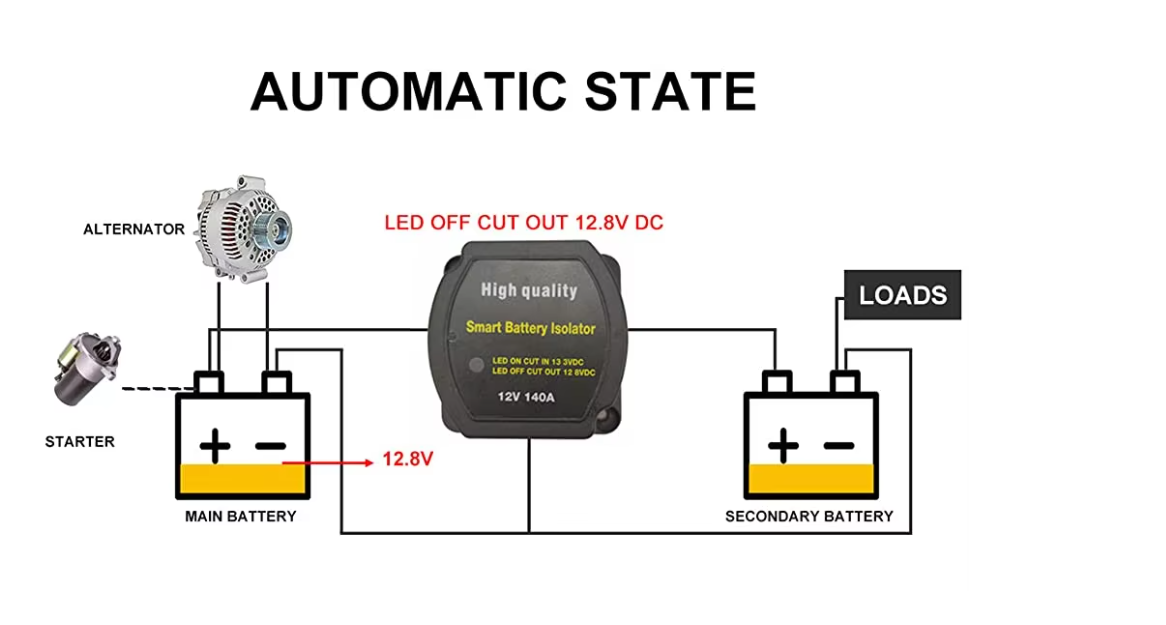

• Drop-Out Voltage: Automatically disconnects at 12.8V to isolate batteries.
• Battery Protection: Eliminates the risk of draining the primary starter battery, ensuring reliable engine starts every time.
• Equipment Safeguard: Protects sensitive electronic equipment connected to the secondary battery from damaging voltage spikes during engine ignition.

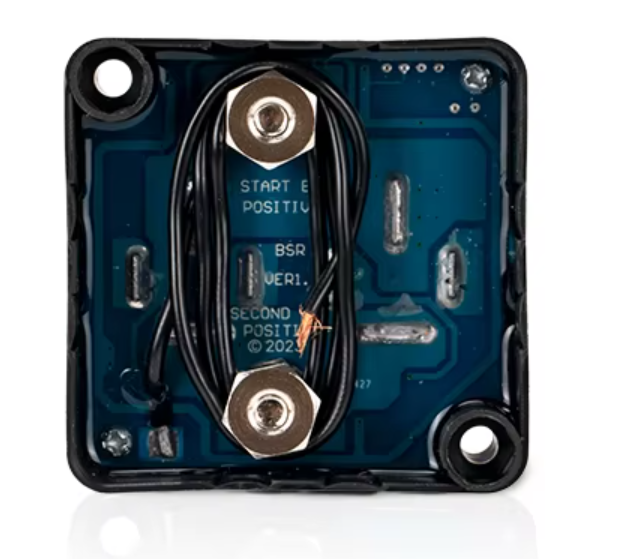

• Durable Construction: Vibration, moisture, and dust-resistant composite housing with silicone-sealed internal electronics.


Dimensions:

• Length: Approx. 67mm
• Width: Approx. 66mm
• Height: Approx. 53mm

Application:

• Ideal for campervans, RVs, motorhomes, caravans, 4x4s, marine vessels, boats, ATVs, and commercial vehicles requiring smart management of dual battery setups.
