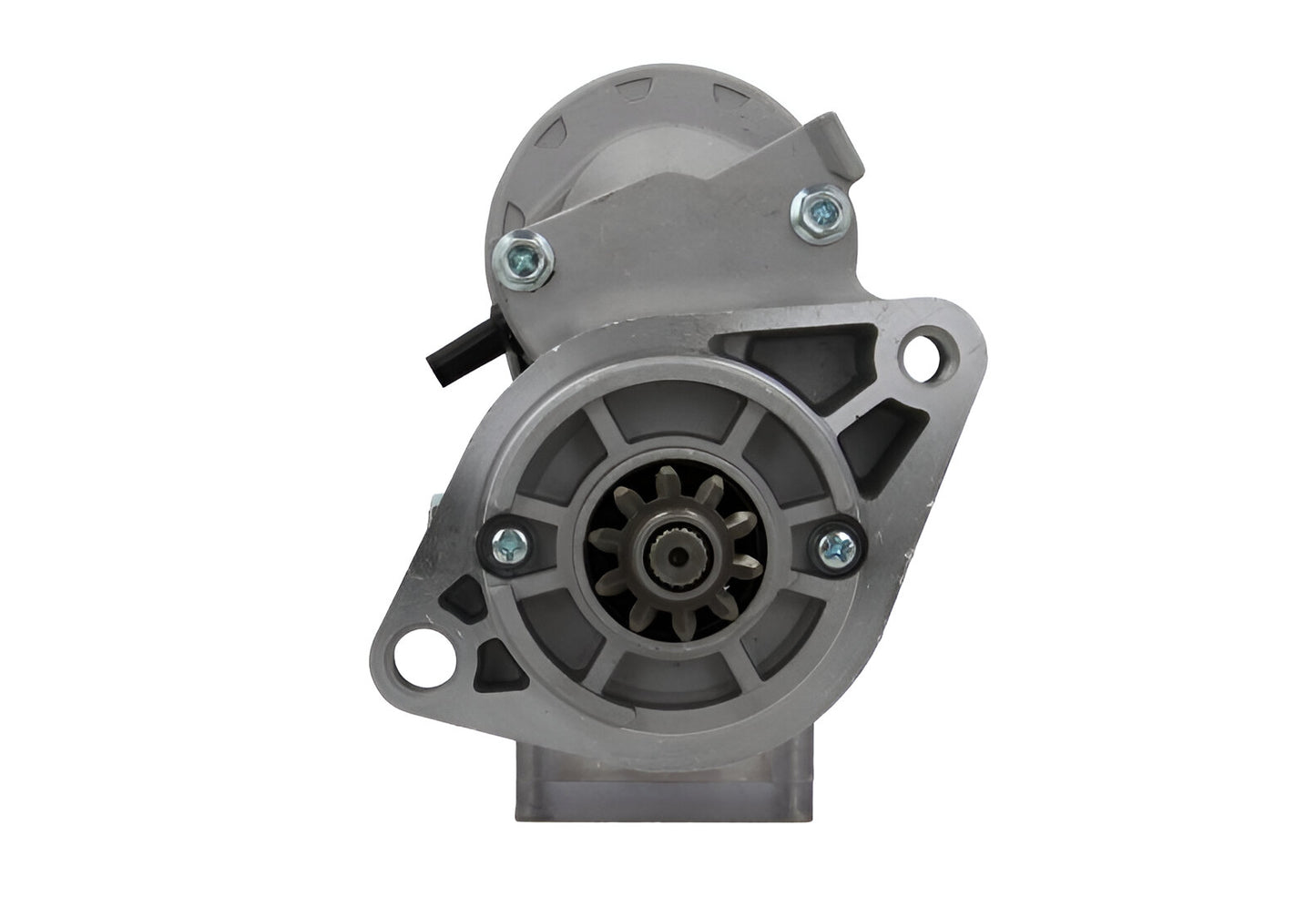

New 12v Totyota Starter Motor, Fits Landcruiser, Hiace Etc. 113757 / STR70015
113757
STR70015
Electrical information
- Voltage 12
- Kw 2.2

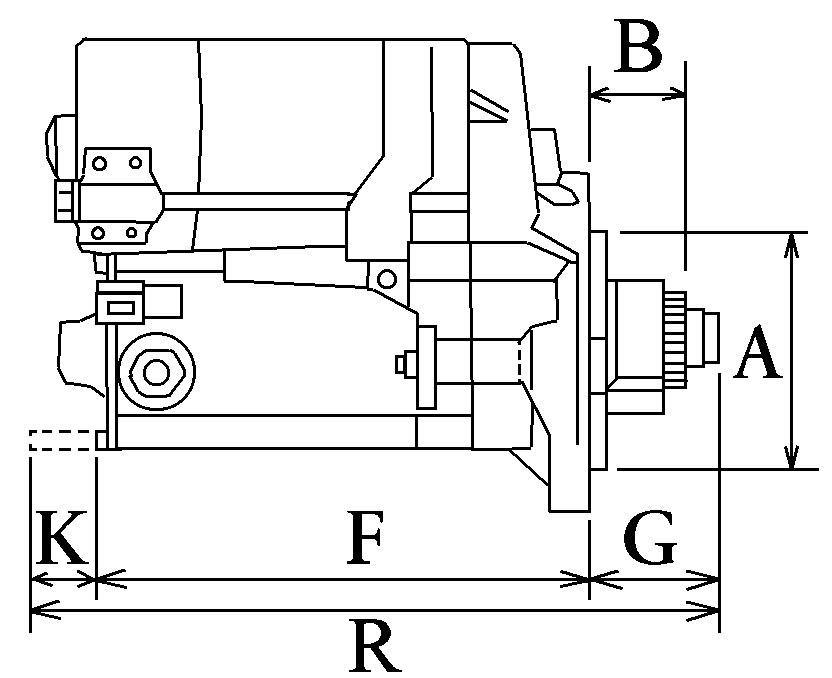

Physical information
- H No./teeth 10
- P Rotation CW
- N Gear type GR
- A Mount. flange 82.00
- I B+ M8
- No./mount. holes 2 (1)
- B Drive dist. 18.50
- E Mount. holes M12x1.25
- E Mount. hole 2 13.50
- F Dist./back 154.00
- G Dist./front 30.00
- M Mount. bracket No
- O Dist. mm 130.00
- R Total length mm 235.00
Catalogue information
- Clutch type - Dry
- Drive type - Steel
- Waterproof - No
- Oil sealed - No
Replacing
- 0280001780 Denso
- 0986020601 Bosch Exchange
- 113757 HC-Cargo
- 190539102 PSH
- 20130043 AES
- 2280000290 Denso
- 2280001781 Denso
- 2280001782 Denso
- 2280005020 Denso
- 2280005021 Denso
- 2280005022 Denso
- 2280005023 Denso
- 2810067050 Toyota
- 2810067051 Toyota
- 32415N WAI
- 9622809502 PSA
- 9642809029 PSA
- ATS909 ATK
- DENDSN1211 Wood Auto
- DSN1211 Denso
- F032113757 HC-Cargo
- F042S0H060 Bosch
- HJS1154 HC-Parts
- JS1154 HC-Parts
- LRS01497 Lucas
- LRS1497 Lucas
- MRS20601 Magneti Marelli
- OSM11015 Optimum
- STRH060 Unipoint
- UNISTRH060 Wood Auto
Application
- 4 Runner 4 Runner 3.0 Diesel 1993 10 1996 03 1KZ-T TD 92 125 4WD 2982 4 N130
- 4 Runner 4 Runner 3.0 Diesel 1995 11 2002 11 1KZ-T TD 92 125 2982 4
- Hiace Hiace 2.5 Diesel 2001 11 2006 08 2KD-FTV D-4D 75 102 Bus 4WD 2494 4
- Hiace Hiace 2.5 Diesel 2006 09 2012 12 2KD-FTV D-4D 70 95 Van 2494 4
- Hiace Hiace 2.5 Diesel 2001 08 2006 08 2KD-FTV D-4D 75 102 Van 4WD 2494 4_H1_, _H2_
- Hiace Hiace 2.5 Diesel 2006 09 2012 12 2KD-FTV D-4D 86 117 Bus 4x4 2494 4
- Land Land 3.0 Diesel 2000 03 2003 02 1KZ-TE TD 96 131 Closed Off-Road Vehicle2982 4 _J9_
- Land Cruiser Land Cruiser 3.0 Diesel 2000 08 2002 08 1KD-FTV D-4D 120 163 29824 _J9_
- Land Cruiser Land Cruiser Van 3.0 Diesel 2011 01 - D4-D 140 190 4WD 2982 4 _J15_
- Land Cruiser Land Cruiser 3.0 Diesel 1996 04 2002 12 1KZ-TE TD 92 125 4WD 29824
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
