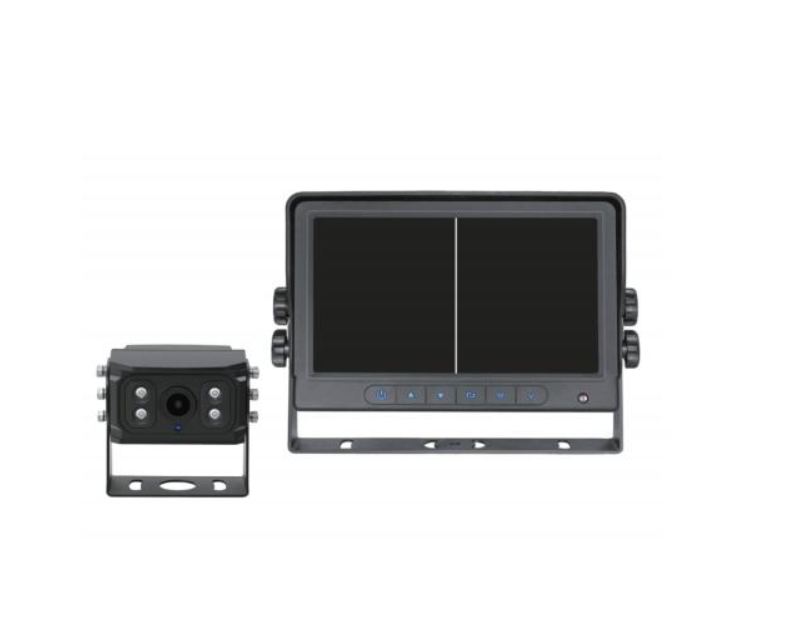

12V 24V AHD 1080P Rear View Wired Split Monitor Dashcam 120 Degree Angle 7" IP69K LED Global
LG9001S
This is a heavy-duty 7-inch wired reversing camera kit engineered specifically for commercial transport, agricultural equipment, and fleet operations. Built with a Split Screen Monitor, this system gives drivers the ability to monitor multiple angles simultaneously making reversing, coupling trailers, and navigating tight sites significantly safer.
Unlike wireless camera systems that suffer from signal dropouts or interference, the LG9001S utilises heavy-duty GX12 4-pin aviation connectors and an included 20-metre cable to guarantee a rock-solid, uninterrupted video feed under all working conditions.
Key Features:
- 2-Channel Split-Screen Monitor: View two cameras simultaneously on one screen or switch between single feeds. Expand your view anytime by adding a second camera (LG9008, sold separately).
- 1080P AHD Video Clarity: Delivers crisp 1920x1080 resolution to give drivers a clear view of hazards, equipment, and pedestrian activity behind the vehicle.
- IP69K Waterproof Camera: Fully sealed against dust, mud, rain, and high-pressure wash-downs, ensuring long-term reliability in demanding environments.
- Enhanced Night Vision: Built with 4 high-output SMT LEDs to provide clear visibility in low-light conditions, dark yards, and late-night site operations.
- Vibration-Resistant Wiring: Features 4-pin GX12 screw-lock connectors to prevent signal loss caused by vehicle vibration and rugged off-road terrain.
Technical Specifications:
- Monitor Size: 7-inch Diagonal (16:9 Aspect Ratio)
- Monitor Resolution: 1024 x 600 RGB
- Camera Resolution: 1080P Full HD (1920 x 1080 Effective Pixels)
- Camera Viewing Angle: 120° Wide Angle
- Video Inputs: 2-Channel (Supports AHD & CVBS signals with Split-Screen display)
- Operating Voltage: 12V – 24V DC
- Camera Waterproof Rating: IP69K
- Night Vision: 4 SMT Infrared/LED lights
- Cable Included: 20m 4-pin Extension Cable
- Connector Type: GX12 4-Pin Aviation Connectors
- Mounting: Adjustable U-Bracket Fan Bracket Included
- Box Contents: 1x 7" Split-Screen Monitor, 1x 1080P Camera, 1x 20m Extension Cable, Mounting Bracket & Wiring Harness
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
