12V 24V Cable 5M 15A 8 Core 7 + 1 Thin Wall Trailer Caravan Wire Maypole MP3195

5M CABLE 15A 8 CORE 7+1 THIN WALL TRAILER TOWING WIRE 12V 24V  MAYPOLE

MP3195

• 5 Meters 8 Core Cable (7 + 1)
• 15A 7×0.50mm² + 1x1mm²
• 15A 8 core black trailer cable ideal for 8-13 pin trailer applications with reverse lights where auxiliary battery charging is not required
• 100m cable reel
• 15 Amp

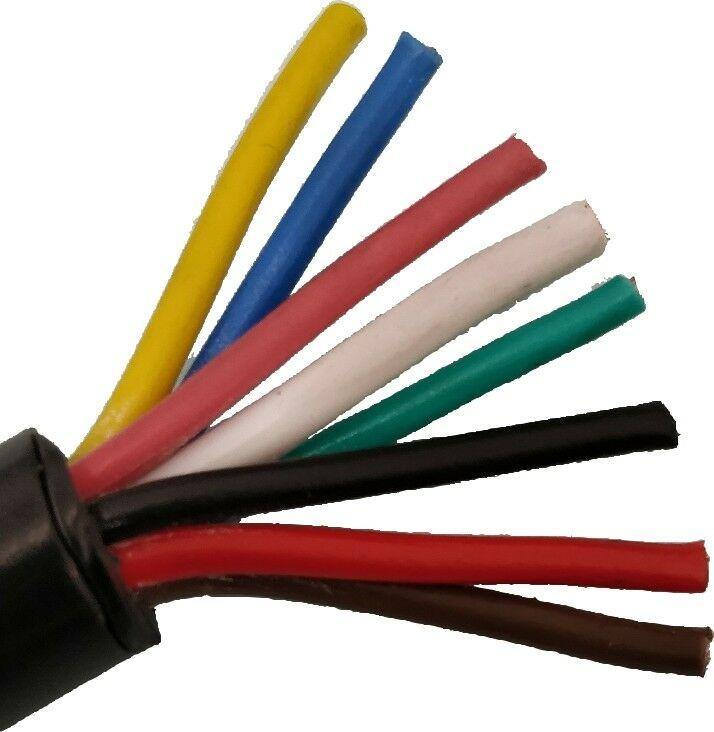

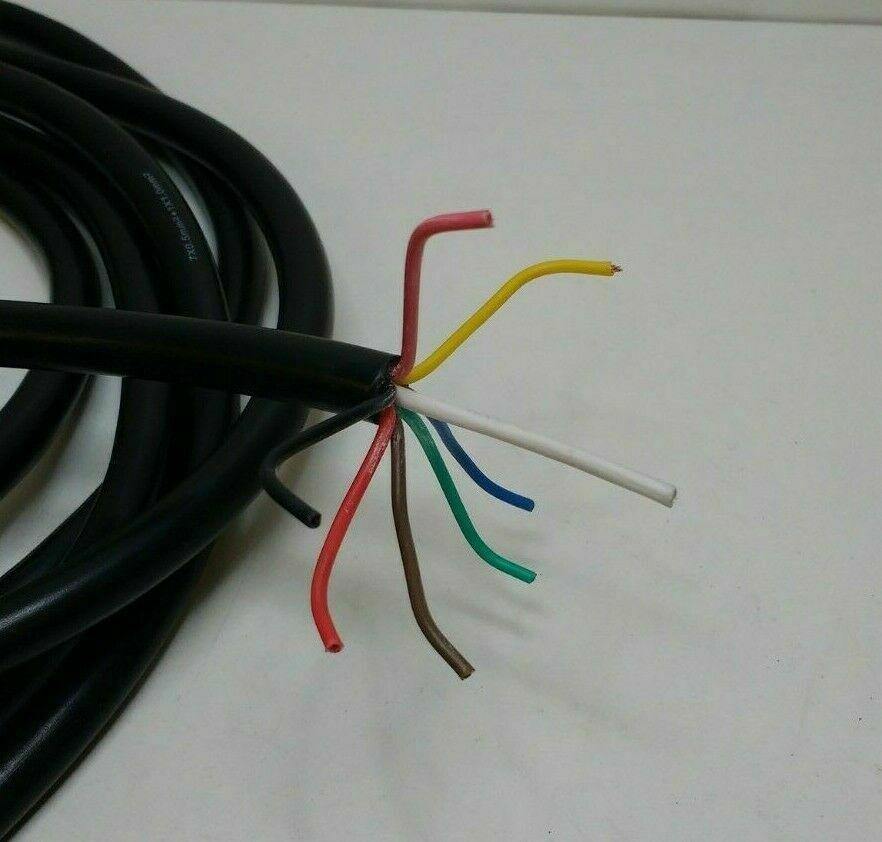

• Spec. 7×0.50mm2 (yellow, blue, green, brown, red, black and pink) + 1×1.0mm2 (white)
• PVC insulated, gives good resistance to abrasion or cut through

DOES NOT COME ON A REEL
COMES AS A CUT LENGTH FROM ROLL

• Stranded copper conductors
• The outer insulation is black pvc
• Brand new sealed cable.
• High temperature thin wall
• 70 degrees
• Manufactured in accordance with BS6862 Part 1 1971, where applicable
• Resistant to petrol, lubricating oils and diluted acids
• Overall cable diameter = 9mm

UNIVERSAL

ANOTHER GOOD QUALITY PRODUCT

Below we have compiled a guide to help you decide which cable you need for your particular application

As a rule on a 12 volt system each Amp will allow you to run 12 watts, so the table shows amp to wattage conversion

Also we would advise for you to allow a little bit higher amperage from what you actually need to allow for power spikes etc. just to be on the safe side.

All our cable is of the highest quality

• 1 amp = 12 watts
• 2 amp = 24 watts
• 3 amp = 36 watts
• 4 amp = 48 watts
• 5 amp = 60 watts
• 6 amp = 72 watts
• 7 amp = 84 watts
• 8 amp = 96 watts
• 9 amp = 108 watts
• 10 amp = 120 watts
• 11 amp = 132 watts
• 12 amp = 144 watts
• 13 amp = 156 watts
• 14 amp = 168 watts
• 15 amp = 180 watt
• 16 amp = 192 watts
• 17 amp = 204 watt
• 18 amp = 216 watts
• 19 amp = 228 watts
• 20 amp = 240 watts
• 21 amp = 252 watts
• 22 amp = 264 watts
• 23 amp = 276 watts
• 24 amp = 288 watts
• 25 amp = 300 watts
• 26 amp = 312 watts
• 27 amp = 324 watts
• 28 amp = 336 watts
• 29 amp = 348 watts
• 30 amp = 360 watts
