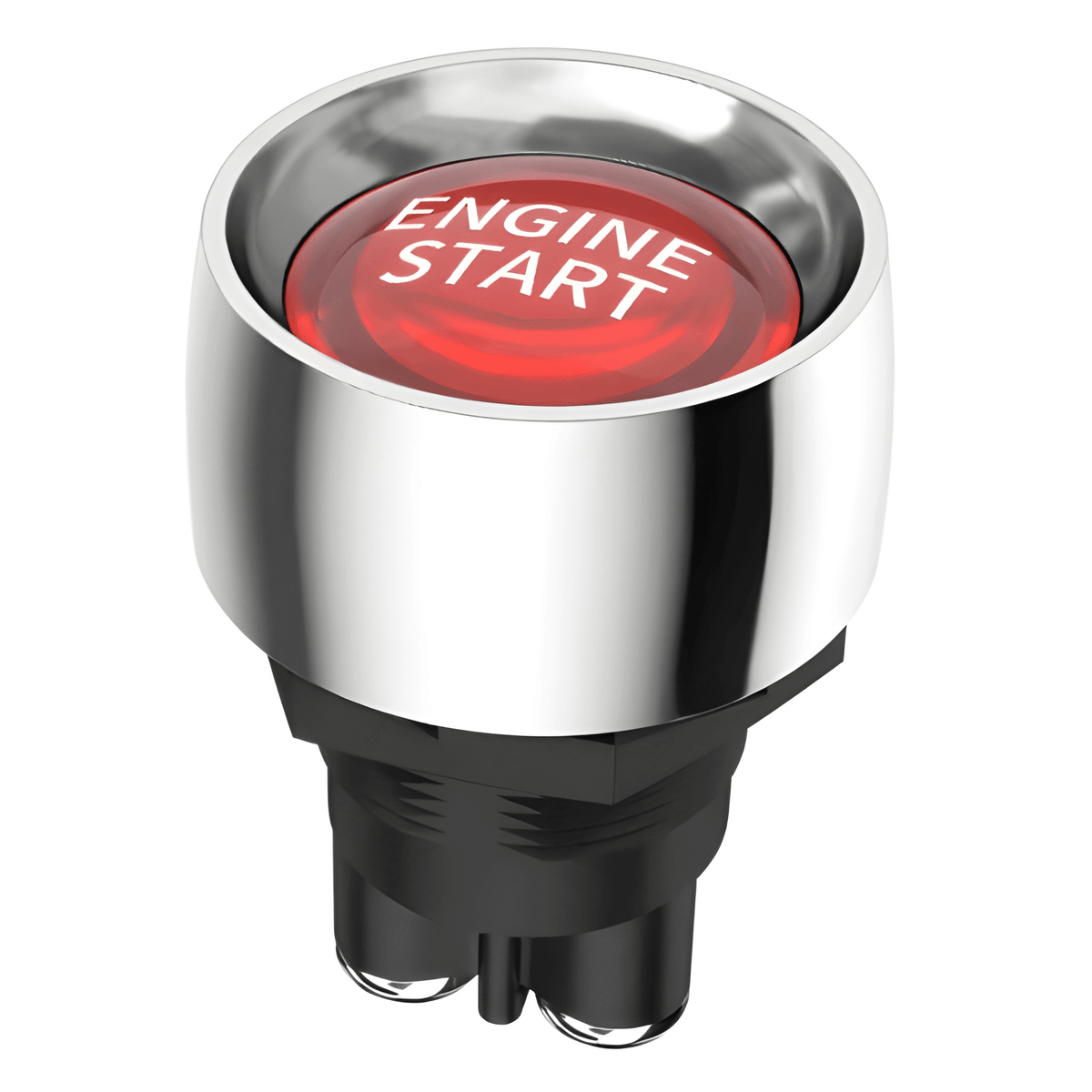

• MURE 12V 24V engine start red illuminated momentary push ignition button IGNPB1 with chrome bezel 3-pin

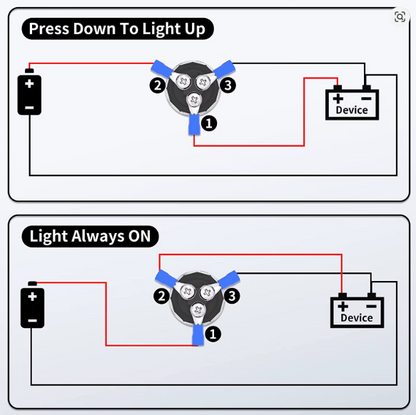

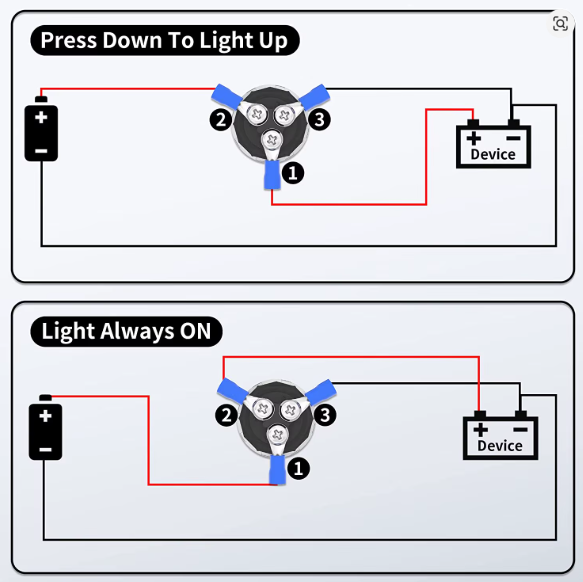

  • Wiring diagrams for the MURE IGNPB1 momentary push ignition button showing Press Down To Light Up and Light Always ON
1 4

12V 24V Engine Start Red Illuminated Momentary Push Ignition Button 50A On Off MURE IGNPB1

Vendor:M.U.R.E

Availability: Low stock: 4 left

Product Type:.IGNPB1

Product Indentifier:7426994762794

£8.99 inc VAT £7.49 ex VAT
£11.99 £8.99 inc VAT £7.49 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12V 24V Engine Start Red Illuminated Momentary Push Ignition Button 50A On Off

IGNPB1

This engine start ignition switch is designed to connect and disconnect DC 12V 50A circuit at will, and is generally applicable to all vehicles, racing vehicles, truck ships, RV

Product Specifications:

  • Frame: Nylon 66 (94V-2), Black
  • Cover: ABS(94HB)
  • Terminals: Copper Alloy
  • Light Colour: Red

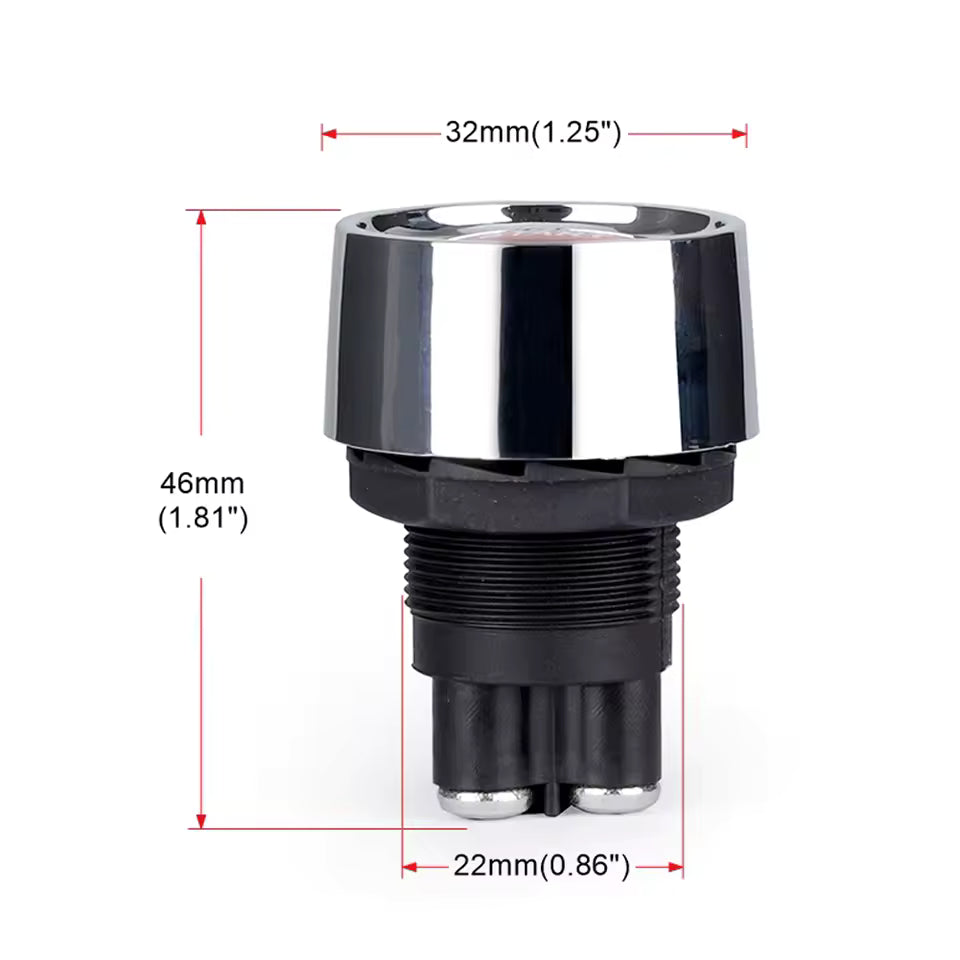

  • Size: 31 x 44mm / 1.2" x 1.7"
  • Life: 10,000 cycles circuit
  • Size: 33 x 46mm / 1.3 x 1.8in.
  • Voltage: 12V / 24V
  • Continuous Current: 50A Max
  • Installation Diameter: 22mm/0.87"
  • Operation Temperature: -25℃ ～+85℃
  • Insulation Resistance: DC 500V 100M ohm Min
  • Contact Resistance: 50m ohm Max
