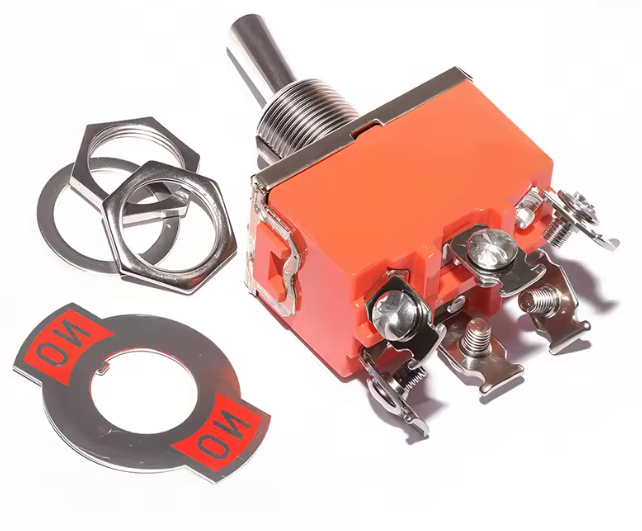

12V 24V Toggle Switch 6 Pin 2 Position On-On DPDT 15A 20A MURE 180591M

12V 24V Toggle Switch 6 Pin 2 Position On-On DPDT 15A 20A MURE

180591M

Upgrade your vehicle and equipment electrical setup with the 180591M 6-Pin Heavy-Duty Toggle Switch. Engineered for high reliability in demanding environments, this 2-position latching ON-ON Double Pole Double Throw (DPDT) switch provides dependable circuit switching across automotive, marine, agricultural, and commercial applications.

Constructed with high-grade metal components and durable housing, it handles high-current loads with ease, making it an ideal replacement or custom installation switch for cars, trucks, boats, tractors, and machinery.

Key Features & Specifications

• Switch Function: 6-Pin DPDT (Double Pole Double Throw) 2-Position (ON-ON) Latching Toggle Switch
• Electrical Rating: 15A @ 250V AC / 20A @ 125V AC (Compatible with 12V and 24V DC systems)
• Terminal Type: Screw terminals for secure, low-resistance wiring connections
• Durable Construction: Flame-retardant body with heavy-duty metal bat handle and mounting hardware

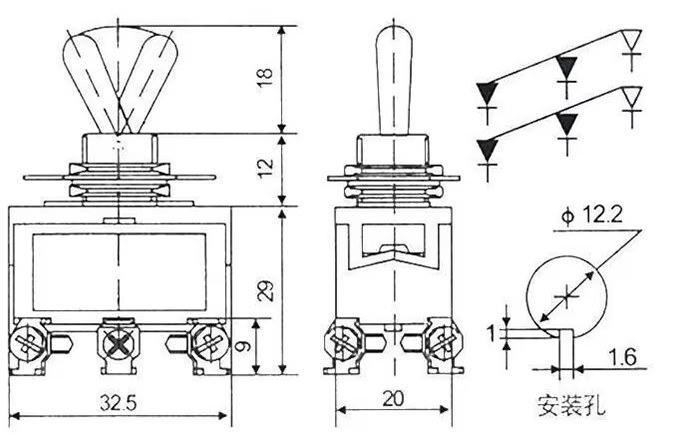

• Standard Mounting: Fits standard 12mm panel cutout holes
• Universal Compatibility: Suitable for automotive, marine, industrial, agricultural, and commercial electrical systems

Ideal Applications

• Dual-circuit switching and reversing functions
• Automotive and off-road auxiliary lighting control
• Marine boat electrical panels, bilge pumps, and navigation lights
• Commercial vehicles, tractors, machinery, and equipment control panels
