12v 2KW 9 Teeth Starter Motor Fits Landrover Discovery, Defender 2.5D 113662 / STR70069

12v 2KW 9 Teeth Starter Motor Fits Landrover Discovery, Defender 2.5D TD5 113662 / STR70069

113662

STR70069

Electrical information

• Voltage 12
• Kw 2.0

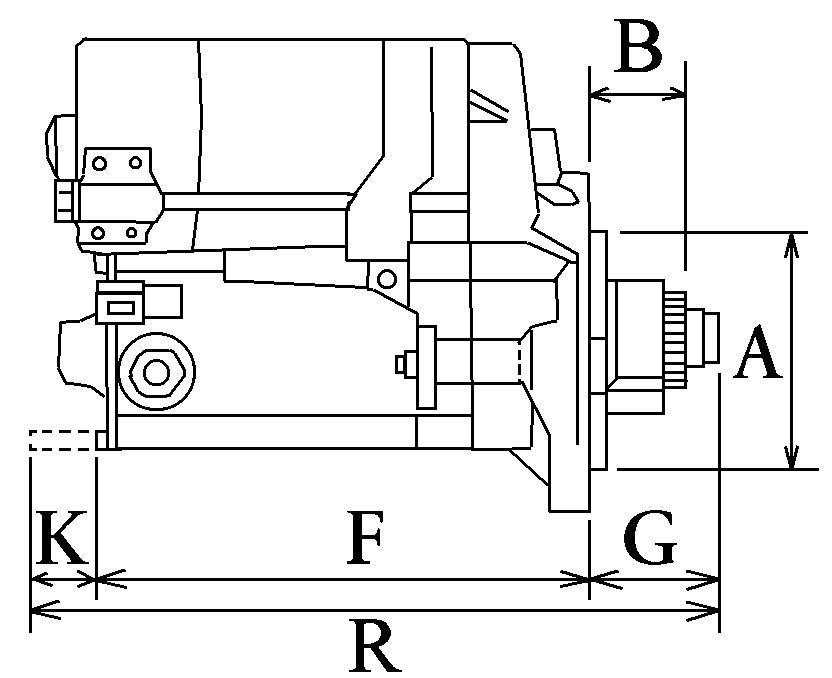

Physical information

• H No./teeth 9
• P Rotation CW
• N Gear type GR
• A Mount. flange 65.90
• I B+ M8
• No./mount. holes 3 (0)
• B Drive dist. 21.20
• E Mount. holes 11.20
• E Mount. hole 2 12.00
• E Mount. hole 3 11.20
• F Dist./back 126.50
• G Dist./front 33.00
• M Mount. bracket No
• O Dist. mm 102.50
• O Dist. 2 145.00
• O Dist. 3 102.50
• R Total length mm 220.00

Catalogue information

• Drive type - Steel
• Waterproof - No
• Oil sealed - No

Replacing

• 063721242010    Magneti Marelli

• 0986022760    Bosch Exchange

• 113662    HC-Cargo

• 20130059    AES

• 20510171    Prestolite

• 2280007220    Denso

• 2280007221    Denso

• 2280007222    Denso

• 2280007223    Denso

• 31212N    WAI

• 31212R    WAI

• 450509093    PSH

• 458378    Valeo

• 63721242    Magneti Marelli

• 944280800970    Magneti Marelli

• 9722809722    Denso

• AHS705    ATK

• CS1242    HC-Parts

• DENDSN600    Wood Auto

• DRS3718    Delco Remy

• DSN600    Denso

• F032113662    HC-Cargo

• F042000039    Bosch

• HCS1242    HC-Parts

• LES0273    Lucas

• LRT00171    Lucas

• LRT171    Lucas

• MRS80097    Magneti Marelli

• NAD101240    Land Rover

• NAD101240E    Land Rover

• NAD101240G    Land Rover

• NAD10240    Land Rover

• OSM10799    Optimum

• PBNS1171    Prestolite

• RAS34829    Delco Remy

• RNL1242CS    RNL

• STR30032    Wood Auto

• STR5027    Wood Auto

• STR70069    Wood Auto

• TRS025    TWA

• WOOSTR30032    Wood Auto

• WOOSTR5027    Wood Auto

• WOOSTR70069    Wood Auto


Application

• Defender 2.5 Diesel 1998 06 2016 02 14P TD5 90 122 Convertible 4WD 2495 5 LD
• Defender 2.5 Diesel 1998 06 2016 02 10P 90 122 4WD 2495 5 LD
• Defender 2.5 Diesel 1998 06 2016 02 15P 90 122 4WD 2495 5 LD
• Defender 2.5 Diesel 1998 06 2016 02 10P TD5 90 122 Convertible 4WD 2495 5 LD
• Defender 2.5 Diesel 1998 06 2016 02 15P TD5 90 122 Convertible 4WD 2495 5 LD
• Defender 2.5 Diesel 1998 06 2016 02 10P TD5 90 122 Pick Up 4WD 2495 5 LD_
• Discovery 2.5 Diesel 1998 11 2004 06 15 P TD 102 139 2495 5
• Discovery II 2.5 Diesel 1998 11 2004 06 10P 100 163 4x4 2495 5 LJ, LT

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
