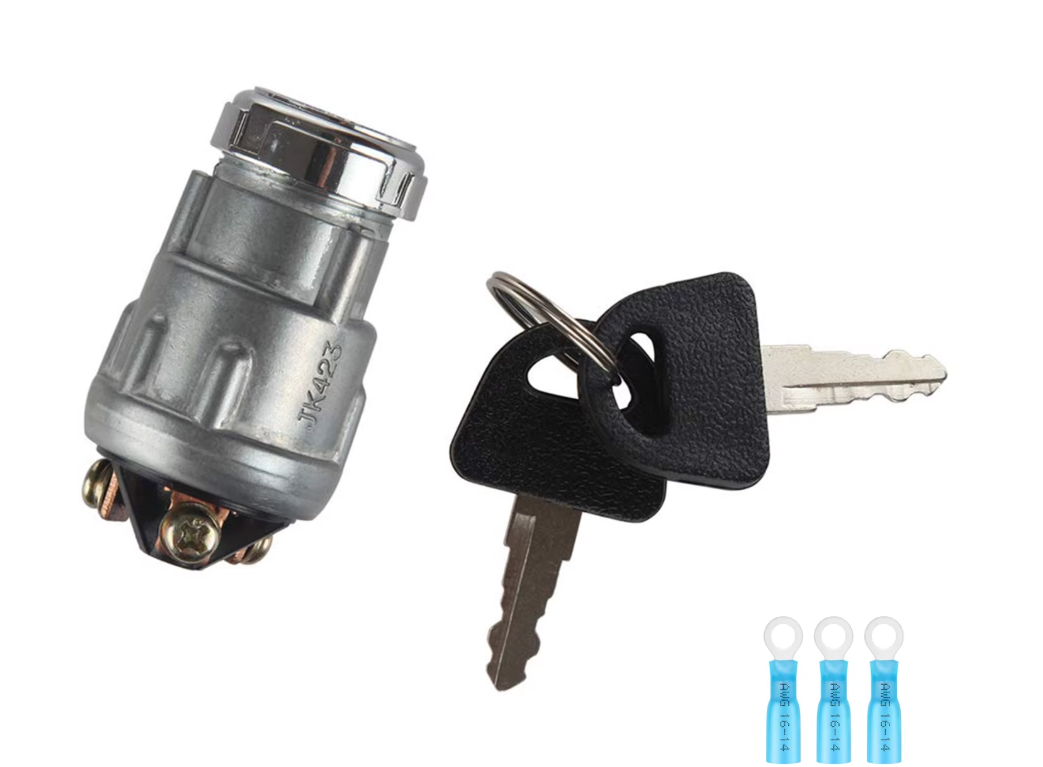

12V 3 Position Ignition Key Rotary Switch (OFF / ON / START) 2 Keys 3 Terminals MURE IGS1942

12V 3 Position Ignition Key Rotary Switch (OFF / ON / START) 2 Keys 3 Terminals MURE

IGS1942

Upgrade or replace your vehicle ignition with this heavy-duty Universal 3-Position Ignition Starter Switch. Engineered with a wear-resistant Kirsite (zinc alloy) body and 3 small, secure screw terminals rated for 12V / 16A, this compact rotary switch provides dependable engine starting and circuit control across 12-volt systems.

Designed to fit a standard 24 mm panel mounting hole, this complete kit includes two keys and small terminal screw hardware for clean, simple installation on control panels and dashboards.

Key Features & Specifications

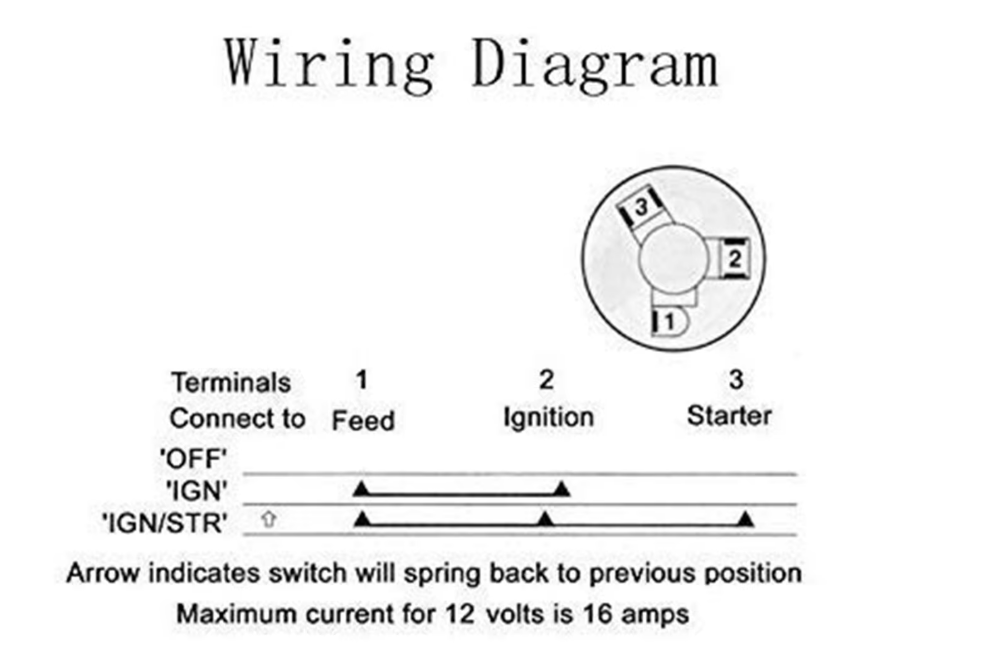

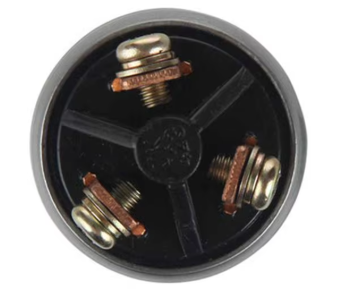

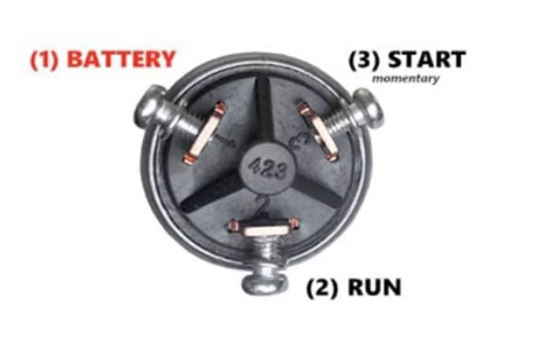

• Switch Mechanism: 3-position rotary switch with 3 small screw-type wiring terminals
• Voltage: 12V DC
• Max Amperage: 16A
• Mounting Hole Size: Fits a standard 24 mm (approx. 0.94 in / 15/16") round dashboard cutout

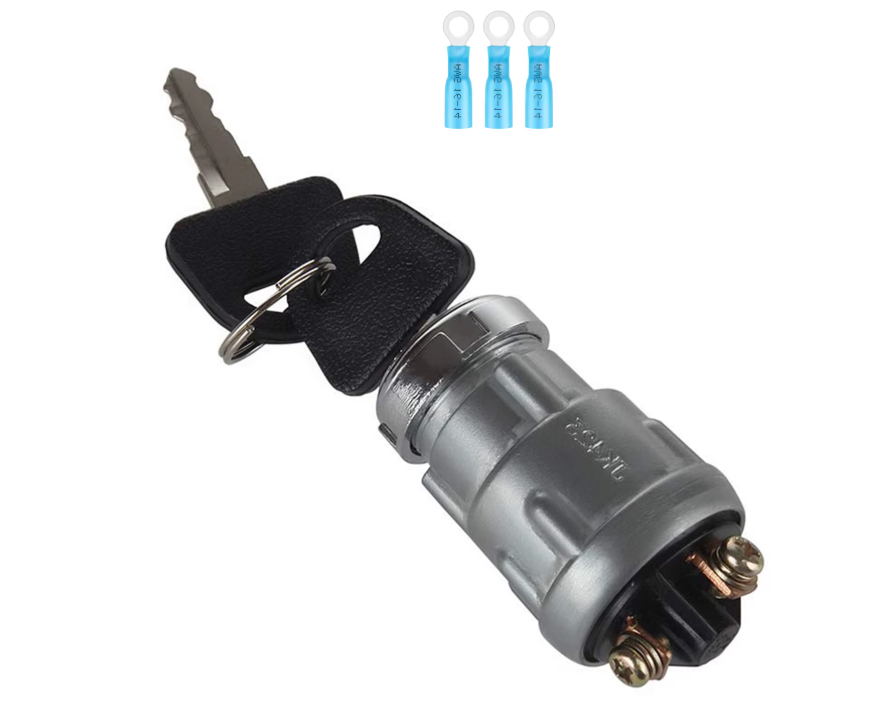

• Included Hardware: 2 keys and small terminal screws for secure wire attachment
• Heavy-Duty Build: Wear-resistant Kirsite (zinc alloy) metal housing for reliable, long-lasting performance
• Safety Certified: CE-certified for compliance with safety standards.

Ideal Applications

Universally compatible across a wide selection of 12V machinery and vehicles:

• Vehicles & Scooters: Cars, trucks, motorcycles, motor scooters, and utility vehicles
• Agricultural & Heavy Machinery: Tractors, forklifts, riding lawn mowers, and farm equipment
• Commercial & Industrial: Plant machinery, generators, and custom power builds.

Compact Dimensions:

• Overall Height: 2.35 in (59.7 mm)
• Diameter / Width: 1.26 in (32 mm)
• Net Weight: Approx. 10 g
