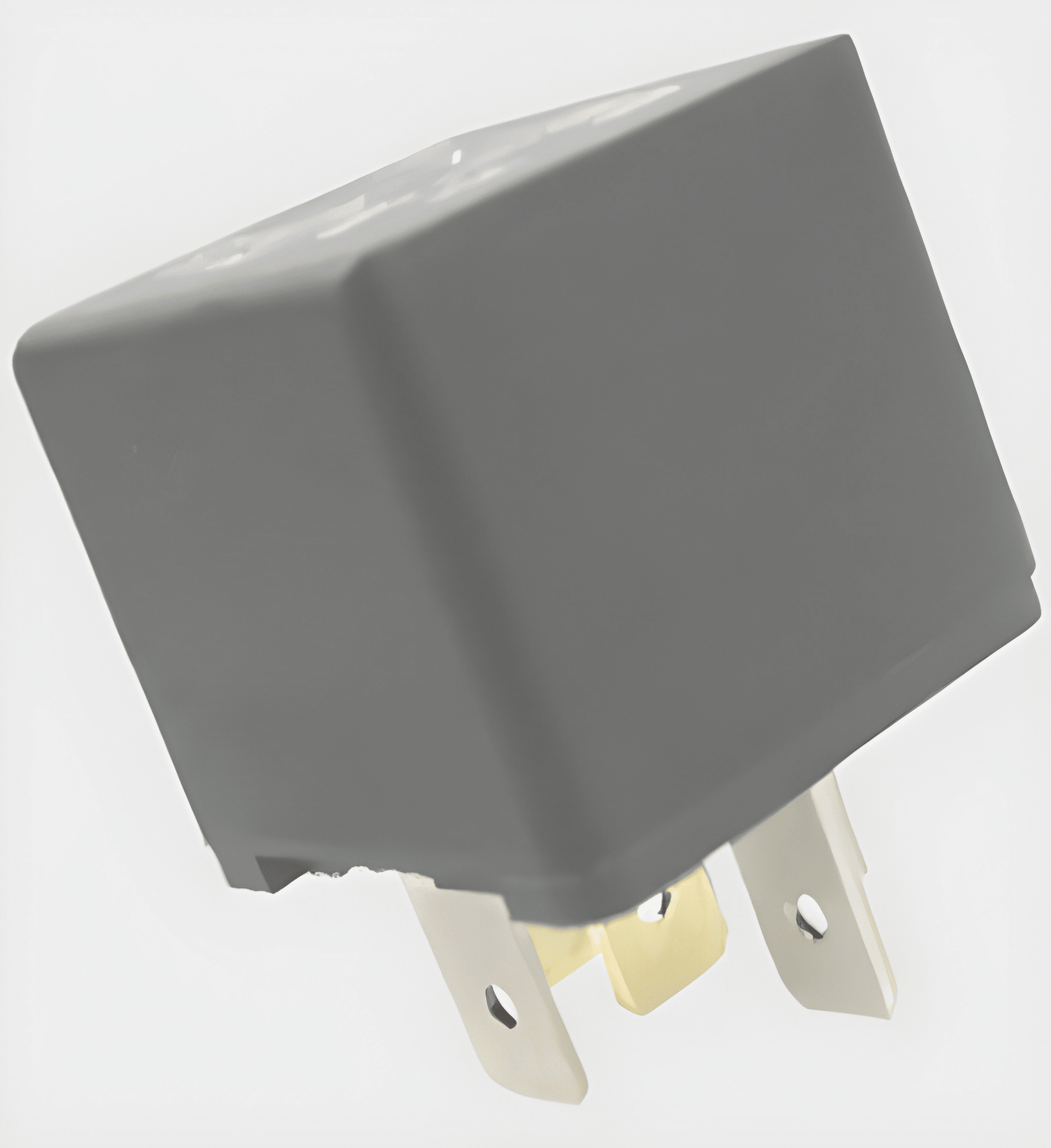

• 12V 40A normally open mini relay with a grey plastic case and bottom terminal pins from MURE

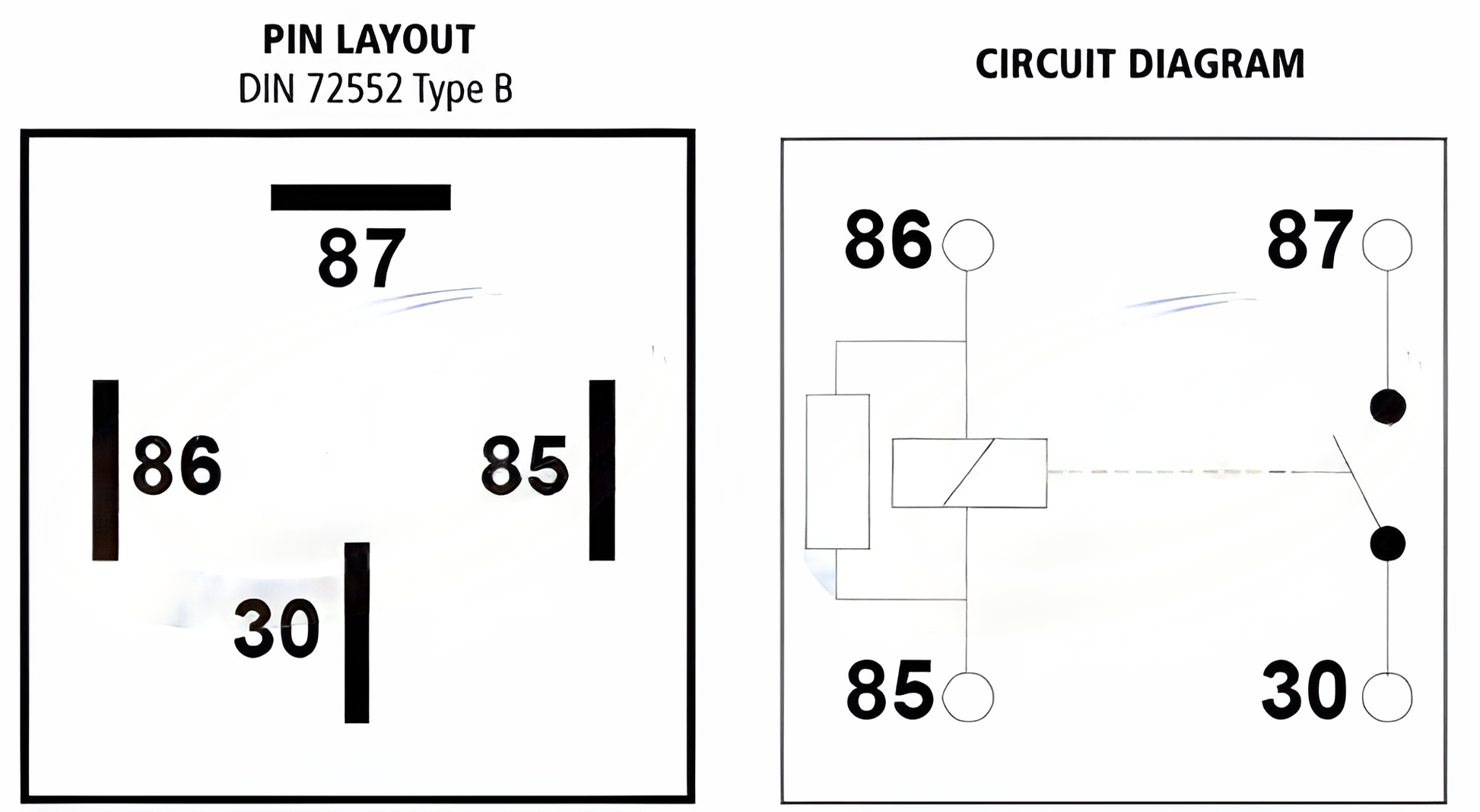

  • 12V 40A mini relay DIN 72552 Type B pin layout and resistor protection circuit diagram by MURE
1 2

12V 40A Normally Open Contact 4 Pin Mini Relay (Resistor Protection) CurrentCare 02-022

12V 40A Normally Open Contact 4 Pin Mini Relay (Resistor Protection) CurrentCare 02-022

Vendor:Current Care

Availability: Low stock: 5 left

Product Type:02-022

Product Indentifier:7426994758476

£5.80 inc VAT £4.83 ex VAT
£8.03 £5.80 inc VAT £4.83 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12V 40A Normally Open Contact 4 Pin Mini Relay (Resistor Protection)

02-022

RLY1022

This robust 12V mini relay is engineered for high-load automotive and industrial use. Featuring a 4-pin normally open contact, built-in resistor protection to suppress voltage spikes. Perfect for lighting, pumps, fan motors and switch-gear on cars, trailers, agricultural and commercial vehicles.

Key Features:

  • Type: 4-pin Normally Open Relay with Resistor Protection
  • Voltage: 12 V
  • Continuous Load: 40 A
  • Peak Load: 80 A
  • Bracket Type: None
  • Terminal Size: 4 × 6.3mm Spade Terminals

Another High Quality Current Care Product (A UK Company)

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
