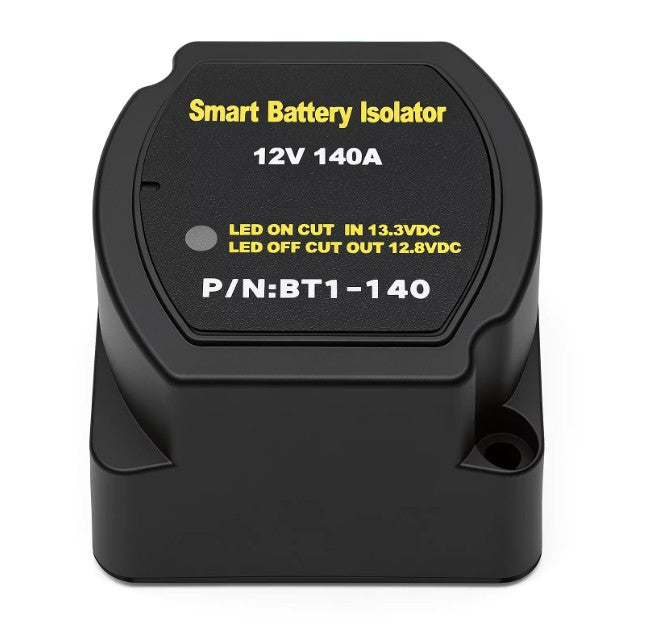

12V 70A / 140A Voltage Sensitive Relay (VSR) Screw Fit Base Bracket, Smart Split Charge Dual Battery Charging MURE 02-049M

12V 70A / 140A Voltage Sensitive Relay (VSR) Screw Fit Base Bracket, Split Charge Dual Battery Charging

02-049M

RLY1039

Product Details:

• Type: Advanced Voltage Sensitive Relay (VSR) specifically designed for dual battery charging systems.
• Voltage: Engineered for 12V electrical systems.
• Current Rating: Handles a continuous load of 70 Amps and a peak load of 140 Amps.

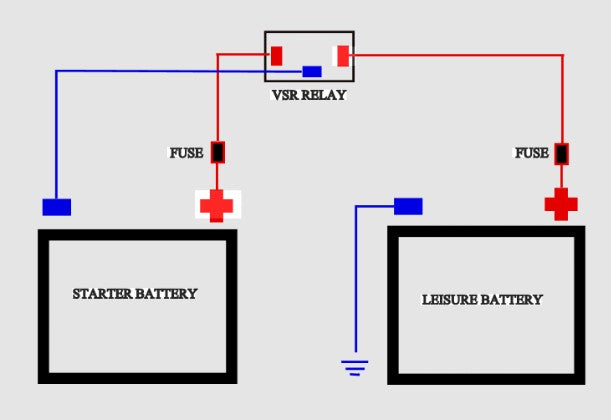

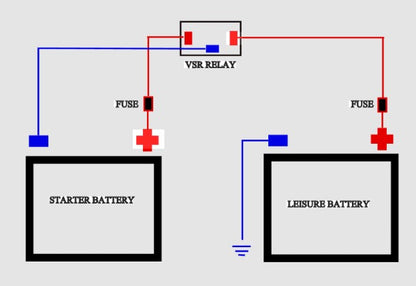

• Intelligent Charging: Automatically charges both the vehicle's primary start battery and an auxiliary battery simultaneously.
• Battery Protection: Eliminates the risk of draining the vehicle's start battery, ensuring reliable engine starting.
• Equipment Safeguard: Protects sensitive electronic equipment connected to the auxiliary battery from damaging power spikes during engine startup.
• Cut-In Voltage: Activates charging at 13.3V.
• Drop-Out Voltage: Disconnects at 12.8V to prevent discharge.

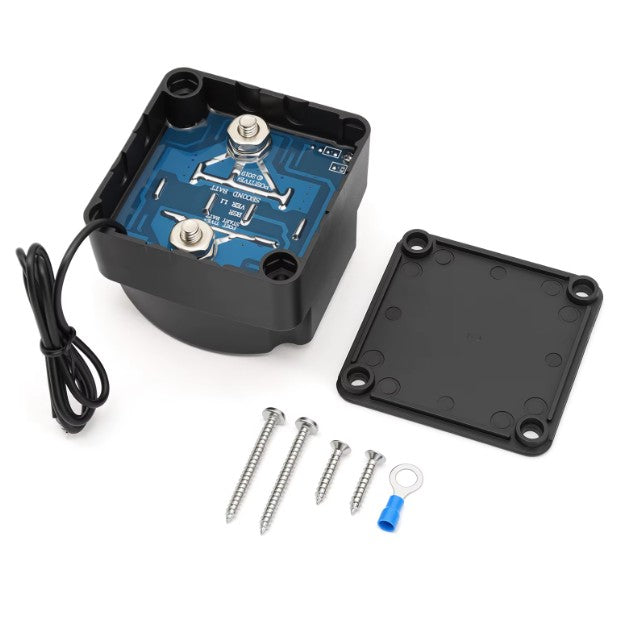

• Mounting: Features a robust Screw Fit Base for secure installation.

Application:

• Ideal for caravans, campervans, motorhomes, 4x4s, boats, and other vehicles requiring efficient and safe management of dual battery setups for auxiliary power.

Another High Quality M.U.R.E Product (A UK Company)
