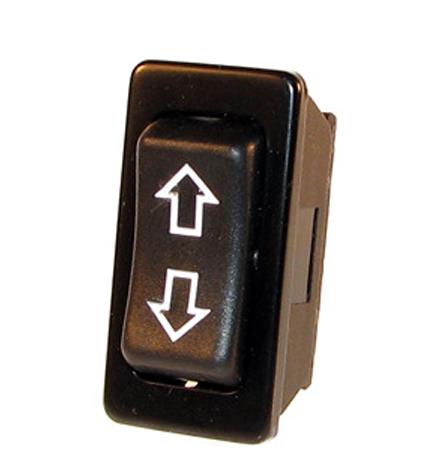

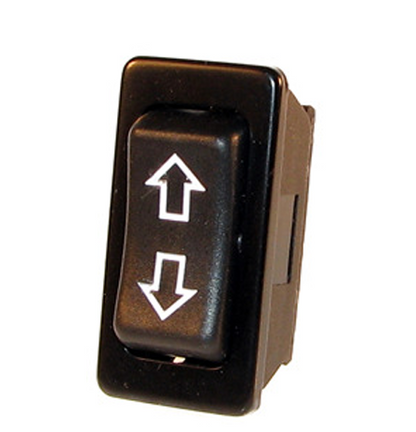

• Rectangular black plastic rocker switch featuring white up and down directional arrows

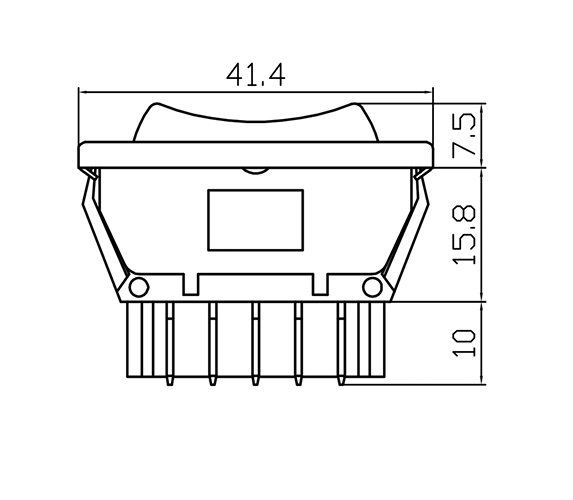

  • Technical line drawing diagram of a rocker switch showing dimension measurements in millimetres

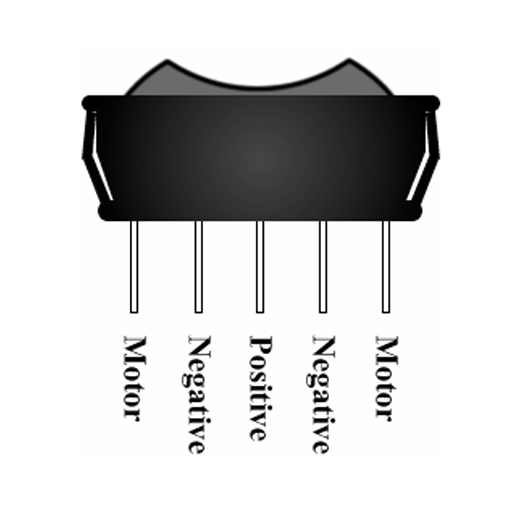

  • Black 5-pin rocker switch diagram labeled motor negative positive negative and motor terminals

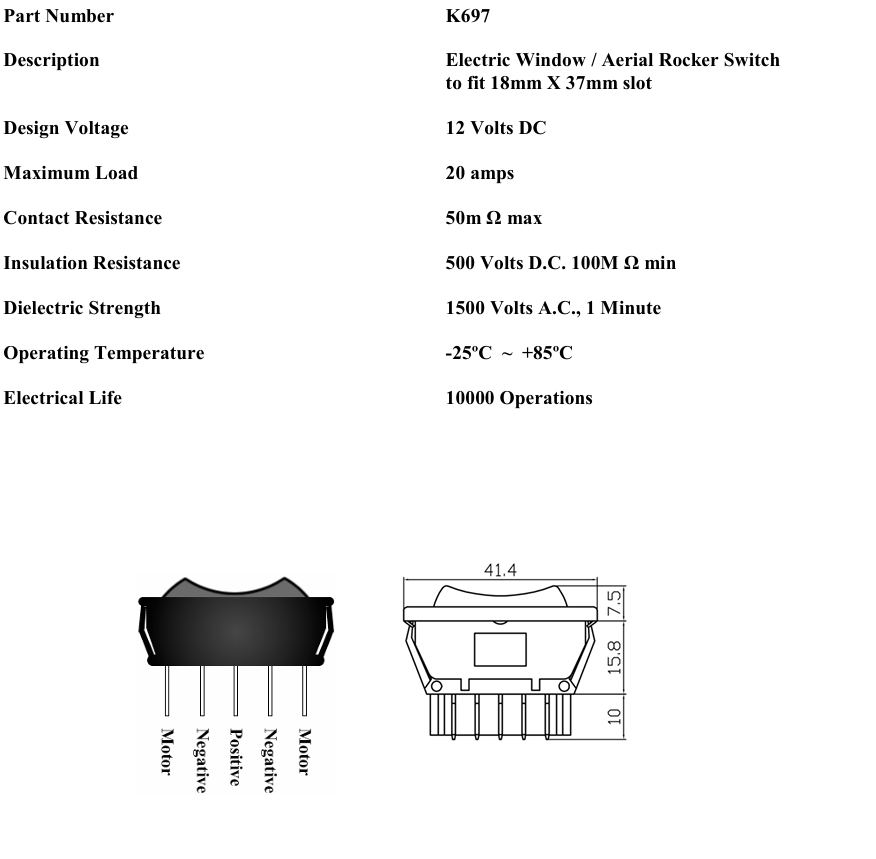

  • Electric window and aerial rocker switch specifications with 5-pin wiring diagram and technical dimensions
1 4

12V Electric Window Rocker Switch Rectangle 20A Robinson K697

12V Electric Window Rocker Switch Rectangle 20A Robinson K697

Vendor:Robinson

Availability: 14 in stock

Product Type:K697

Product Indentifier:7426994757813

£8.20 inc VAT £6.83 ex VAT
£11.99 £8.20 inc VAT £6.83 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12V Electric Window Rocker Switch Rectangle 20A Robinson

K697

This is a rocker switch designed for use with electric windows or aerials. It is rated for 12 Volts DC and has a maximum load of 20 amps.

Physical specifications:

  • Design Voltage: 12 Volts DC
  • Maximum Load: 20 amps
  • Contact Resistance: 50m Ω max
  • Insulation Resistance: 500 Volts D.C. 100M Ω min
  • Dielectric Strength: 1500 Volts A.C., 1 Minute
  • Operating Temperature: ~
  • Electrical Life: 10,000 Operations

Dimensions:

  • Mounting slot: 18mm x 37mm
  • Length: 41.4mm
  • Height: 33.3mm

ANOTHER QUALITY PRODUCT FROM ROBINSON

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
