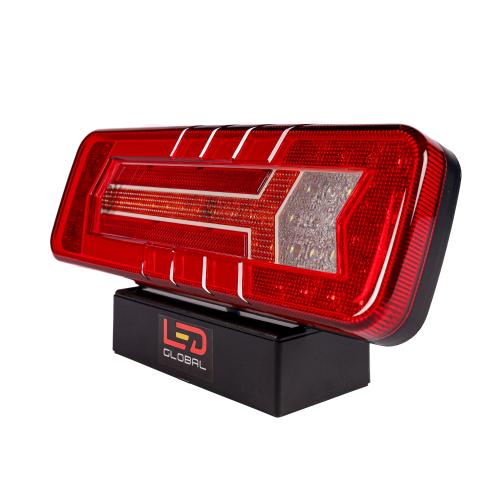

1 x Led Rear Multifunction Lamps Dual Voltage Dynamic Indicator, Tail Light, & Stop / Brake Light
LG528
Can be Fitted on left Or Right Hand Side, Can be used for truck, trailers, agricultural vehicles, caravans, tractors, trailers, diggers, and forklifts etc.
General Characteristics
- Application: LED Trailer Tail Light Combination
- Direction: Universal Tail Light
- Stop/Tail/Dynamic Indicator /Fog/Reverse/ Reflector
-
9-30v Application
- Built-in dynamic Indicator
- 50,000h / E Mark Certified / IP68
- ECE R10, R3, R6, R7, R23, R38, R91 Approved
- EMC - CISPR25 Class 4 (Radio Frequency Suppression)
- Supplied with socket & 50cm of cable
Technical Light Properties
- Light Colour: Amber/ Red/ White
- Colour temperature: 6000K On Reverse
Electrical Characteristics
- High intensity CREE XTE LEDs
- Suitable for 9-30V DC
- Vibration Test to 15G

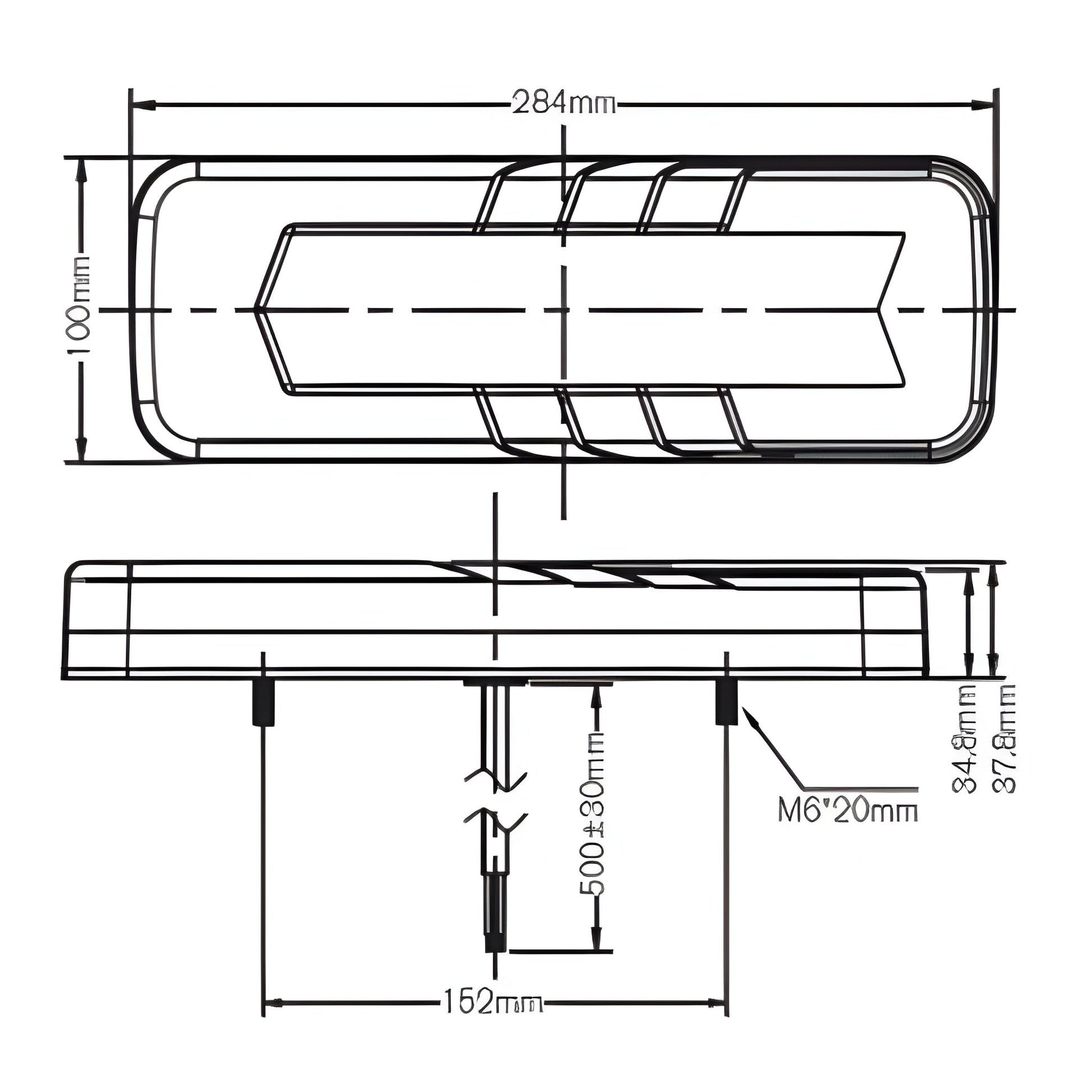

Dimensions
- Lamp width: 284 mm
- Lamp height: 100 mm
- Lamp thickness: 32 mm

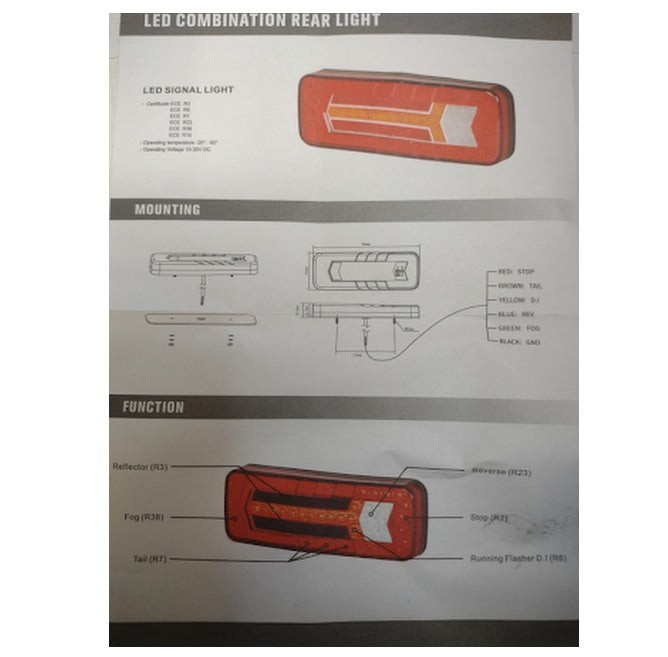

Wiring Diagram:
BLACK = EARTH BROWN = TAIL RED = BRAKE YELLOW = INDICATOR BLUE = REVERSE GREEN = FOG
ANOTHER HIGH QUALITY LED GLOBAL PART
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
