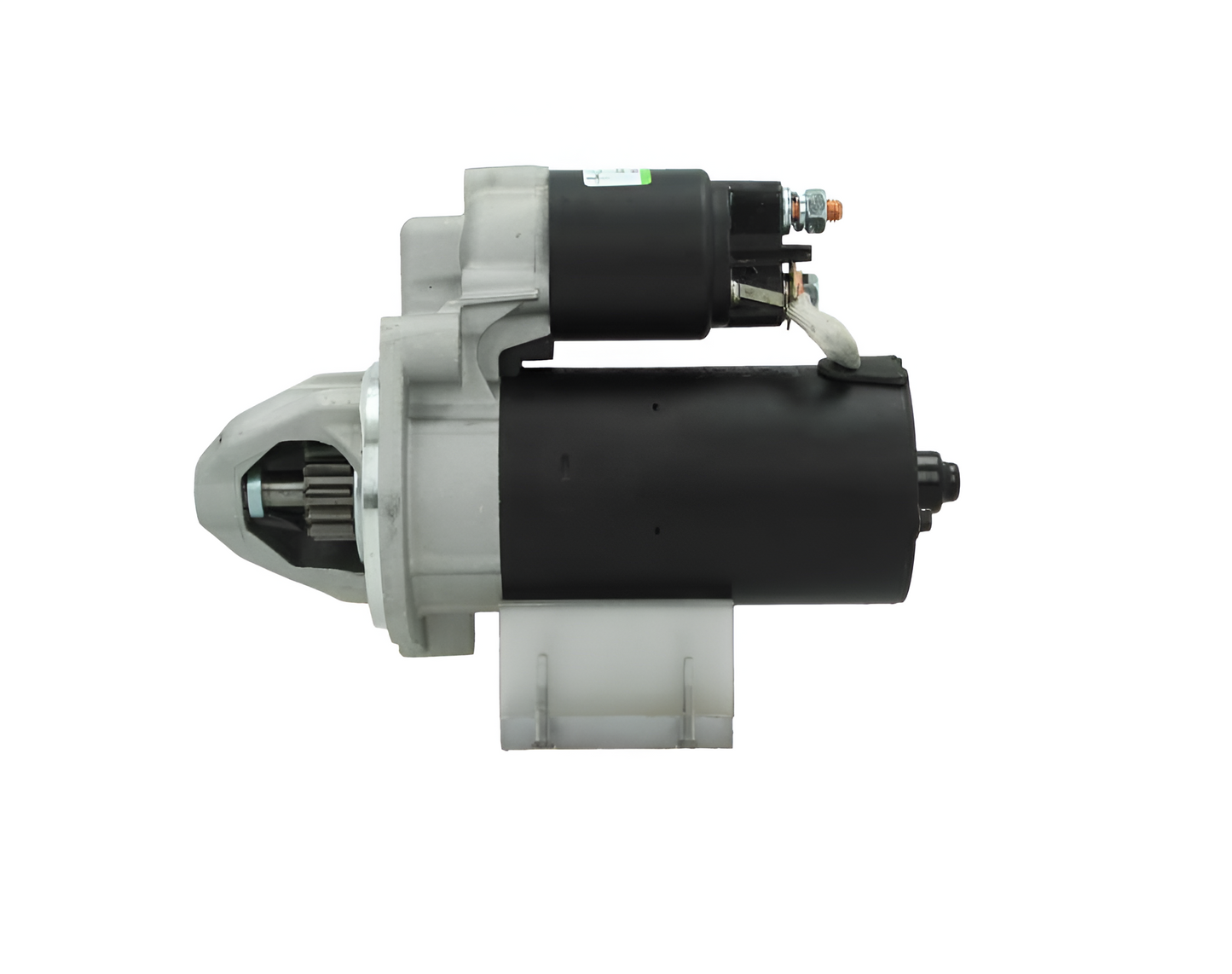

• STR50481 12v starter motor for Mercedes Sprinter 1 7KW 12-tooth Gray metal and black casing
  • STR50481 12v Starter Motor a 1 7KW 12-tooth unit from Wood Auto Supplies offered by Mid Ulster Rotating Electrics

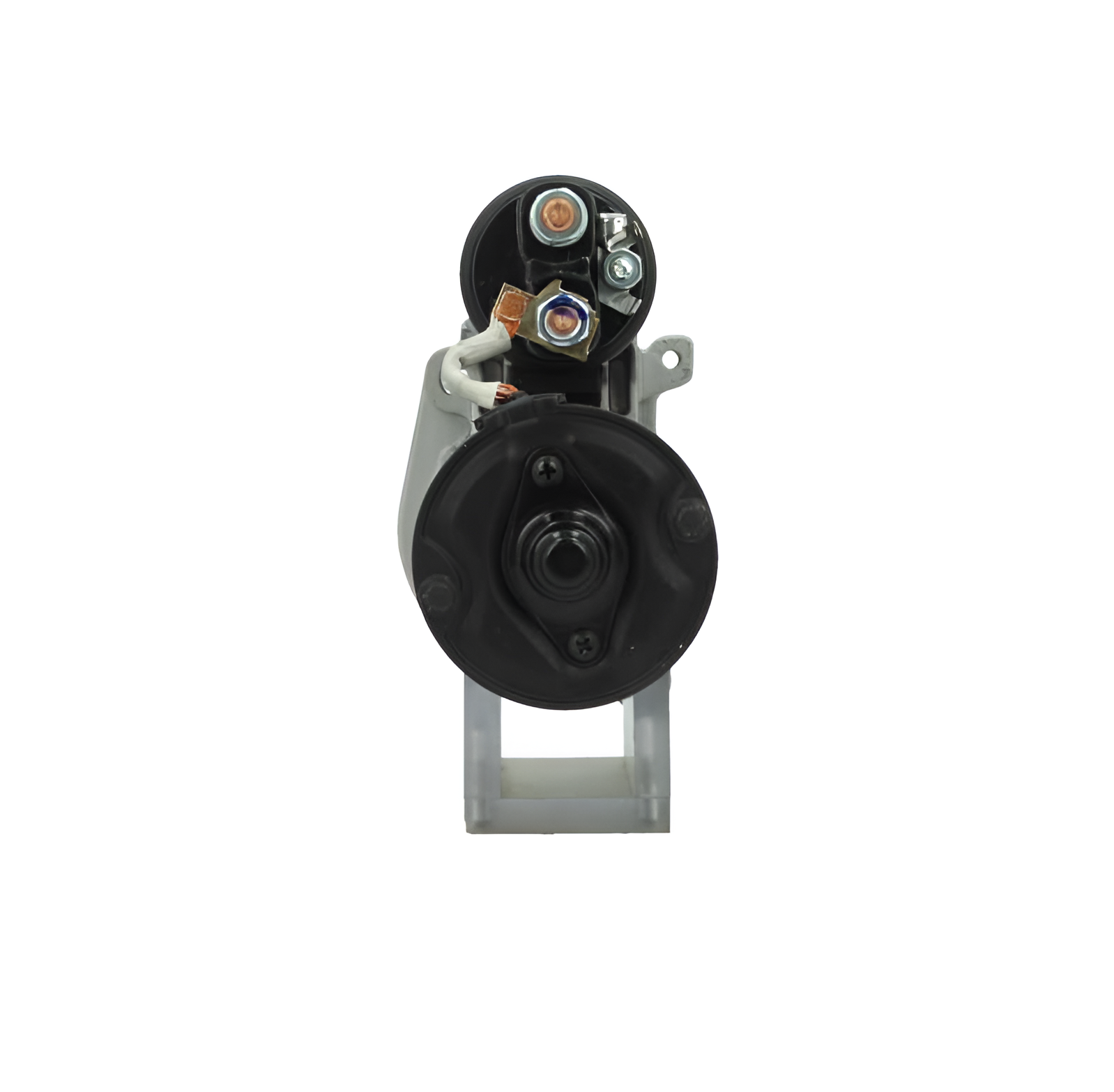

  • Rear view of a vehicle starter motor from MURE showing black end cap metal housing and solenoid terminals

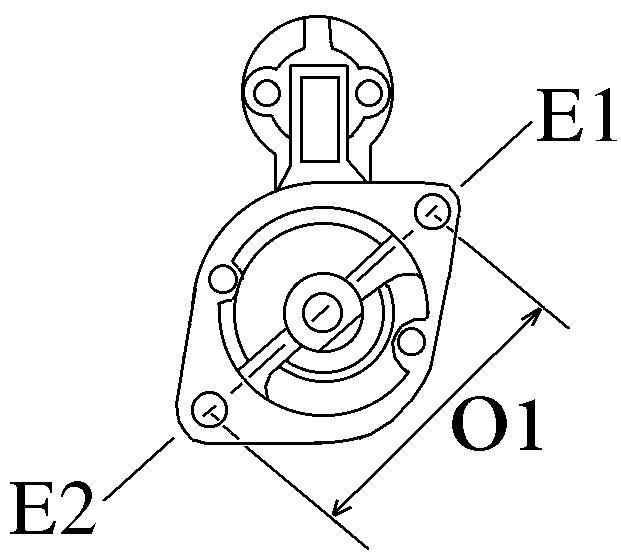

  • Line drawing of a 12v starter motor STR50481 with measurements labeled E1 E2 and O1

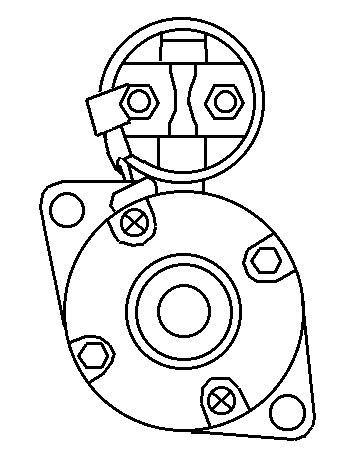

  • Line art drawing of a 12v starter motor STR50481 with a 12 tooth gear from Wood Auto Supplies Ltd

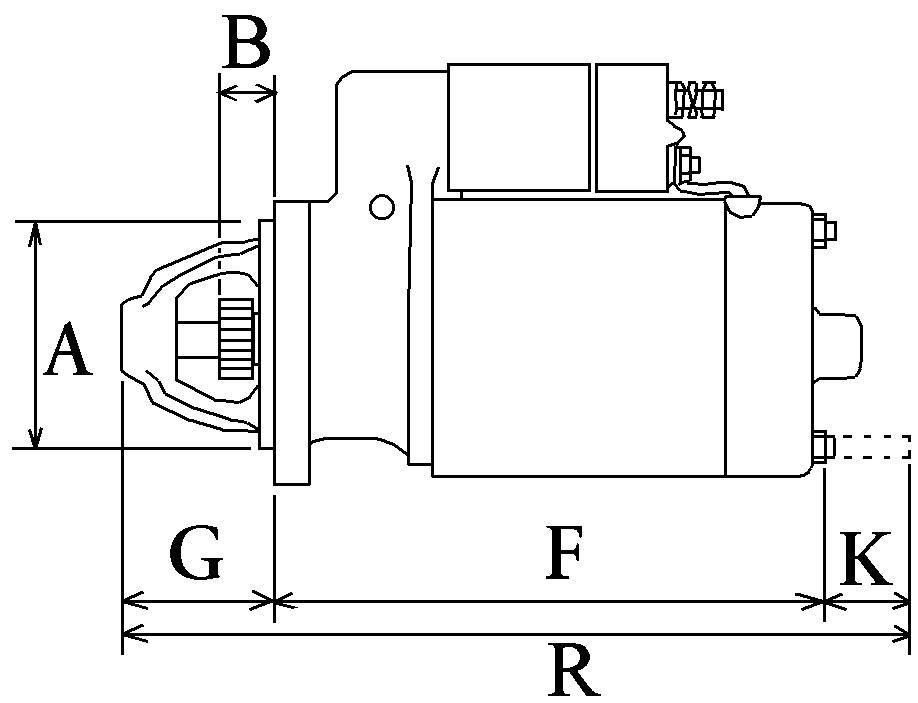

  • Line drawing of a 12v starter motor STR50481 with key dimensions A B G F K R labeled
1 6

12v Starter Motor 1.7KW 12 Tooth To Fit Mercedes Sprinter Etc. 114093 / STR50481

12v Starter Motor 1.7KW 12 Tooth To Fit Mercedes Sprinter Etc. 114093 / STR50481

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:STR50481

Product Indentifier:7426994749542

£110.65 inc VAT £92.21 ex VAT
£119.99 £110.65 inc VAT £92.21 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Starter Motor To Fit Mercedes Sprinter, C200, E200, C220 Etc. 114093 / STR50481

114093

STR50481

Electrical information

  • Voltage 12
  • Kw 1.7

Physical information

  • H No./teeth 12
  • P Rotation CW
  • N Gear type GR
  • A Mount. flange 82.50
  • I B+ M8
  • No./mount. holes 2 (2)
  • B Drive dist. 26.00
  • E Mount. holes M10
  • E Mount. hole 2 M10
  • F Dist./back 162.00
  • G Dist./front 60.00
  • M Mount. bracket No
  • O Dist. mm 105.50
  • R Total length mm 237.00

Catalogue information

  • Drive type - Steel

Replacing

  • 0001115047    Bosch
  • 0001115047RD    RNL
  • 0001115048    Bosch
  • 0001115074    Bosch
  • 0001115075    Bosch
  • 0061512501    Mercedes-Benz
  • 006151250180    Mercedes-Benz
  • 0061517401    Mercedes-Benz
  • 006151740180    Mercedes-Benz
  • 0986021360    Bosch Exchange
  • 102136    RNL
  • 115512    HC-Cargo
  • 12130185    AES
  • 12130285    AES
  • 17883N    WAI
  • 17883R    WAI
  • 1986S00765    Bosch
  • 458645    Valeo
  • 550535122    PSH
  • 6361510201    Mercedes-Benz
  • 63720017    Magneti Marelli
  • A0061512501    Mercedes-Benz
  • A006151250180    Mercedes-Benz
  • A0061517401    Mercedes-Benz
  • A006151740180    Mercedes-Benz
  • A6361510201    Mercedes-Benz
  • A6611514101    Mercedes-Benz
  • BOS0001115047    Wood Auto
  • BOS0001115074    Wood Auto
  • CS1410    HC-Parts
  • DRT1360    Delco Remy
  • F042202511    Bosch
  • F042S02168    Bosch
  • HCS1410    HC-Parts
  • LES0428    Lucas
  • LRS02377    Lucas
  • LRS2377    Lucas
  • MS1074    Mahle
  • OSM11710    Optimum
  • RNL2136    RNL
  • RNL2136T    RNL
  • S1368B    Prestolite
  • SEG0001115047    Wood Auto
  • STR2244    Unipoint
  • STR50481    Wood Auto
  • WOOSTR50481    Wood Auto

Fits Vehicles

  • MERCEDES-BENZ C-CLASS C 200 CDI 2001 - 2007 2148cc, 4cyl, 102HP
  • MERCEDES-BENZ C-CLASS C 200 CDI (203.007) 2003 - 2007 2148cc, 4cyl, 122HP
  • MERCEDES-BENZ C-CLASS C 200 CDI (203.204 -
  • MERCEDES-BENZ C-CLASS C 200 CDI (203.207) 2003 - 2007 2148cc, 4cyl, 122HP
  • MERCEDES-BENZ C-CLASS C 200 CDI (203.707) 2003 - 2008 2148cc, 4cyl, 122HP
  • MERCEDES-BENZ C-CLASS C 200 CDI (204.007) 2007 - 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ C-CLASS C 200 CDI (204.207) 2007 - 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ C-CLASS C 220 CDI 2001 - 2008 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ C-CLASS C 220 CDI 2007 - 2143cc, 4cyl, 163HP
  • MERCEDES-BENZ C-CLASS C 220 CDI 2007 - 2148cc, 4cyl, 163HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (203.008) 2003 - 2007 2148cc, 4cyl, 150HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (203.208) 2004 - 2007 2148cc, 4cyl, 150HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (203.208) 2006 - 2007 2149cc, 4cyl, 136HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (203.708) 2004 - 2008 2148cc, 4cyl, 150HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (204.008) 2007 - 2148cc, 4cyl, 170HP
  • MERCEDES-BENZ C-CLASS C 220 CDI (204.208) 2007 - 2148cc, 4cyl, 170HP
  • MERCEDES-BENZ C-CLASS C 230 (204.052) 2007 - 2496cc, 6cyl, 204HP
  • MERCEDES-BENZ C-CLASS C 250 (204.052) 2007 - 2496cc, 6cyl, 204HP
  • MERCEDES-BENZ C-CLASS C 300 (204.054) 2009 - 2996cc, 6cyl, 231HP
  • MERCEDES-BENZ C-CLASS C 300 4-matic (204.081) 2007 - 2996cc, 6cyl, 231HP
  • MERCEDES-BENZ C-CLASS C 350 (204.056) 2007 - 3498cc, 6cyl, 272HP
  • MERCEDES-BENZ C-CLASS C 350 (204.057) 2011 - 3498cc, 6cyl, 306HP
  • MERCEDES-BENZ C-CLASS C 350 4-matic (204.087) 2007 - 3498cc, 6cyl, 272HP
  • MERCEDES-BENZ C-CLASS C 350 CGI (204.065) 2008 - 3498cc, 6cyl, 292HP
  • MERCEDES-BENZ CLC-CLASS CLC 200 CDI (203.707) 2008 - 2011 2148cc, 4cyl, 122HP
  • MERCEDES-BENZ CLC-CLASS CLC 220 CDI (203.708) 2008 - 2011 2148cc, 4cyl, 150HP
  • MERCEDES-BENZ CLK 220 CDI (209.308) 2005 - 2009 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ CLK 220 CDI (209.308) 2005 - 2009 2148cc, 4cyl, 150HP
  • MERCEDES-BENZ E-CLASS E 200 CDI (211.007) 2006 - 2008 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ E-CLASS E 200 CDI (211.207) 2006 - 2009 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ E-CLASS E 220 CDI 1999 - 2002 2148cc, 4cyl, 136HP
  • MERCEDES-BENZ E-CLASS E 220 CDI 2003 - 2008 2149cc, 4cyl, 163HP
  • MERCEDES-BENZ E-CLASS E 220 CDI 2009 - 2143cc, 4cyl, 163HP
  • MERCEDES-BENZ E-CLASS E 220 CDI 2014 - 2143cc, 4cyl, 163HP
  • MERCEDES-BENZ E-CLASS E 220 CDI (211.008) 2006 - 2008 2148cc, 4cyl, 170HP
  • MERCEDES-BENZ E-CLASS E 220 T CDI 2003 - 2009 2148cc, 4cyl, 163HP
  • MERCEDES-BENZ E-CLASS E 220 T CDI (211.208) 2006 - 2009 2148cc, 4cyl, 170HP
  • MERCEDES-BENZ SPRINTER 209 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 209 CDI (906.611 -
  • MERCEDES-BENZ SPRINTER 210 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 211 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 211 CDI (906.611 -
  • MERCEDES-BENZ SPRINTER 211 CDI (906.711 -
  • MERCEDES-BENZ SPRINTER 213 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 213 CDI (906.611 -
  • MERCEDES-BENZ SPRINTER 215 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 215 CDI (906.611 -
  • MERCEDES-BENZ SPRINTER 215 CDI (906.711 -
  • MERCEDES-BENZ SPRINTER 216 CDI (906.111 -
  • MERCEDES-BENZ SPRINTER 309 CDI (906.131 -
  • MERCEDES-BENZ SPRINTER 309 CDI (906.631 -
  • MERCEDES-BENZ SPRINTER 311 CDI (906.131 -
  • MERCEDES-BENZ SPRINTER 311 CDI (906.631 -
  • MERCEDES-BENZ SPRINTER 311 CDI (906.731 -
  • MERCEDES-BENZ SPRINTER 311 CDI (909.632 -
  • MERCEDES-BENZ SPRINTER 311 CDI 4x4 (906.131 -
  • MERCEDES-BENZ SPRINTER 311 CDI 4x4 (906.631 -
  • MERCEDES-BENZ SPRINTER 311 CDI 4x4 (906.731 -
  • MERCEDES-BENZ SPRINTER 313 CDI (906.131 -
  • MERCEDES-BENZ SPRINTER 313 CDI (906.631 -
  • MERCEDES-BENZ SPRINTER 315 CDI (906.131 -
  • MERCEDES-BENZ SPRINTER 315 CDI (906.631 -
  • MERCEDES-BENZ SPRINTER 315 CDI (906.731 -
  • MERCEDES-BENZ SPRINTER 315 CDI 4x4 (906.131 -
  • MERCEDES-BENZ SPRINTER 315 CDI 4x4 (906.631 -
  • MERCEDES-BENZ SPRINTER 315 CDI 4x4 (906.731 -
  • MERCEDES-BENZ SPRINTER 316 CDI (906.131 -
  • MERCEDES-BENZ SPRINTER 316 CDI 4x4 (906.131 -
  • MERCEDES-BENZ SPRINTER 411 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 411 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 411 CDI (909.843) 2013 - 2148cc, 4cyl, 109HP
  • MERCEDES-BENZ SPRINTER 413 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 415 CDI 2006 - 2143cc, 4cyl, 150HP
  • MERCEDES-BENZ SPRINTER 415 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 415 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 416 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 509 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 509 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 511 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 511 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 511 CDI 4x4 (906.135 -
  • MERCEDES-BENZ SPRINTER 511 CDI 4x4 (906.653 -
  • MERCEDES-BENZ SPRINTER 515 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 515 CDI (906.653 -
  • MERCEDES-BENZ SPRINTER 515 CDI 4x4 (906.153 -
  • MERCEDES-BENZ SPRINTER 515 CDI 4x4 (906.653 -
  • MERCEDES-BENZ SPRINTER 516 CDI (906.153 -
  • MERCEDES-BENZ SPRINTER 516 CDI (906.653

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

            * All products come with 12 months warranty unless otherwise stated.
            * Please contact us with any issues so we can provide a solution for you.
        ** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
