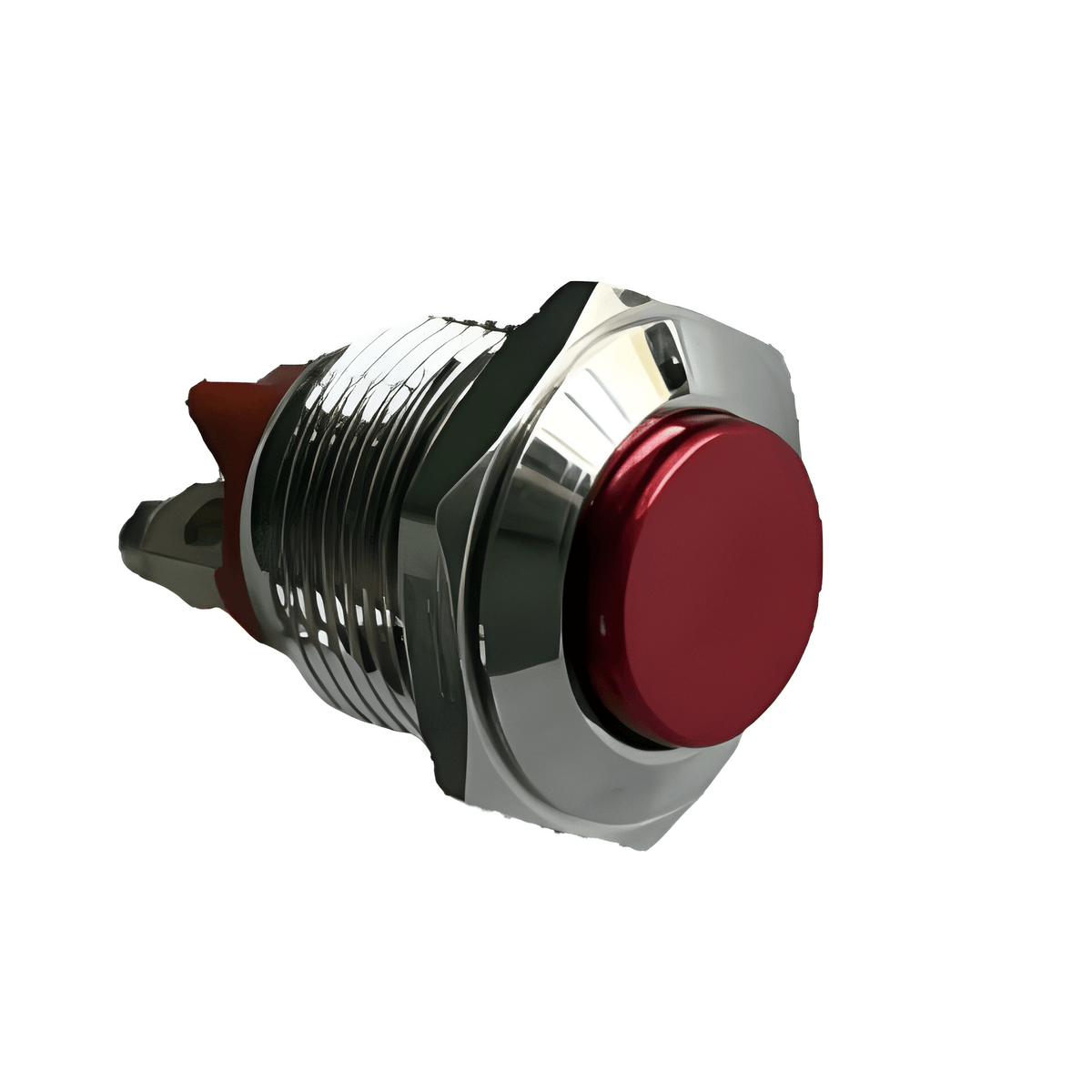

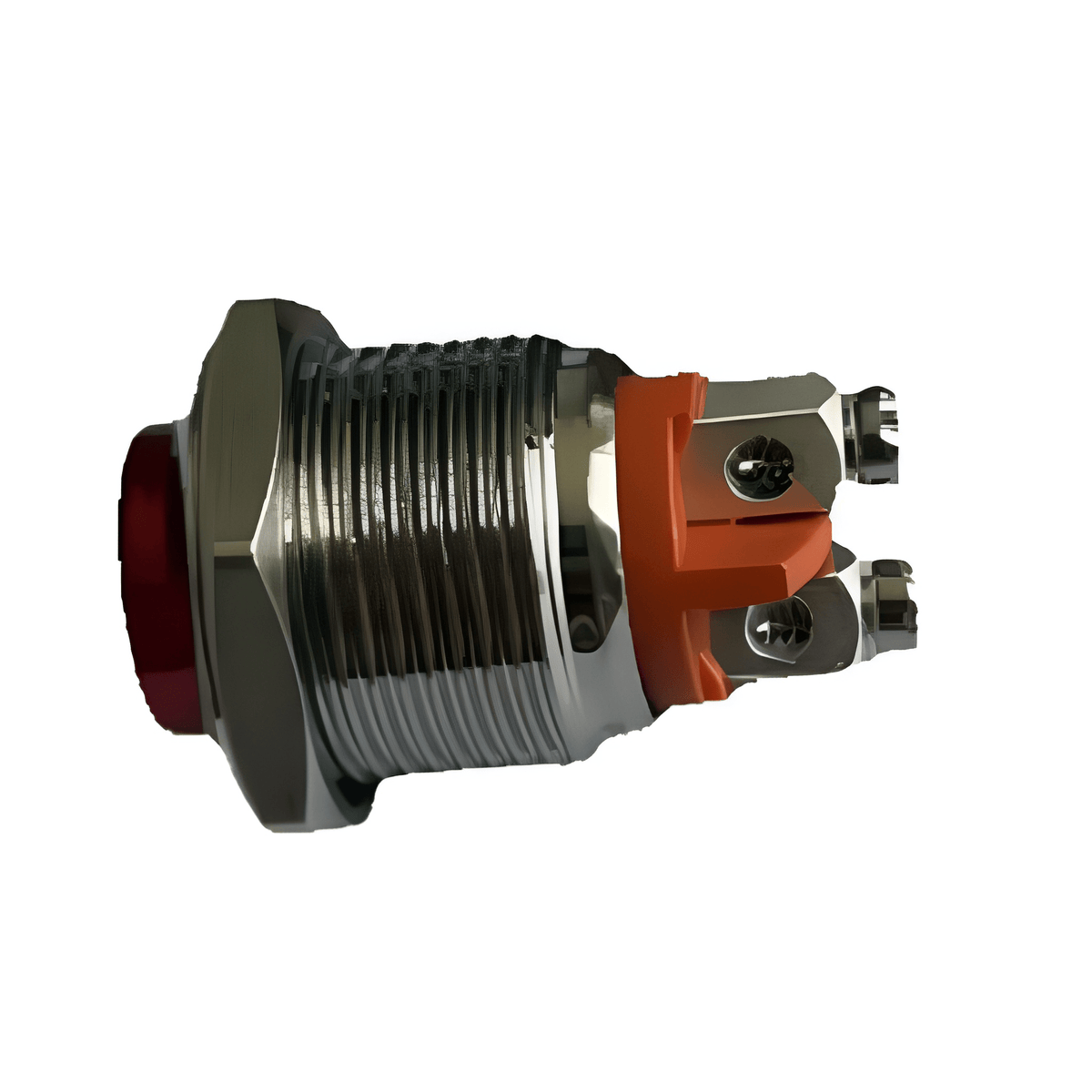

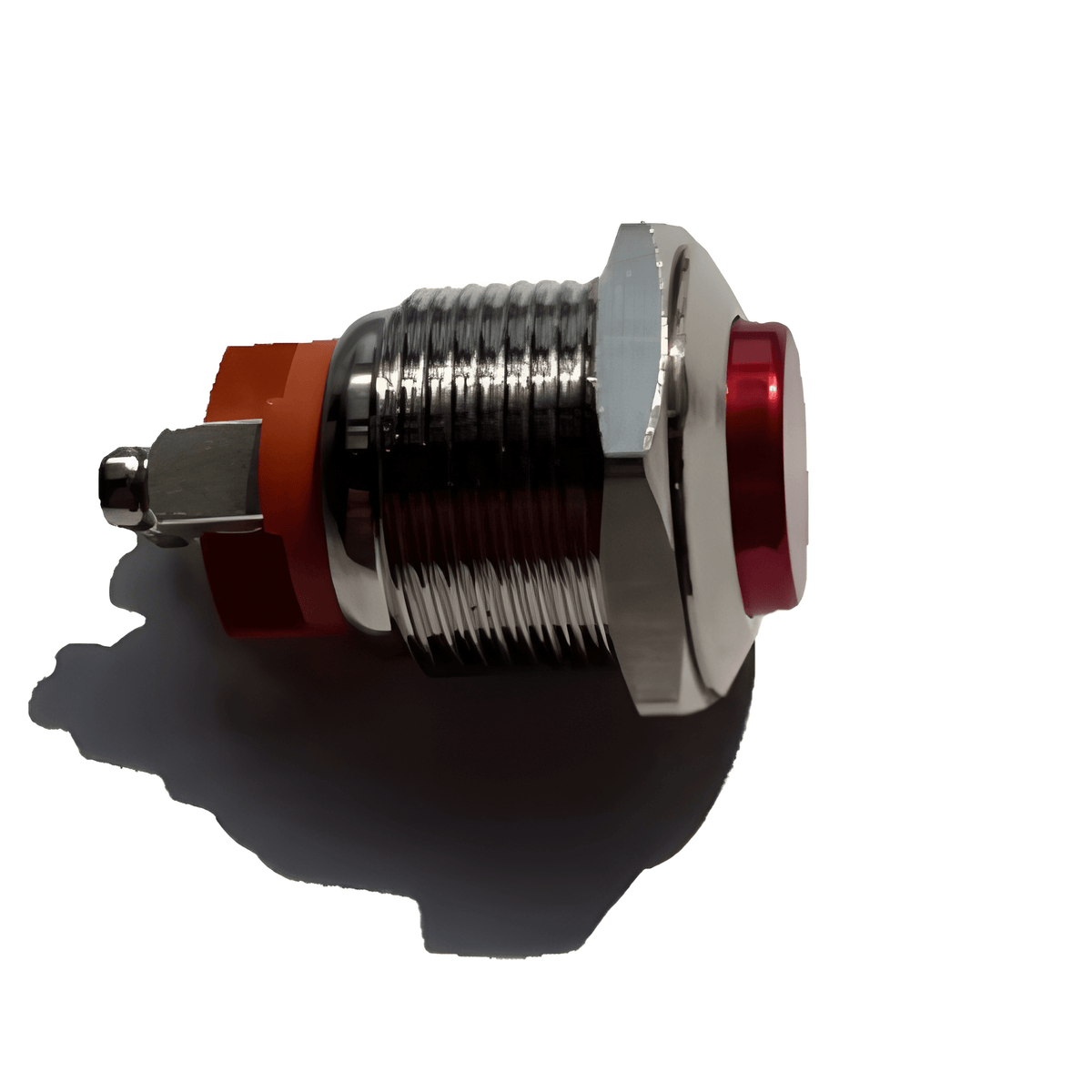

16mm Red Metal Raised Head Button Normally Closed Push to Break 12V 24V Momentary 2 Screw Terminals MURE K894N/C

16mm Red Metal Raised Head Button Normally Closed Push to Break IP65 12V 24V Momentary 2 Screw Terminals

K894N/C

Product Description:

• IP65 Waterproof Push Button Switch This 16mm NC Normal Closed Push Button Switch features an IP65 rating, ensuring reliable performance in dusty and wet environments, ideal for industrial and outdoor applications.
• Momentary Operation with Self-Reset Designed as a momentary self-reset switch, it returns to its original position after pressure is released, making it perfect for temporary activation in control systems and machinery.
• Robust Metal Construction with Copper Terminal Built with a metal red head and copper terminal, this switch ensures excellent conductivity, durability, and long-term reliability under frequent use.
• High-Flat Design for Stable Installation The high-flat structure allows for secure and stable mounting on panels, minimizing vibration and ensuring consistent performance in demanding environments.
• Rated for 6A at 12v Current and Low Voltage With a maximum current rating of 3A at 24v

Product Specifications:

• Contact Structure: 1NC

• Front Shape: Flat

• Terminal Type: Screw Terminals

• Max. Switch Rating: 6A at 12v / 3A at 24v (Use a relay for higher loads)

• Contact Resistance: ≤50mΩ

• Insulation Resistance: ≥1000mΩ

• Dielectric Strengh: 2000VAC

• Operation Temp. : -20oC ~ +55 oC

• Mechanical Life: 1,000,000 cycles

• Electrical Life: 200,000 cycles

• Contact Material: Silver Alloy

• Panel Thickness: 1~10mm

• Torque: 5~14Nm

• Operation Pressure -4N

• IP Degree: IP65

• Mounting Hole: 16mm

Dimensions:

• Height: 27.2mm

• Width: 18.8

• Button Diameter: 11.5mm
