19mm Stainless Steel Flat Head 10A Self Locking Push Button Switch 1NO 1NC MURE SW70

Vendor:M.U.R.E

Availability: Low stock: 3 left

Product Type:SW70

Product Indentifier:7426994766266

£5.84 inc VAT £4.87 ex VAT
£8.95 £5.84 inc VAT £4.87 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

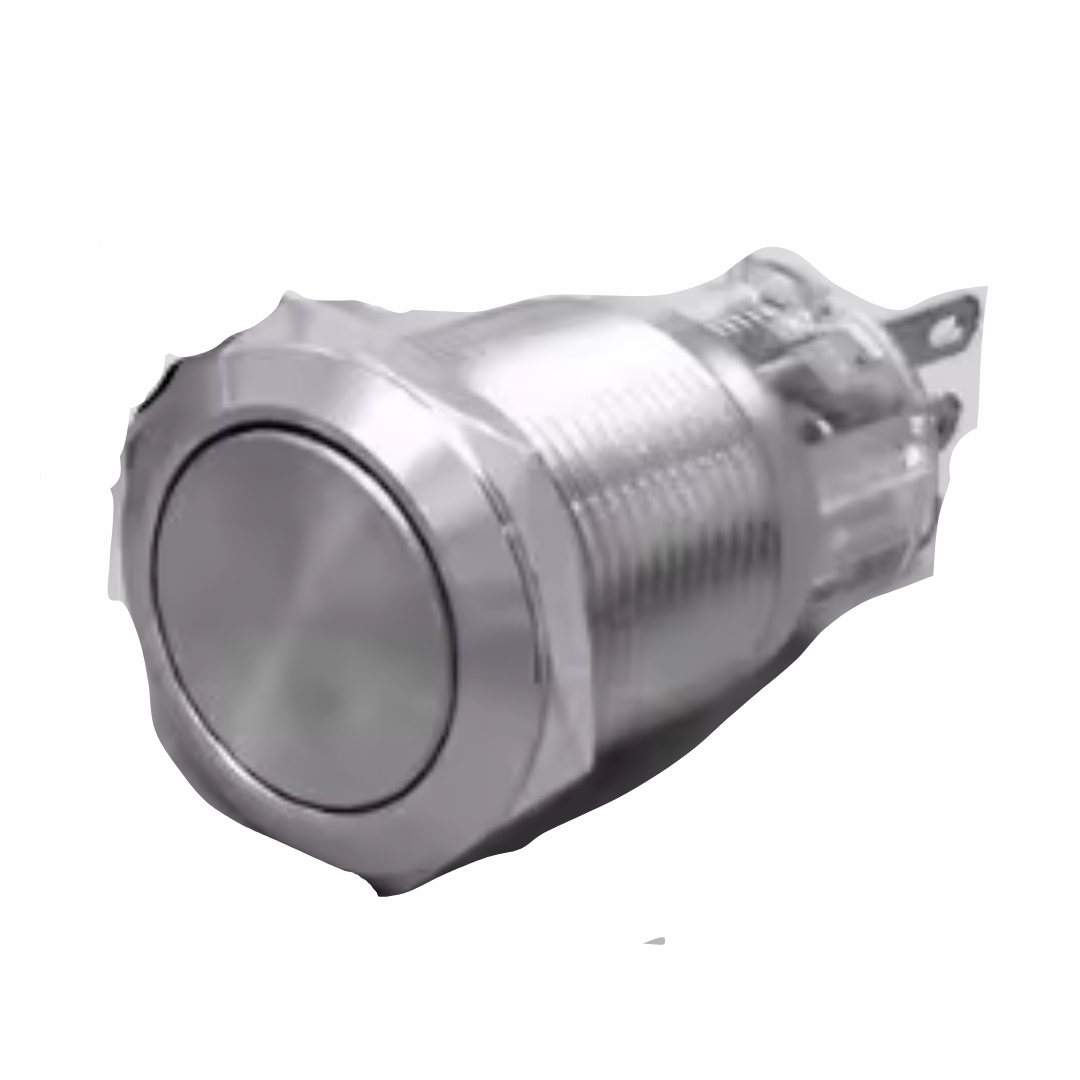

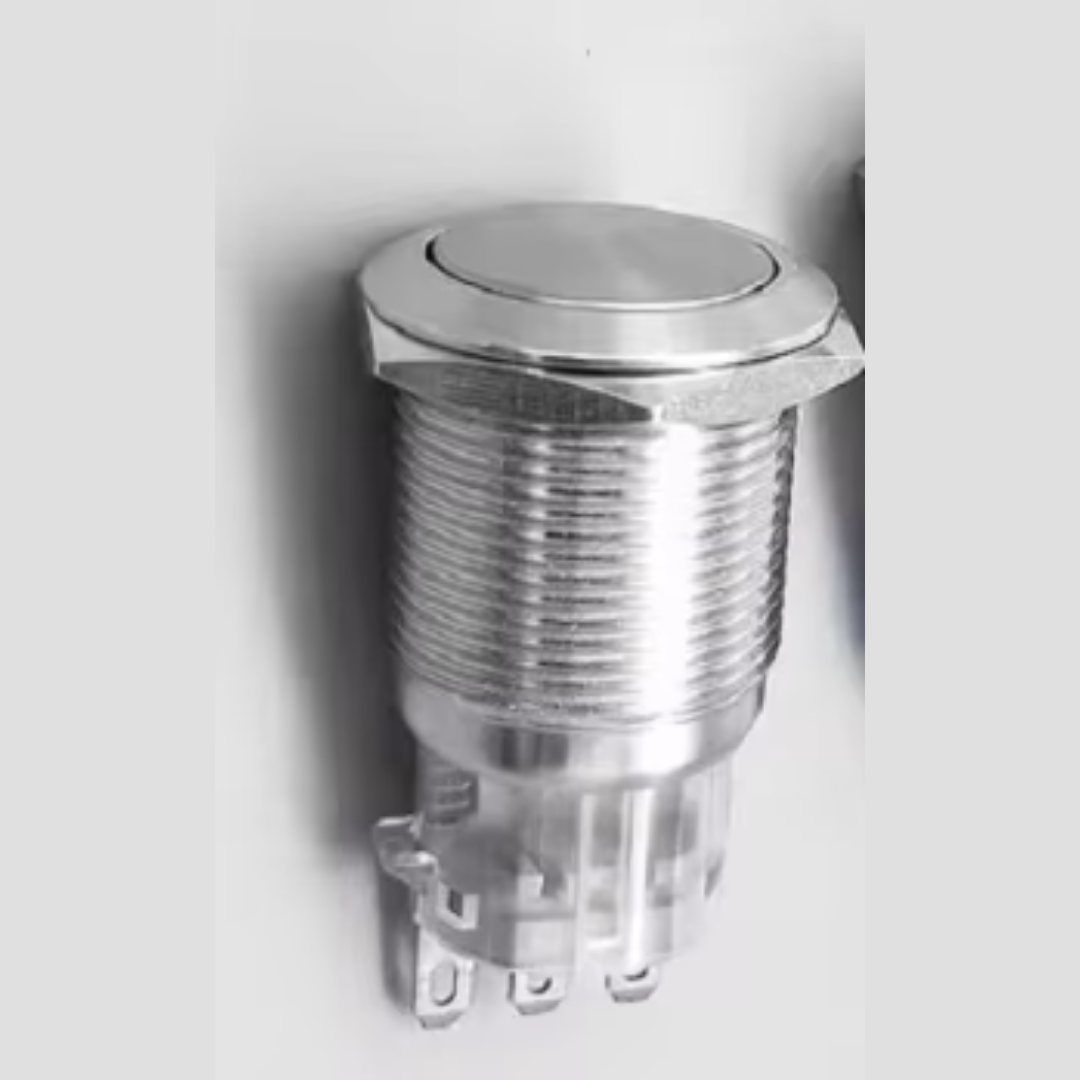

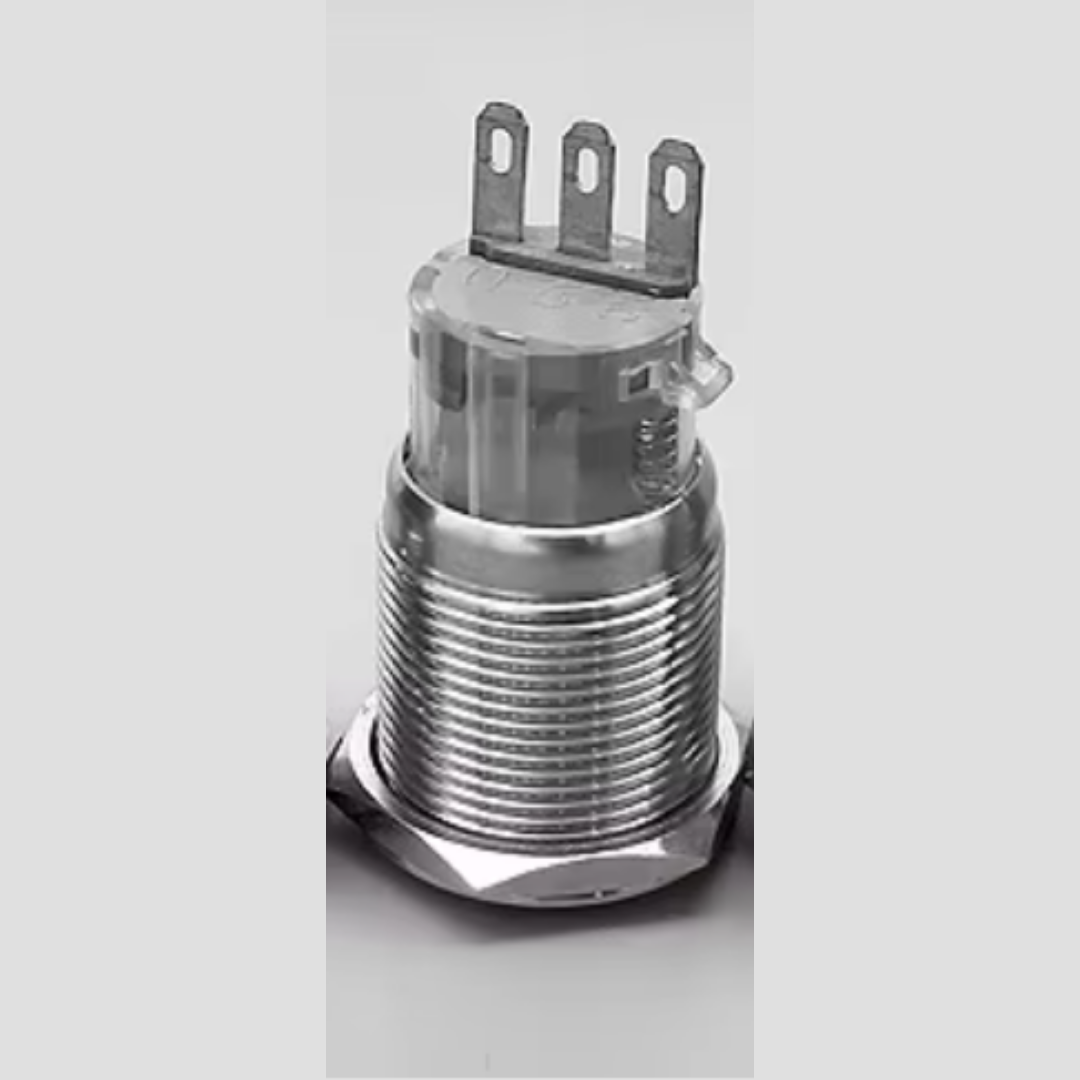

19mm Stainless Steel Flat Head 10A Self Locking Push Button Switch 1NO 1NC MURE

SW70

Product Details:

  • Switch Type: Heavy-duty stainless steel push button switch.
  • Mounting Hole Cutout: 19mm diameter thread for standard panel mounting.
  • Operation Mode: Latching / Self-Locking (Press once to latch ON; press again to release OFF).
  • Head Style: Sleek, low-profile flat head design.
  • Contact Configuration: 1NO + 1NC (One Normally Open and One Normally Closed connection point for versatile wiring setups).
  • Contacts & Housing: Silver-plated copper internal contacts for maximum conductivity, housed in a nickel-plated copper/stainless-style shell.
  • Electrical Rating: Rated up to 10A current capacity for low-voltage automotive and power circuits.
  • Terminals: Solder pin terminals for secure, permanent electrical connections.

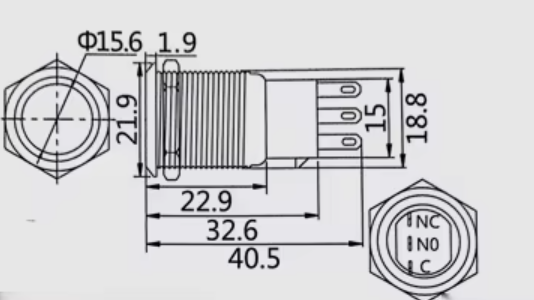

Dimensions:

  • Head Outer Diameter: 21.9 mm
  • Button Face Diameter: 15.6 mm
  • Thread Length: 22.9 mm
  • Mounting Hole: 19mm
  • Overall Length (Inc. Terminals): 40.5 mm
  • Net Weight: Approx. 30 g
      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
