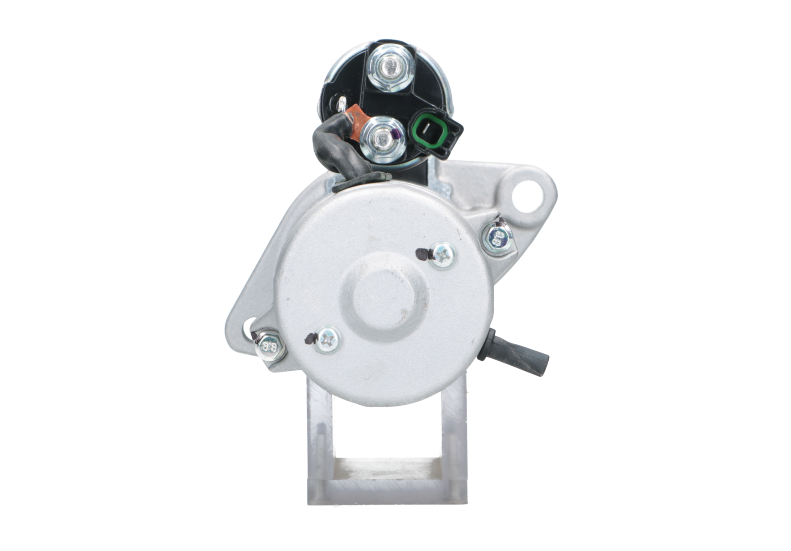

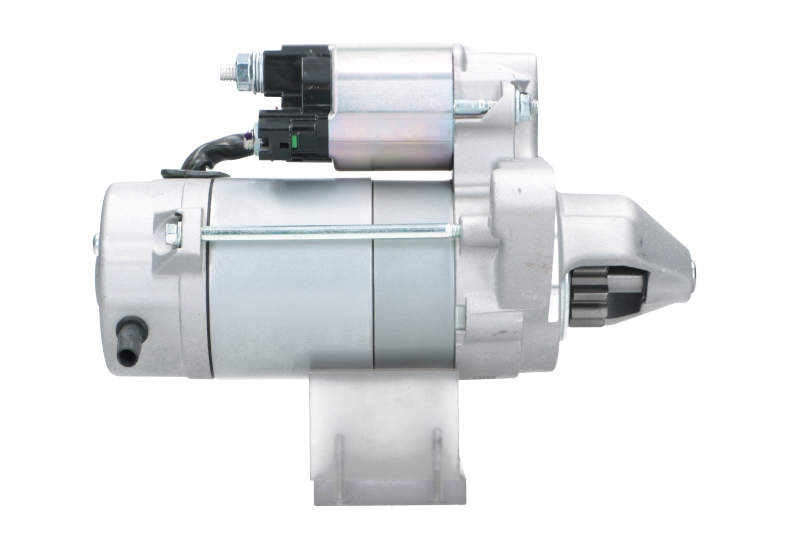

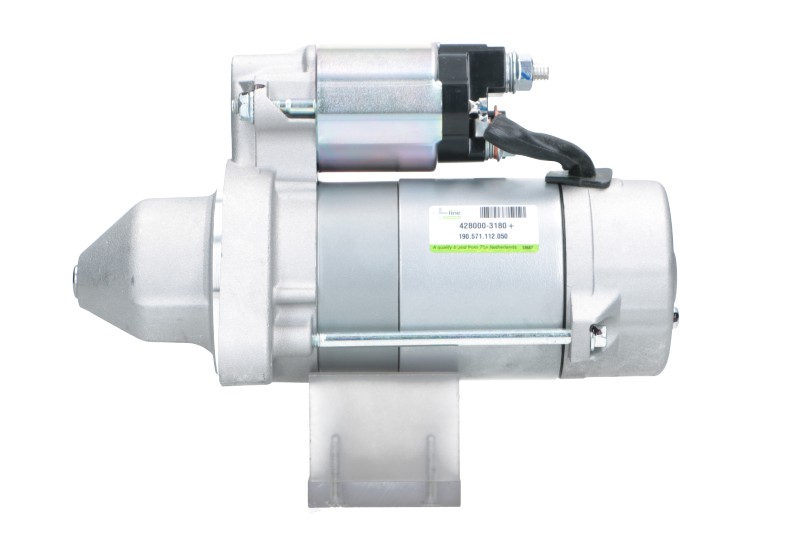

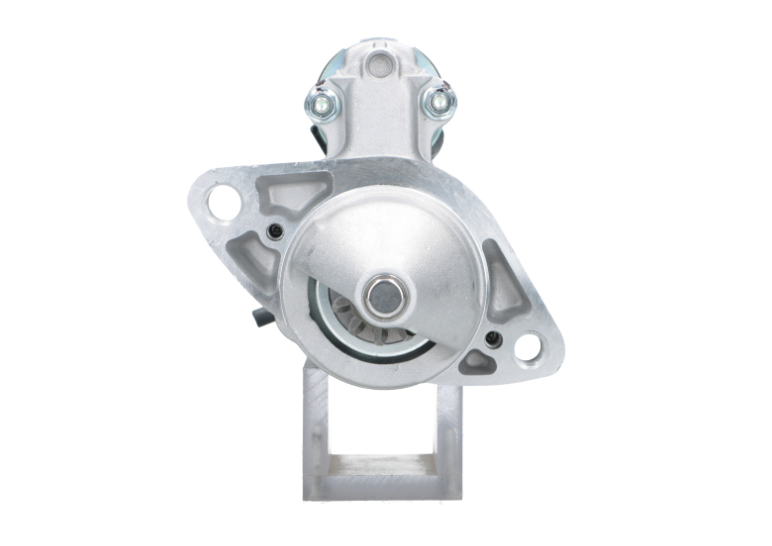

2.0KW 12v 11 Teeth Starter Motor Fits Toyota D4d, Lexus 114216 / STR70287

Starter Motor, Fits Corolla, Avensis, Rav4 Verso Etc. 114216 / STR70287

114216

STR70287

Electrical information

• Voltage 12
• Kw 2.0

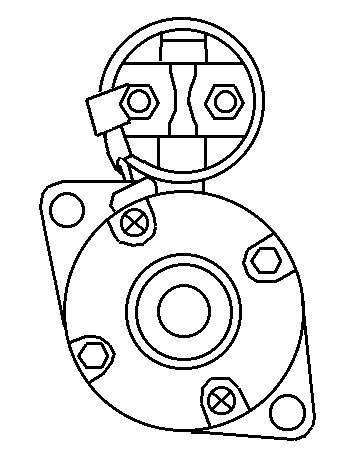

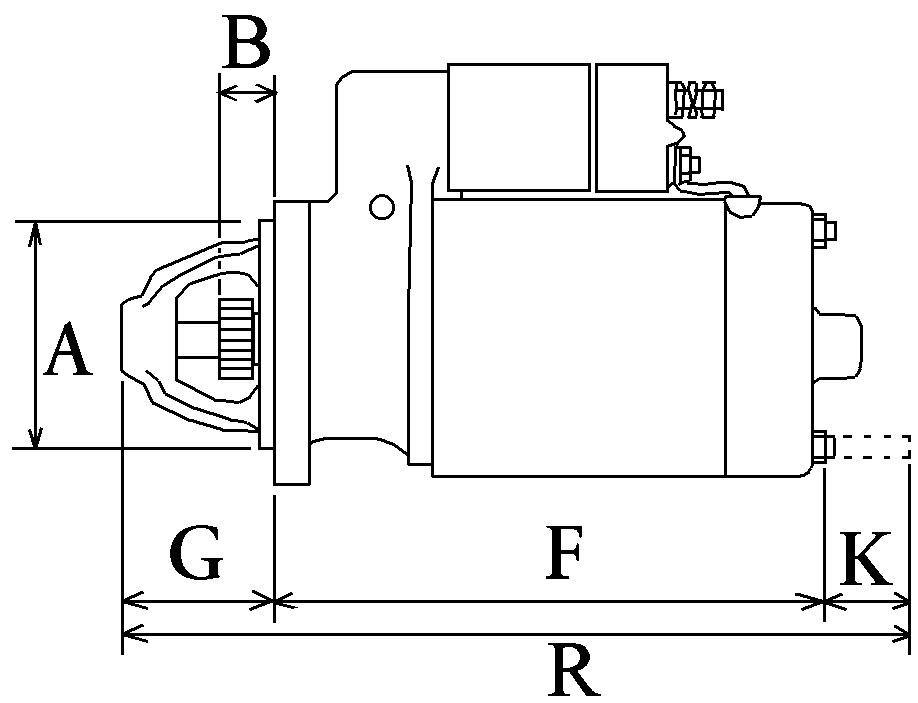

Physical information

• H No./teeth 11
• P Rotation CW
• N Gear type GR
• A Mount. flange 74.00
• I B+ M8
• No./mount. holes 2 (1)
• B Drive dist. 24.00

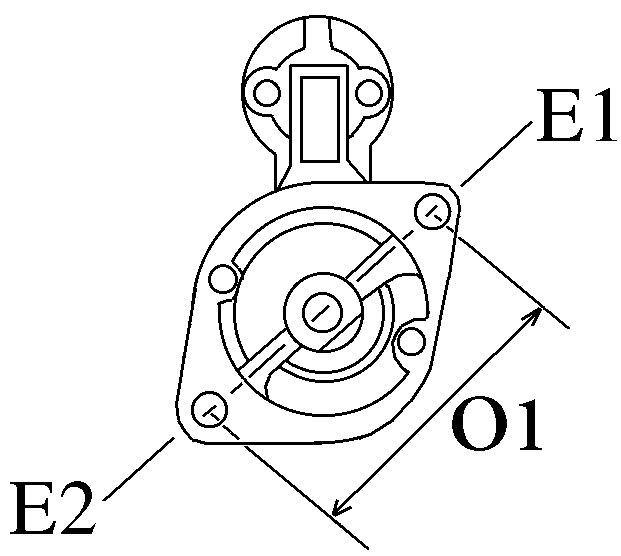

• E Mount. holes M12x1.25
• E Mount. hole 2 13.50
• F Dist./back 174.50
• G Dist./front 62.50
• M Mount. bracket No
• O Dist. mm 121.50
• R Total length mm 232.50

Catalogue information

• Drive type  -Steel
• Waterproof - No
• Oil sealed - No

Replacing

• 063280059010    Magneti Marelli

• 0986023240    Bosch Exchange

• 114216    HC-Cargo

• 190571112    PSH

• 198982    Valeo

• 20130073    AES

• 281000G040    Toyota

• 281000R010    Toyota

• 281000R01084    Toyota

• 281000R021    Toyota

• 281000R030    Toyota

• 281000R03084    Toyota

• 28100OG040    Toyota

• 33265N    WAI

• 33265R    WAI

• 4280003180    Denso

• 4280003181    Denso

• 4280003182    Denso

• 4280003183    Denso

• 4280004920    Denso

• 4280004921    Denso

• 4280004923    Denso

• 4280005710    Denso

• 4280005711    Denso

• 4280005712    Denso

• 4280005713    Denso

• 4280007730    Denso

• 4280007731    Denso

• 4280007732    Denso

• 4280007733    Denso

• 438271    Valeo

• 438494    Valeo

• 458669    Valeo

• 63280059    Magneti Marelli

• 63280059010    Magneti Marelli

• ATS386    ATK

• ATS387    ATK

• DENDSN984    Wood Auto

• DRS0288    Delco Remy

• DSN984    Denso

• F032114216    HC-Cargo

• F042S0H103    Bosch

• HJS1369    HC-Parts

• JS1369    HC-Parts

• LES0510    Lucas

• LRS02265    Lucas

• LRS2265    Lucas

• MSN8059    Magneti Marelli

• OSM11684    Optimum

• RAS31399    Delco Remy

• RNL1369JS    RNL

• RNL4280004920    RNL

• STR70287    Wood Auto

• STRH103    Unipoint

• TRS013    TWA

• TS2263    RNL

• UNISTRH103    Wood Auto

• VAL438271    Wood Auto

• VAL438494    Wood Auto

• WOOSTR70287    Wood Auto


Applications

• LEXUS IS 200d 2010 - 2231cc, 4cyl, 150HP
• LEXUS IS 220d (ALE20) 2005 - 2231cc, 4cyl, 177HP
• TOYOTA AURIS 2.0 D-4D 2007 - 1998cc, 4cyl, 126HP
• TOYOTA AURIS 2.2 D 2007 - 2231cc, 4cyl, 177HP
• TOYOTA AVENSIS 2.0 D-4D 2001 - 2005 1995cc, 4cyl, 116HP
• TOYOTA AVENSIS 2.0 D-4D 2003 - 2008 1995cc, 4cyl, 116HP
• TOYOTA AVENSIS 2.0 D-4D 2006 - 2008 1998cc, 4cyl, 126HP
• TOYOTA AVENSIS 2.0 D-4D 2008 - 1998cc, 4cyl, 126HP
• TOYOTA AVENSIS 2.0 D-4D 2009 - 1998cc, 4cyl, 126HP
• TOYOTA AVENSIS 2.0 D-4D 2011 - 1998cc, 4cyl, 124HP
• TOYOTA AVENSIS 2.2 D-4D 2005 - 2008 2231cc, 4cyl, 150HP
• TOYOTA AVENSIS 2.2 D-4D 2008 - 2231cc, 4cyl, 150HP
• TOYOTA AVENSIS 2.2 D-4D 2008 - 2231cc, 4cyl, 177HP
• TOYOTA AVENSIS 2.2 D-4D 2009 - 2231cc, 4cyl, 150HP
• TOYOTA AVENSIS 2.2 D-4D 2009 - 2231cc, 4cyl, 177HP
• TOYOTA AVENSIS 2.2 D-CAT 2005 - 2008 2231cc, 4cyl, 177HP
• TOYOTA COROLLA 2.0 D-4D 2000 - 2001 1995cc, 4cyl, 90HP
• TOYOTA COROLLA 2.0 D-4D 2000 - 2001 1995cc, 4cyl, 110HP
• TOYOTA COROLLA 2.0 D-4D 2000 - 2002 1995cc, 4cyl, 90HP
• TOYOTA COROLLA 2.0 D-4D 2001 - 2004 1995cc, 4cyl, 116HP
• TOYOTA COROLLA 2.0 D-4D 2002 - 2004 1995cc, 4cyl, 90HP
• TOYOTA COROLLA 2.0 D-4D 2002 - 2006 1995cc, 4cyl, 90HP
• TOYOTA COROLLA 2.0 D-4D 2002 - 2006 1995cc, 4cyl, 110HP
• TOYOTA COROLLA 2.0 D-4D 2002 - 2007 1995cc, 4cyl, 90HP
• TOYOTA COROLLA 2.0 D-4D 2003 - 2007 1995cc, 4cyl, 116HP
• TOYOTA COROLLA 2.0 D-4D 2004 - 2007 1995cc, 4cyl, 116HP
• TOYOTA COROLLA 2.0 D-4D 2004 - 2009 1995cc, 4cyl, 116HP
• TOYOTA COROLLA 2.0 D-4D 2007 - 1998cc, 4cyl, 126HP
• TOYOTA COROLLA 2.2 D-4D 2005 - 2009 2231cc, 4cyl, 136HP
• TOYOTA COROLLA 2.2 D-4D 2005 - 2009 2231cc, 4cyl, 177HP
• TOYOTA COROLLA 2.2 D-4D 2006 - 2231cc, 4cyl, 177HP
• TOYOTA RAV 4 2.2 D-4D 2008 - 2231cc, 4cyl, 150HP
• TOYOTA RAV 4 2.2 D-4D 4WD 2006 - 2231cc, 4cyl, 136HP
• TOYOTA RAV 4 2.2 D-4D 4WD 2008 - 2231cc, 4cyl, 150HP
• TOYOTA RAV 4 2.2 D-CAT 4WD 2006 - 2231cc, 4cyl, 177HP
• TOYOTA VERSO 2.0 D-4D 2009 - 1998cc, 4cyl, 126HP
• TOYOTA VERSO 2.0 D-4D 2012 - 1998cc, 4cyl, 124HP
• TOYOTA VERSO 2.2 D-4D 2009 - 2231cc, 4cyl, 150HP
• TOYOTA VERSO 2.2 D-CAT 2009 - 2231cc, 4cyl, 177HP

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
