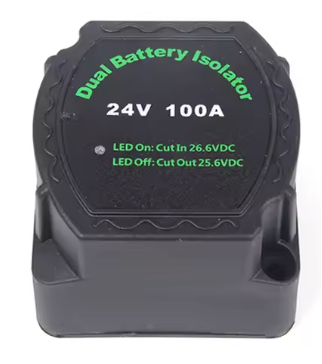

24V 100A Voltage Sensitive Relay (VSR) Smart HD Split Charge Dual Battery Isolator MURE SCR24

24V 100A Voltage Sensitive Relay (VSR) Smart HD Split Charge Dual Battery Isolator MURE

SCR24

Product Details:

• Type: Advanced Voltage Sensitive Relay (VSR) specifically designed for dual battery charging systems.
• Voltage: Engineered specifically for 24V DC electrical systems.
• Current Rating: High-performance 100A continuous rating to handle heavy electrical loads.
• Intelligent Charging: Automatically charges both the primary start battery bank and auxiliary battery bank simultaneously when the engine is running.
• Cut-In Voltage: Automatically engages at 26.6V DC (with LED status indicator).
• Drop-Out Voltage: Automatically disconnects at 25.6V DC to isolate battery banks.
• Battery Protection: Eliminates the risk of draining the primary starter battery, ensuring reliable engine starting every time.
• Equipment Safeguard: Protects sensitive electronic equipment connected to the secondary battery from damaging voltage spikes during engine ignition.
• Durable & Compact Build: ISO9001 certified, vibration-resistant composite housing designed for tight commercial and heavy-duty engine bays.
• Dimensions: Approx. 68mm (L) x 68mm (W) x 52mm (H).

Application:

• Ideal for 24V commercial vehicles, heavy trucks, lorries, coaches, buses, 24V marine vessels, agricultural plant machinery, and off-grid power systems.
