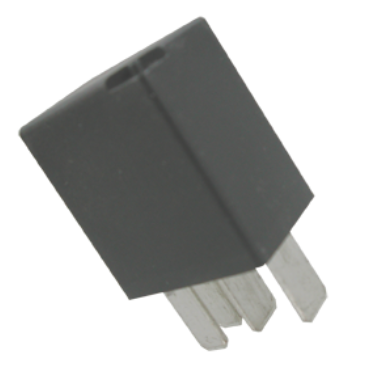

24V 15A / 30A Changeover 5 Pin Micro Relay With Resistor Protection RLY1314 CurrentCare 13-014

24V 15A / 30A Changeover 5 Pin Micro Relay With Resistor Protection RLY1314 CurrentCare 13-014

Vendor:Current Care

Availability: Low stock: 10 left

Product Type:13-014

Product Indentifier:7426994765757

£6.92 inc VAT £5.77 ex VAT
£11.99 £6.92 inc VAT £5.77 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

24V 15A / 30A Change Over 5 Pin Micro Relay With Resistor Protection

RLY1314

13-014

Details and description

Voltage 24, Amp 15/30, Terminals 5, Type 5 Pin changeover Micro Relay with Resistor protection

Physical information

  • Terminals 4
  • Type 4 Pin normally open contact Micro Relay with Diode protection
  • Terminal Sizes 3 x 4.8mm, 2 x 6.3mm

Electrical information

  • Voltage 24
  • Continuous Load - Open: 20A Closed / Switched: 15A
  • Peak Load - open: 40A Closed / Switched: 30A
