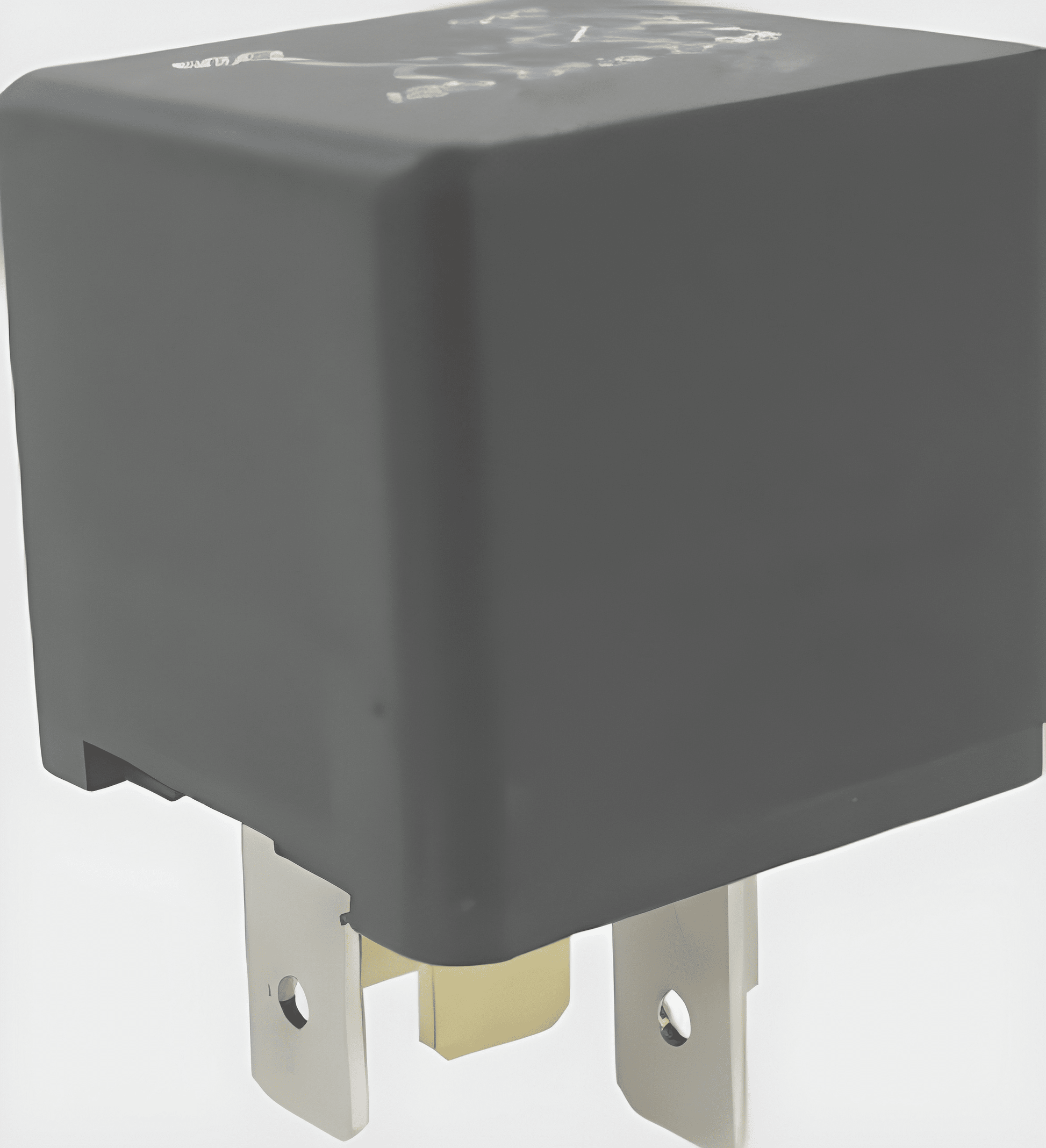

• MURE black 24V 15A changeover mini relay with metal terminal pins

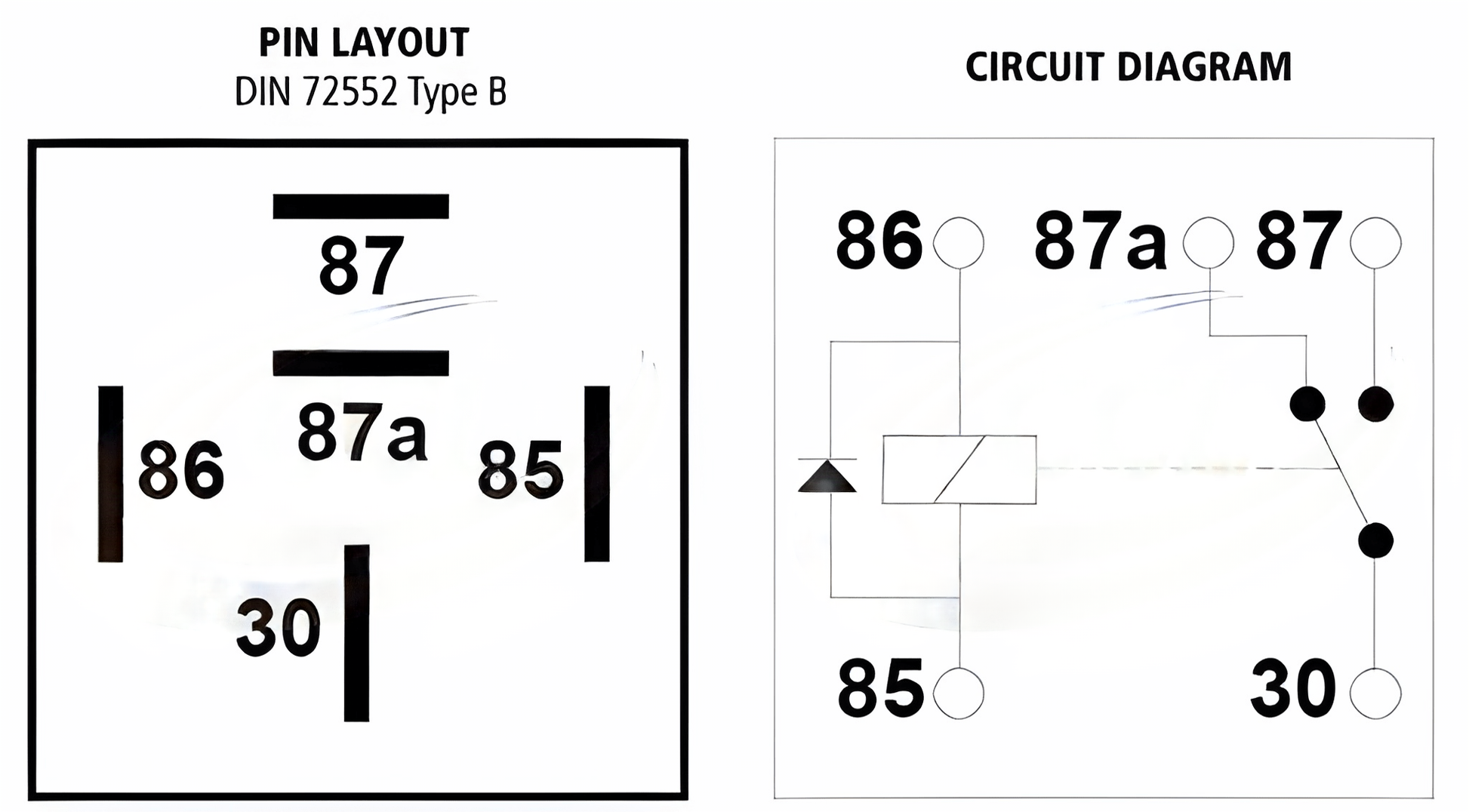

  • DIN 72552 Type B pin layout and diode circuit diagram for a 24V 15A changeover mini relay
1 2

24V 15A Changeover 5 Pin Mini Relay (Diode Protection) CurrentCare 02-019

24V 15A Changeover 5 Pin Mini Relay (Diode Protection) CurrentCare 02-019

Vendor:Current Care

Availability: Low stock: 7 left

Product Type:02-019

Product Indentifier:7426994758452

£6.12 inc VAT £5.10 ex VAT
£8.39 £6.12 inc VAT £5.10 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

24V 15A Changeover 5 Pin Mini Relay (Diode Protection) Current Care

02-019

RLY1019

This compact 24V change-over mini relay featuring diode protection is ideal for commercial vehicle and industrial electrical systems. It offers a change over contact configuration, built-in diode suppression to protect against voltage spikes, and a durable moulded plastic bracket for secure mounting. Perfect for trailers, HGVs, plant machinery and other 24V applications demanding reliable switching.

Key Features:

  • Type: Change Over (CO) mini relay with diode protection
  • Voltage: 24 V
  • Open Load: 20A
  • Closed / Switched: 15 A
  • Open Load: 40A
  • Closed / Switched: 30A
  • Bracket Type: None
  • Terminal Size: 5 × 6.3mm Spade Terminals
      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
