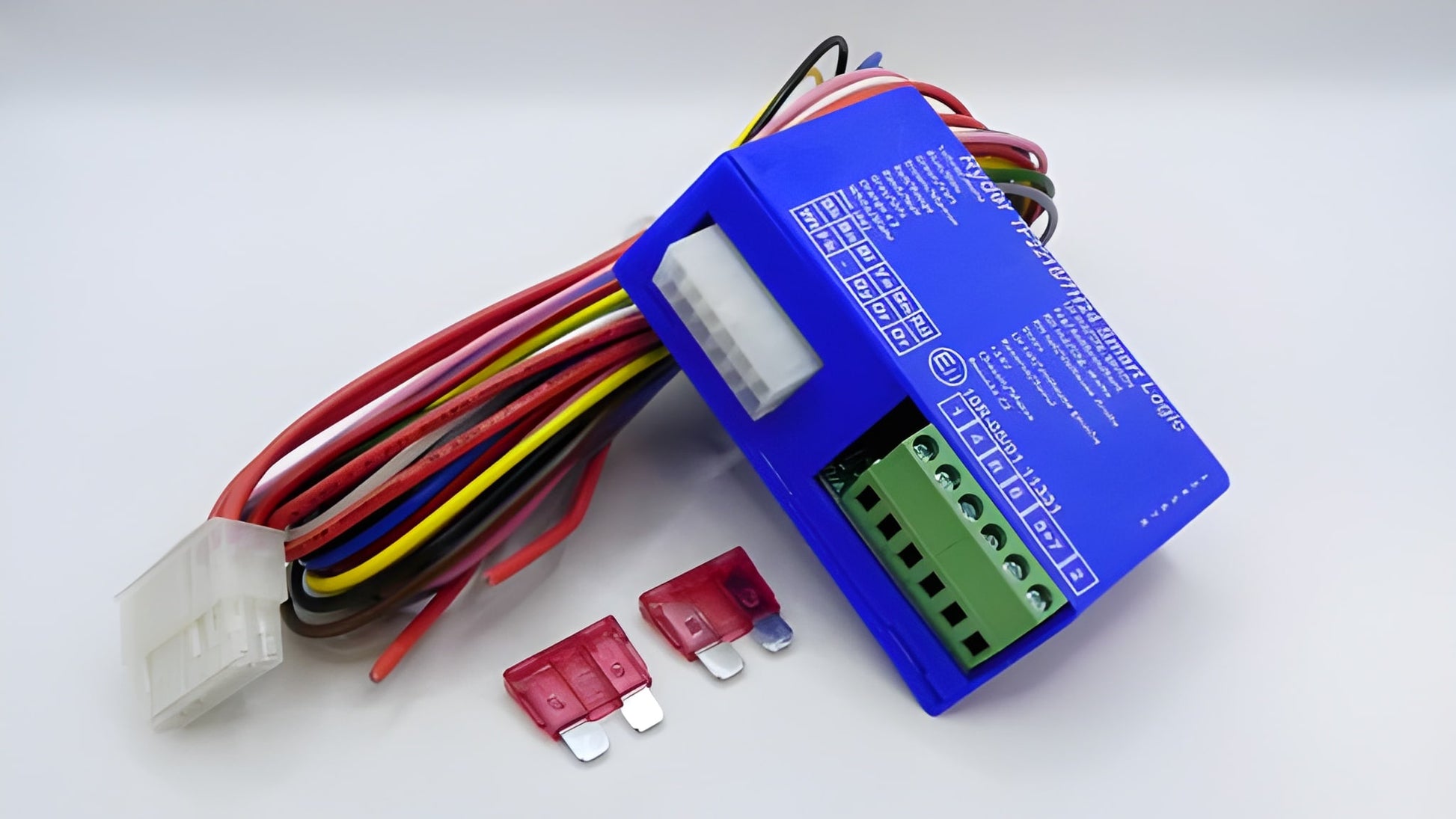

24V Smart Logic 7 Way Bypass Plug-In Loom 1M Relay Towing Towbar Ryder TF2218-7H24

24V Smart Logic 7 Way Bypass Plug-In Loom 1M Relay Towing Towbar

TF2218-7H24

Seamlessly integrate the SmartLogic Bypass Module for 24 V vehicles towing 24 V trailers. Designed specifically for 24 V input and output, this 1 m plug-in loom ensures the trailer’s lighting works safely and reliably without affecting the towing vehicle’s lighting circuit.

Key Features

• Smart 7-way bypass module for 24V vehicles towing 24V trailers.
• Controls trailer road lights putting no extra load on the car's rear light circuits.
• Compatible with 24 V vehicles and 24 V trailers only.
• Plug-in 1 m loom for straightforward installation.
• Built-in audible buzzer to confirm trailer indicator operation.
• Ideal for modern commercial vehicles with complex lighting control.

Ryder SmartLogic relays are quick and easy to fit, and very cost-effective.

• They bypass all the vehicle’s bulb-failure warning systems.
• They protect the vehicle against damage from the trailer wiring
• They are compatible with LED trailer lights
• They use smart logic to deal with cars that have one bulb handling two functions (e.g. brake lights and sidelights sharing the same bulbs).
• They have two fuses to protect the relay against short circuits in the trailer wiring
• They are totally invisible to the car so the car does not detect them
• The signal wires to the car’s rear lighting loom are protected so that only a milliamp can pass from the car to the relay and nothing can pass from the relay to the car.
• All the power to switch the relays and to operate the trailer lights comes directly from the vehicle’s fusebox or battery.
• They monitor the trailer flashers with both a built-in buzzer and a wire for a remote sounder or warning lamp.
• The relays are fully protected against electrical "spikes" and other electrical hazards
• They are type-approved for EMC compliance
