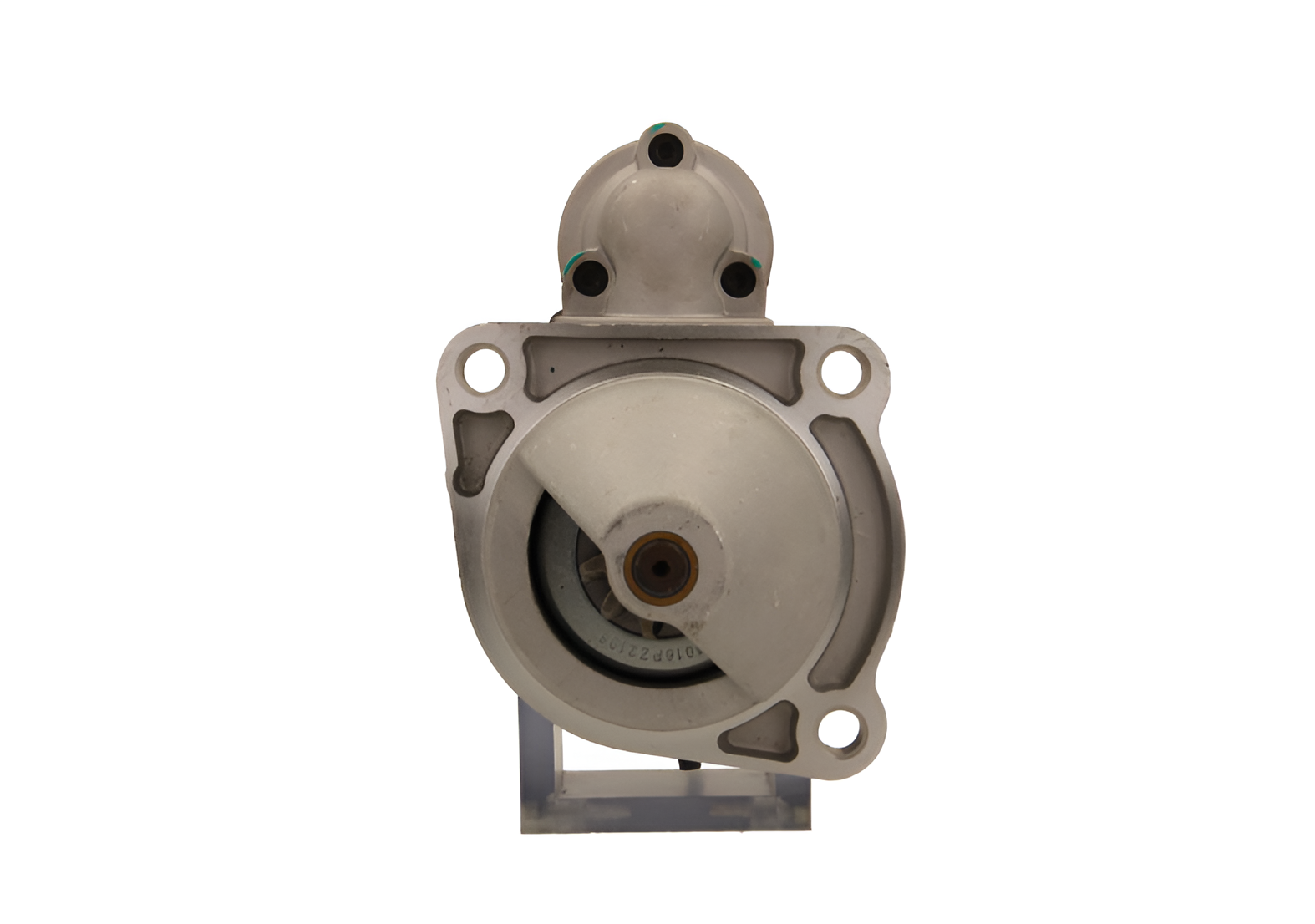

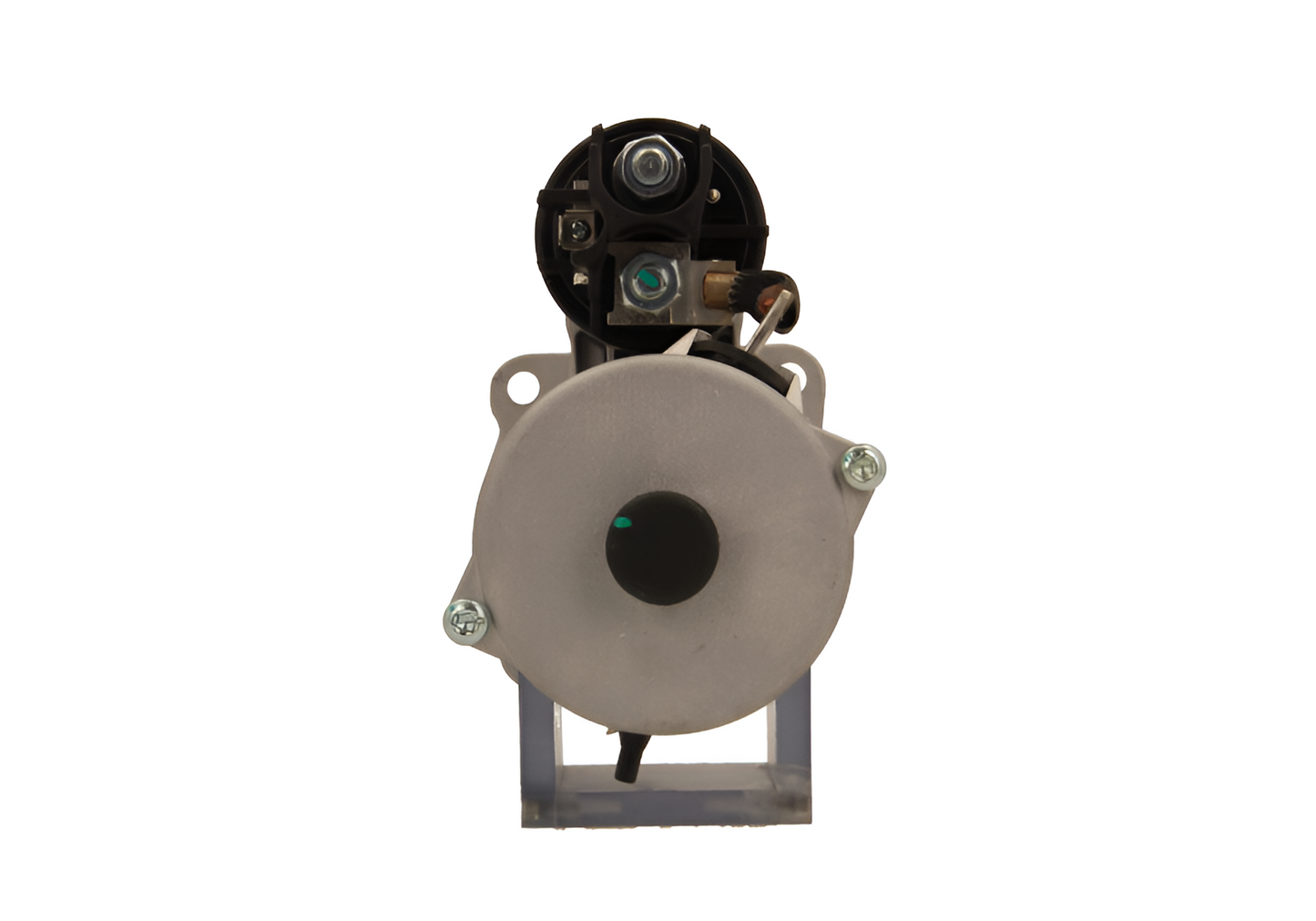

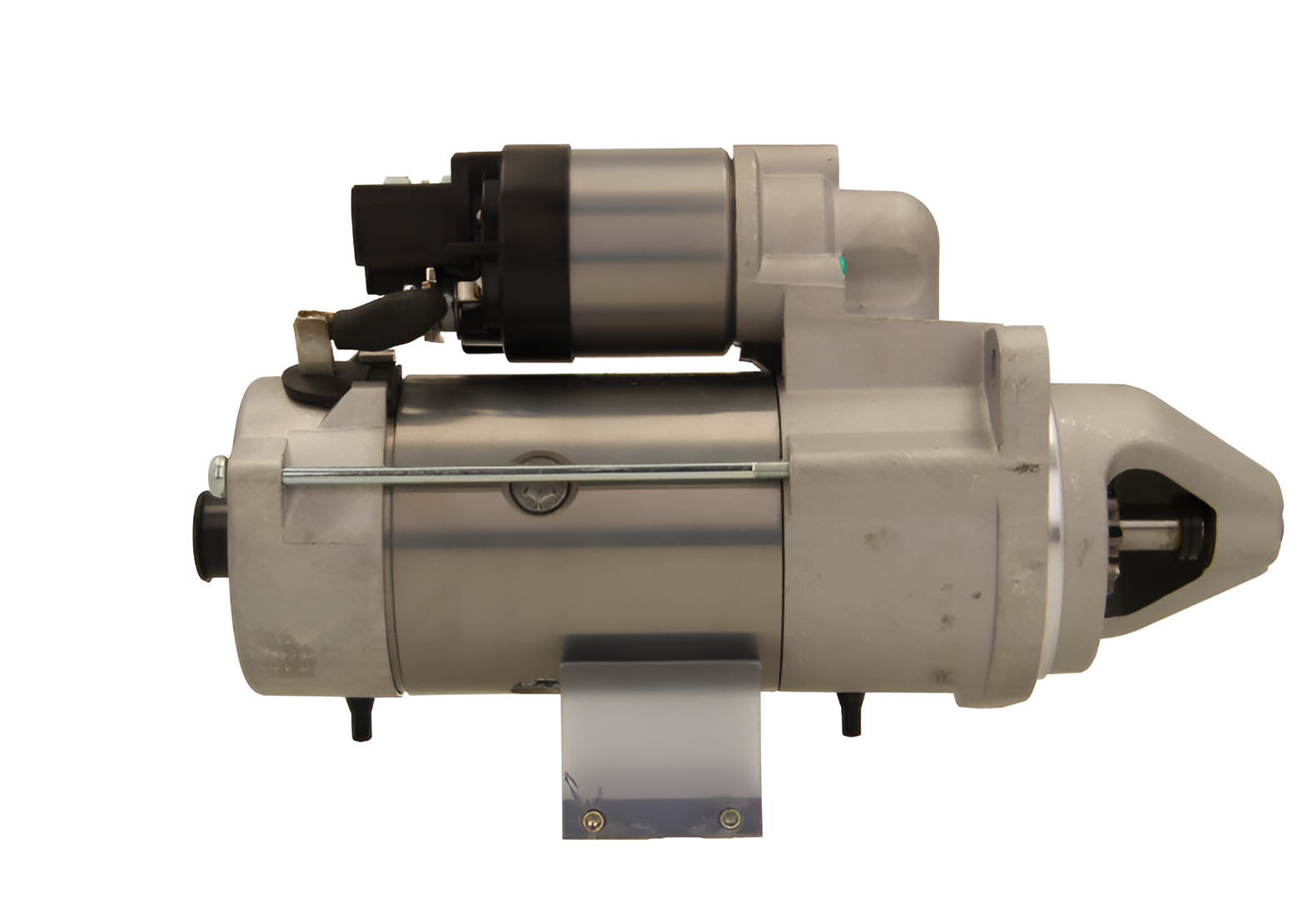

12v 3KW Starter Motor Fits: Iveco, New Holland, Case 114021 / STR50290
114021
STR50290
Electrical specifications
Voltage 12
kW 3.0

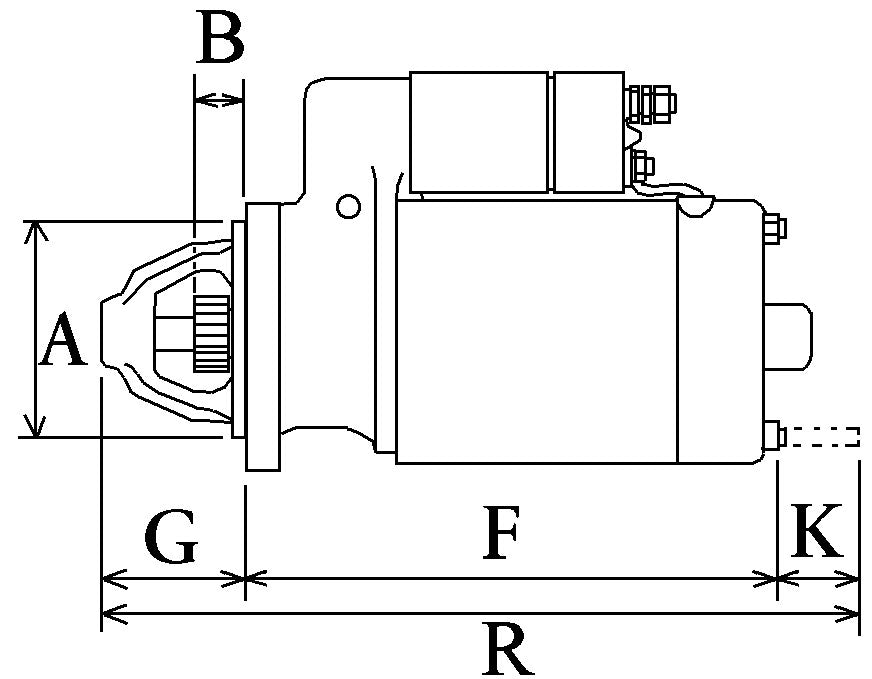

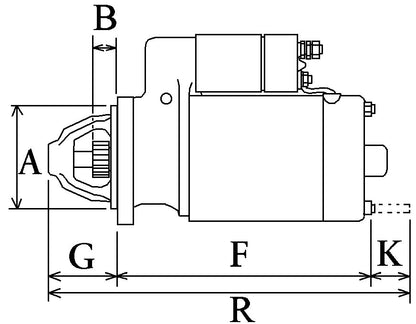

Physical specifications
A Mount. flange 89.00
B Drive dist. 27.00

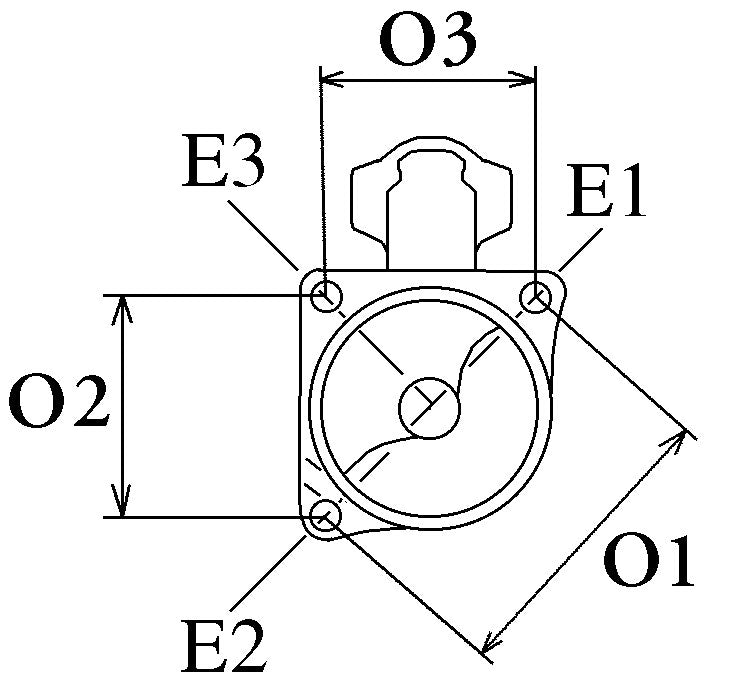

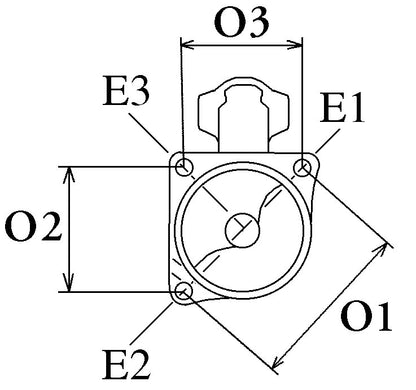

E Mount. hole 3 mm 11.00
E Mount. hole 2 mm 11.00
E Mount. hole 1 mm 11.00
F Dist./back 228.50
G Dist./front 72.50
H No./teeth 10
I B+ M10
L Terminal 50 6.30
N Gear type GR
O Dist. 2 127.00
O Dist. 3 90.00
O Dist. mm 90.00
P Rotation CW
R Total length mm 314.00
No./mount. holes 3 (0)
Additional information
Drive type Steel
Prod. info BN
Waterproof No
Oil sealed No
Replacing
0001230020 Bosch
0001230021 Bosch
0001230026 Bosch
0001250001 Bosch
0001250002 Bosch
0001262019 Bosch
0001262020 Bosch
0001262021 Bosch
0001262022 Bosch
0986026900 Bosch Exchange
114021 HC-Cargo
12130080 AES
19084604 Delco Remy
1986S10036 Bosch
19980N WAI
2852178 Case
323019050 New Holland
394677 Carraro
47132037 New Holland
500546103 PSH
504031929 Iveco
504357109 Iveco
50435711 Iveco
504357110 Iveco
5801577137 Iveco
8094570 Iveco
84208903 New Holland
BOS0001250002 Wood Auto
DRS0026 Delco Remy
F032114021 HC-Cargo
LES0391 Lucas
LRS02407 Lucas
LRS2407 Lucas
MS632 Mahle
MS637 Mahle
RNL230020 RNL
RNL230021 RNL
SEG0001250002 Wood Auto
STR50290 Wood Auto
STR50561 Wood Auto
STR50579 Wood Auto
TS6224 Dixie
WOOSTR50290 Wood Auto
WOOSTR50561 Wood Auto
WOOSTR50579 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
