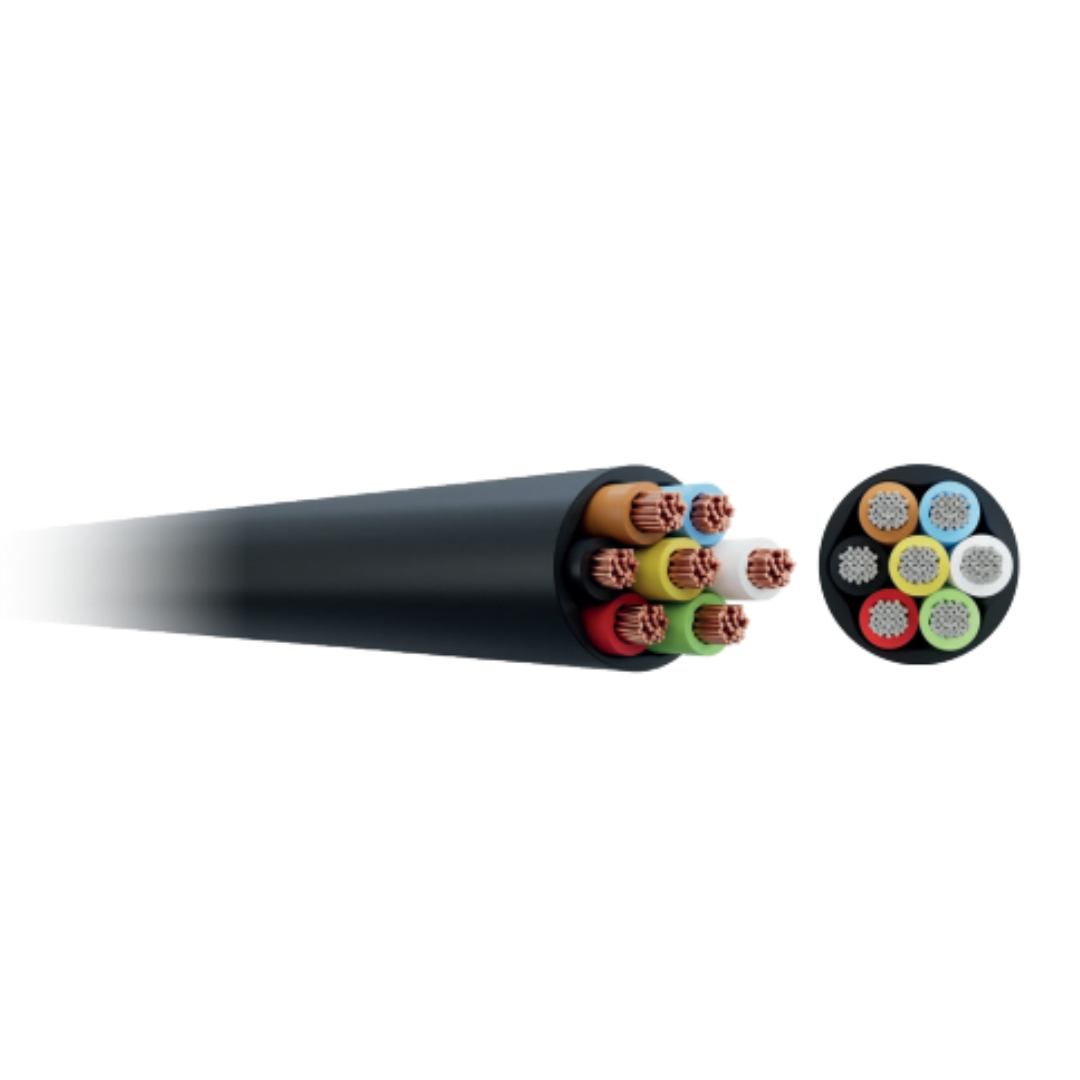

30M Reel 7 Core Cable 6+1 PVC 12V 24V 8.75a x 17.5a Replaces Automarine 999.30

7 Core Cable Reel 6+1 PVC 8.75amps x 17.5amp 30M Auto Marine

999.30

999.30

• Stranded copper conductors.
• The outer insulation is black pvc.
• Brand new sealed cable.
• High temperature 7 core auto cables to ISO 6722 Class B.
• Manufactured in accordance with BS6862 Part 1 1971, where applicable.
• Resistant to petrol, lubricating oils and diluted acids.
• Manufactured in the UK.

7 Core Cable, 6+1 PVC 12V 24V 8.75a x 17.5a

• Core Type 7 Core Cable

• Maximum Cable Diameter 10.2mm
• Colour Black
• Length 30m
• Note 1 Core: Brown, Green, Red, White, Yellow, Black, Blue
• Nominal current rating 6 x 8.75 1 x 17.5
• Conductor Cross Section (mm²) 6 x 1.0 1 x 2.0
• Conductor Specification (mm) 6 x 14/0.30 1 x 28/0.30 (White)

Will fit

• Motorbike
• Car
• Motorhome
• Boat
• Tractor
• Lawnmower

UNIVERSAL
Below we have compiled a guide to help you decide which cable you need for your particular application
As a rule on a 12 volt system each Amp will allow you to run 12 watts, so the table shows amp to wattage conversion
Also we would advise for you to allow a little bit higher amperage from what you actually need to allow for power spikes etc. just to be on the safe side.
All our cable is of the highest quality & manufactured in the UK

1 amp = 12 watts
2 amp = 24 watts
3 amp = 36 watts
4 amp = 48 watts
5 amp = 60 watts
6 amp = 72 watts
7 amp = 84 watts
8 amp = 96 watts
9 amp = 108 watts
10 amp = 120 watts
11 amp = 132 watts
12 amp = 144 watts
13 amp = 156 watts
14 amp = 168 watts
15 amp = 180 watt
16 amp = 192 watts
17 amp = 204 watt
18 amp = 216 watts
19 amp = 228 watts
20 amp = 240 watts
21 amp = 252 watts
22 amp = 264 watts
23 amp = 276 watts
24 amp = 288 watts
25 amp = 300 watts
26 amp = 312 watts
27 amp = 324 watts
28 amp = 336 watts
29 amp = 348 watts
30 amp = 360 watts
