4 Pin On Off Relay Switch 6.3Mm With Bracket 24V 20A Robinson
ED008

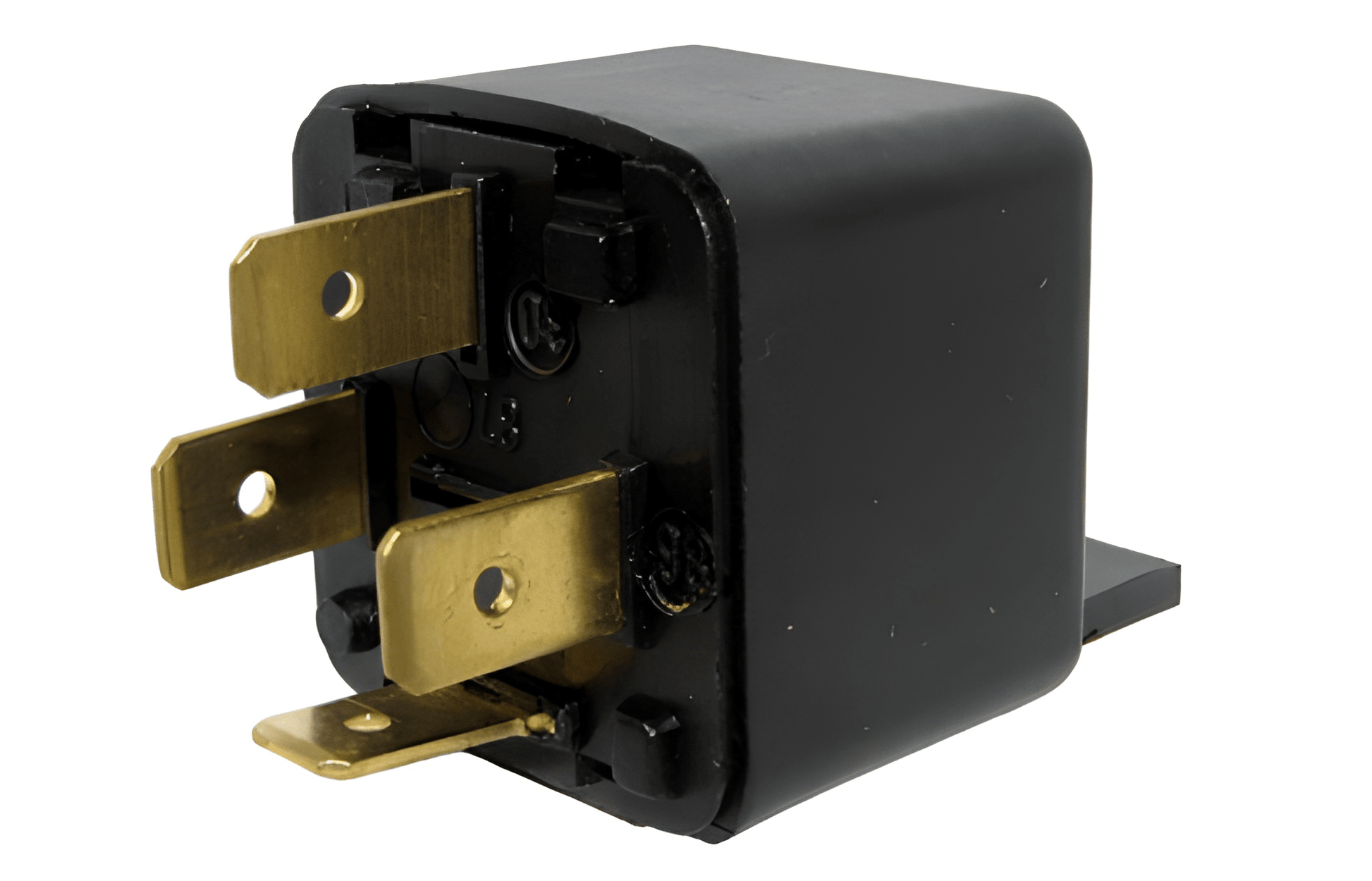

This is a 24V 20A 4 Pin Relay with a plastic mounting bracket. Designed for reliable On/Off operation, it features normally open contacts and is suitable for a wide range of automotive and auxiliary applications.
Key Features:
- Type: On/Off 4 Pin Relay
- Contacts: Normally open
- Current Rating: 20A @ 24V
- Terminals: 6.3mm
- Mounting: Plastic bracket with 5mm hole
Technical Specifications:
- Main Body Dimensions: 28mm (D) x 28mm (W) x 25.4mm (H)
- Overall Dimensions (including bracket and terminals): 31mm (D) x 28mm (W) x 52mm (H)
Another Quality Product from Robinson
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
