4 Pin Split Charge Relay High Performance Switch 12V 200A Wood Auto
RLY1077 02-064
160923
This is a 12V high-performance heavy duty relay switch designed for demanding automotive and auxiliary electrical applications. Ideal for systems requiring reliable high-current switching.
Key Features:
- Voltage: 12V
- Amperage: 200A
- Terminals: 4
- Type: High performance relay
- Bracket: Included
Dimensions:

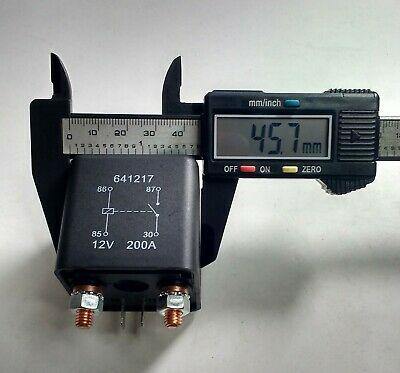

- Width: 45.5mm
- Height: 45mm

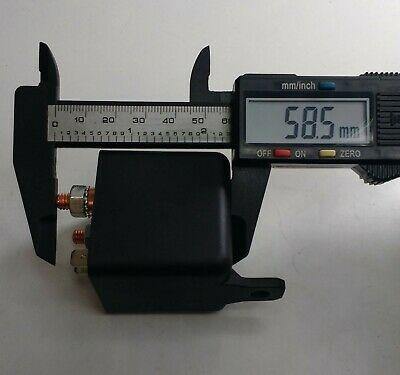

- Overall Height (inc bracket and terminals): 77mm

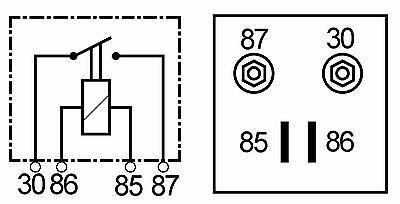

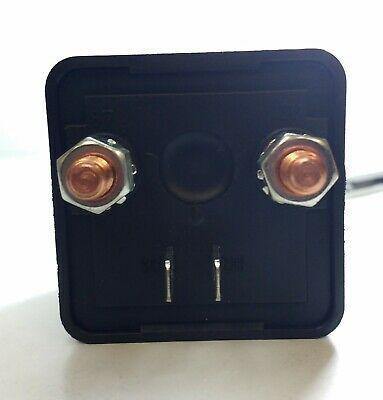

Terminal Configuration:
- 2 x 6.3mm flat terminals
- 2 x M6 screw terminals
Diagram Reference: 1 R477
Another High-Quality Wood Auto Product
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
