NEW 24v RELAY, REPLACES LUCAS TYPE SRB601, SRB632
RLY1048
Colour of relay may be different to picture
Replaces Lucas Type 33RA SRB601 SRB632, 24V Normally open Relay.
- 40A Capacity.
- 4 Terminals.

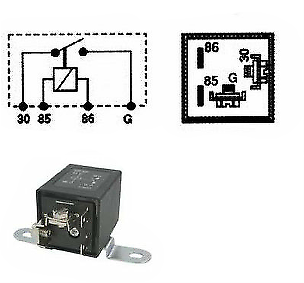

- 85 & 86 are the coil connections (6.3mm blade).
- 30, feed in and G, load out are screw connections.
- When energised terminals 30 and G are connected.
Can be used as a split charge relay or for other applications.
- CROSS REFERENCE
- PRESTOLITE 6211651
- PRESTOLITE 6211651A
